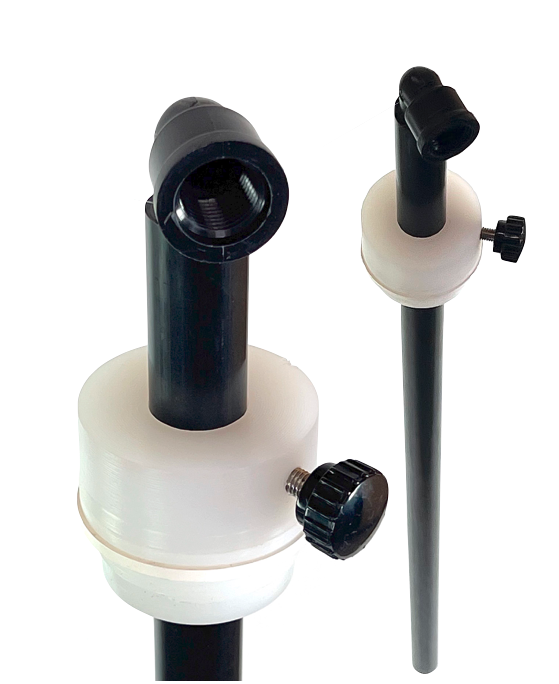

The DRUM SUCTION PIPE draws chemical from the bottom of your drum to eliminate pumping air.
A BETTER WAY TO FEED CHEMICALS
- The rigid polypropylene pipe can be adjusted so it always reaches the bottom of your drum for perfect flow without pumps becoming air locked.
- Drums are pumped out nearly completely which will reducing wasted residual chemical.
- There is a built-in suction screen to keep particles/debris/crystals out of your pump. This screen is removable and replaceable.
- Included compression fitting accommodates any tubing size from 1/4″ to 3/4″ tubing O.D.
- Optional check valve available.
- Adjustable depth
The Drum Suction Pipe also called a pickup tube, draw tube, drum wand is the best way to extract chemicals from drums because they solve the problems with dangling a plastic tubing into a drum. Often plastic tubing is inserted in a drum and it either it doesn’t reach down to the liquid at the bottom of the drum, or it did at one time but then lost its postion because they are usually not secured very well. Or the tubing can lose its plasticizers over time and cracks, or curls up. Either way the result is the same: your pump draws air instead of chemicals. Of course you get no warning when this happens.

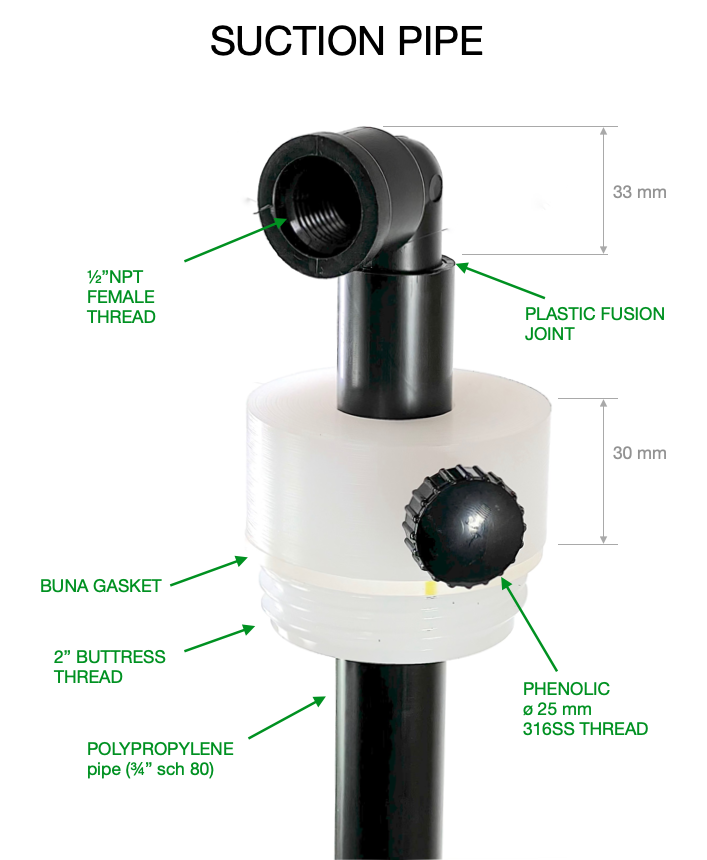

We offer different suction pipes built specifically for the job of drawing chemicals from drums. Choice of 2″NPT thread (most common) or 2″ Buttress thread (the coarse thread which requires fewer turns to screw in) Further discussion on drum threads here.
CHECK VALVE
A check valve is a common accessory for our suction pipes. It eliminates re-priming the pump when transferring the suction pipe to a new drum. This is not a must for self-priming pumps like bellows or peristaltic, but even for these pumps itstops the residue of chemical in the pipe from backwashing into the empty drum. more info
MODELS

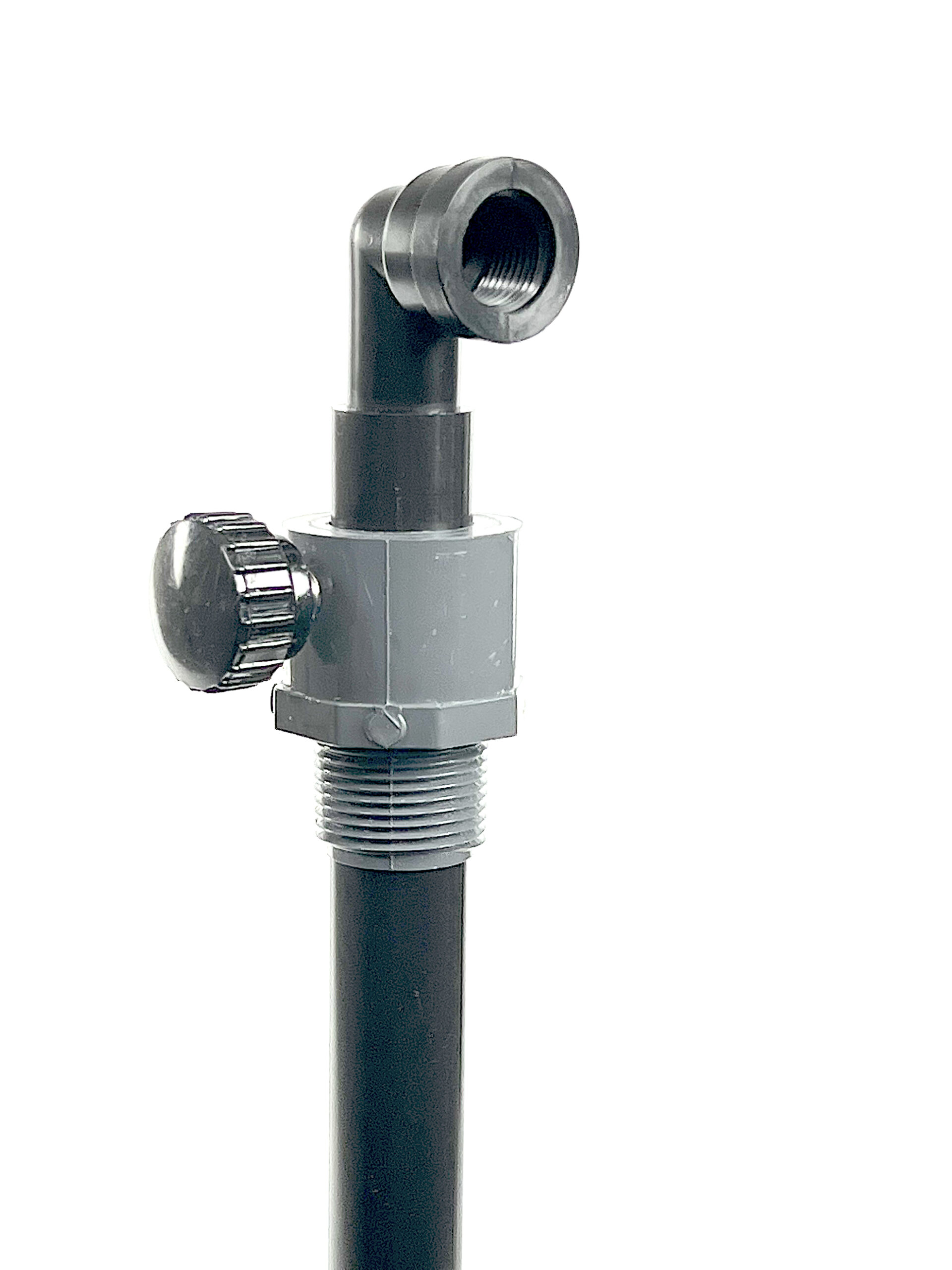

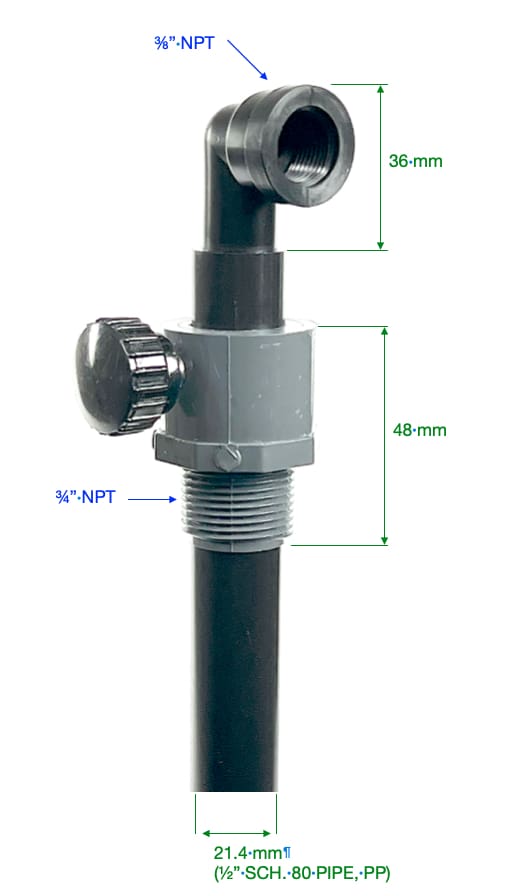

The models that fit into 2 inch bungs (DP and DB models) use a 3/4″ pipe which allows a larger foot-screen area at the bottom. The 3/4″ NPS mount (DK) uses a 1/2″ pipe which is the maximum that can fit into a 3/4″ NPT thread of the drum.
MATERIALS
If your application requires material with higher chemical resistance suh as PVDF or Stainless Steel, please contact us for a quote.
click here for operating instructions.
- Pipe Working Depth……………………… 35 inches [890 mm]
- Pipe diameter………………………………3/4″ , sch 80
- Pipe O.D.……………………………………72 mm [1.06″]
- Pipe I.D.…………………………………… 18 mm [0.71″]
- Pipe material ……………………………… polypropylene, chemical grade
- Flowmeter ball …………………………… silica glass 1/4 inch diameter
- Flowmeter material.……………………… acrylic
- Weight………………………………………181g ( for the 55 gallon size)
- Drum mounting plug material…………… Polyethylene
- Bung mounting thread…………………… 2″ N.P.S. or 2″ Buttress
- DB-P Plug Gasket material.………………Buna rubber
- Thumbscrew thread……………………… 304 stainless steel, M8
- Thumbscrew head…………………………phenolic resin, ø25 mm
- Thread on elbow………………………… ½” NPT
- Bottom screen thread.……………………1/2″ NPT
- Bottom foot screen mesh…………………14×14 mesh size, polypropylene. [1400µ] conversion chart
Some Chemicals Commonly Used With the model D-55G:
- Aqueous Ammonia (conc.)
- Aqueous solutions to 100°C
- Hydrochloric acid (conc.)
- Nitric acid (30%)
- Oils (including waste oils)
- Potassium carbonate (40%)
- Sodium hydroxide (50%)
- Sulfuric acid 70%
- Sodium Hypochlorite
The following are not compatible with the acrylic flowmeter:
- Sulfuric Acid 90%+
- Lactic acid
- Peracetic acid (conc.)
- Ketones
3/4 INCH NPT MOUNT – POLYPROPYLENE
(3/4″NPT adjustable collar. 1/2″ PP pipe. No flowmeter available)
DK-P-55G DK-P-15/30G DK-P-5G
2 INCH BUNG MOUNT
VALID EXAMPLES
DP (2″ NPS thread)

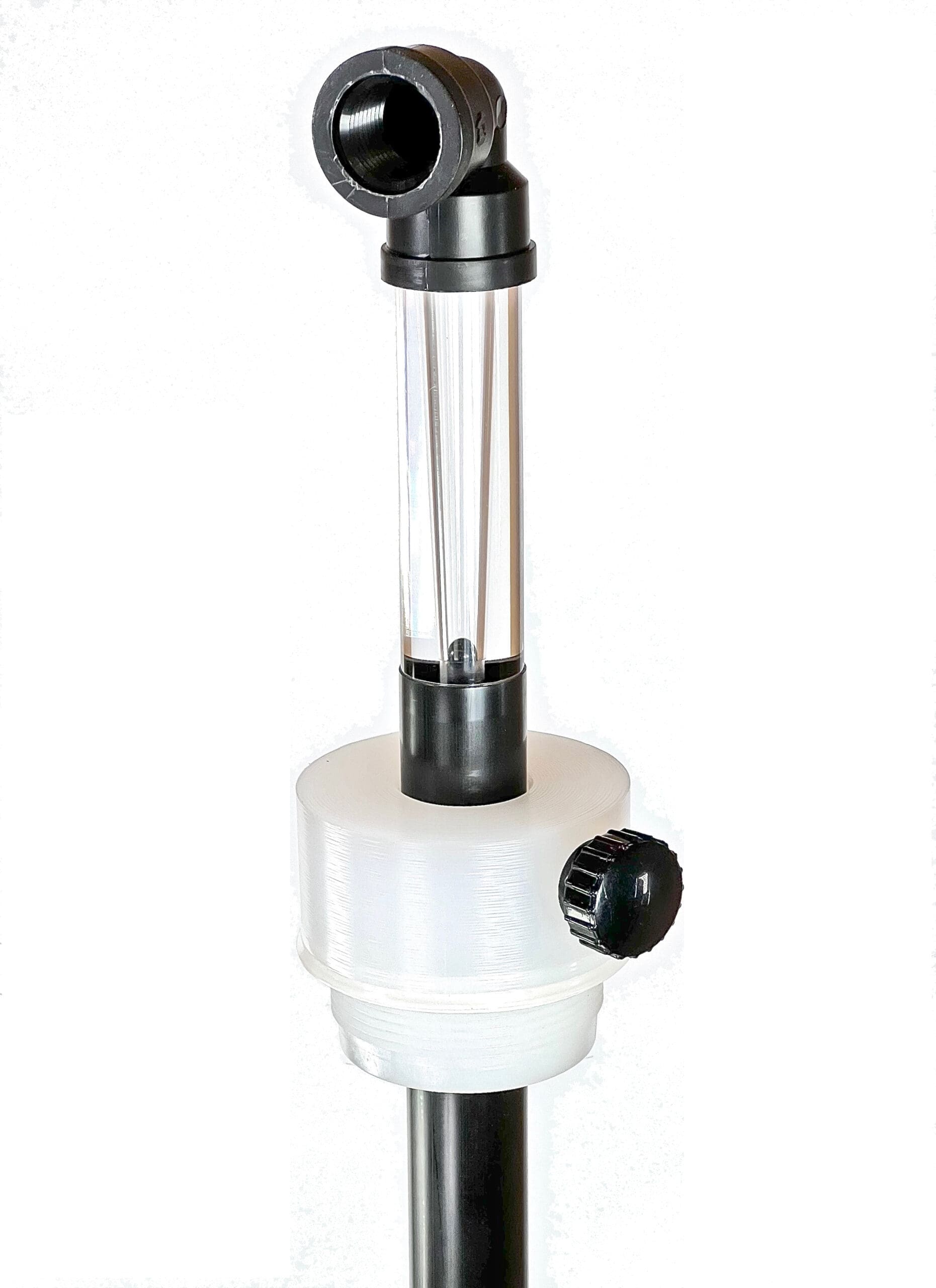

DP-P-55G DP-P-15/30G DP-P-5G (polypropylene, with flowmeter)
DPX-P-55G DPX-P-15/30G DPX-P-5G (polypropylene, without flowmeter)
DPX-K-55G DPX-K-55G DPX-K-5G (Kynar, no flowmeter option)
DB (2″ Buttress thread)
DB-P-55G DB-P-15/30G DB-P-5G (with flowmeter)
DBX-P-55G DBX-P-15/30G DBX-P-5G (polypropylene, without flowmeter)
DBX-K-55G DBX-K-15/30G DBX-K-5G (Kynar, no flowmeter option)
Order Here
With flowmeter
Polypropylene
2 inch NPS or Buttress
[DB-P and DP-P]
No flowmeter
No flowmeterPolypropylene
2 inch NPS or Buttress
[DBX-P]
[DPX-P]
PVDF (Kynar)
No flowmeter
Choose mounting
[DP-K]
[DB-K]
3/4 inch NPT
Polypro
No flowmeter.
[DK-P]
Options
Check Valve
Optional check valve for use with diaphragm pumps, it stops the liquid from draining out of the feeding pipe during transfer to a new container. Eliminates re-priming pump.
[CV-V or CV-E or CV-K]
