INDUSTRIAL TIMER counts up or down and alarms. Large display, stack light, and power relay output.
Industrial Process Timer …
- Time is easily adjustable from 1 second to 100 hours.
- Easy installation! Just mount in place with screws.
- Waterproof proof and corrosion proof. Built for rugged industrial service.
- Loud buzzer. 103 dB @ 2 ft.
- Easy to set time with 3 buttons like a kitchen timer.
- Large digital display with 30 mm digits.
- 15A Relay output included.

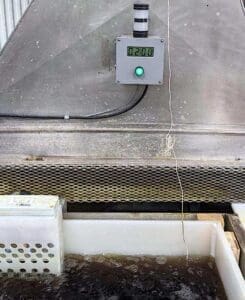

At home in all sorts of factory settings, this industrial timer features easy installation, just mount it and plug it in. The front button starts and stops the timing cycle. The time is set easily with the intuitive pushbutton switches located.
The time counts down from preset time. (or counts up if starting from zero) The green stack light LED illuminates while timing. At the end of the time cycle, the alarm sounds and the red LED illuminates. For the three-light model T6-3, the amber light can be set to comes on before the end of the cycle as an early warning.
Many different modes available summarized below. See the “modes chart” in the documents tab below for complete description of each.
- Mode 1 counts down from the set time. Early warning on LED1. (amber LED) Cycle can be cancelled by holding the start button. If time is set to zero then it counts up.
- Mode 2 like mode 1 but does not allow cancellation.
- Mode 3 is for triggering the time cycle mechanically with a contact close (like a proximity switch) that remains closed throughout the countdown. video here
- Mode 4 allows pausing and re-starting the cycle until the time accumulates to set value.
- Mode 5 cycle stops automatically at the end of countdown. video here
- Mode 6 provides an early warning on the beacon LED instead of the front button.
- Mode 7 is a guard duty that requires the start button to pressed continually or else an alarm sounds (cycle repeats indefinitely).
- Mode 8 is especially for spray rinses in plating operations. More details here. Also, a video of an installation here
- Mode 9 is an on-delay. video link here
- Mode 10 is a machine hours totalizer countdown. It can be triggered either by presence of power or a contact close. Video link here
- Mode 11 is a repeating interval cycle. Video link here
- Counts down anywhere between 1 second to 100 hours.
- Front button indicates power present.
- Waterproof rating IP65.
- Large display measures 90 mm x 35 mm. (this is substantially larger than the T5/T5 timers)
- Piggyback plug output with 10A relay.

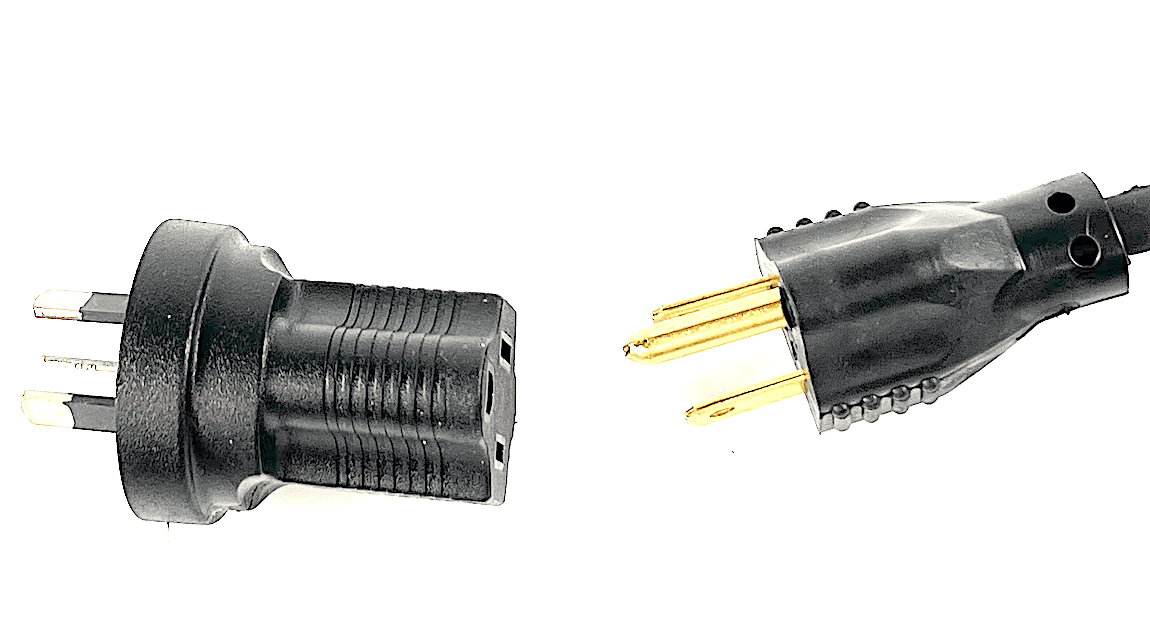

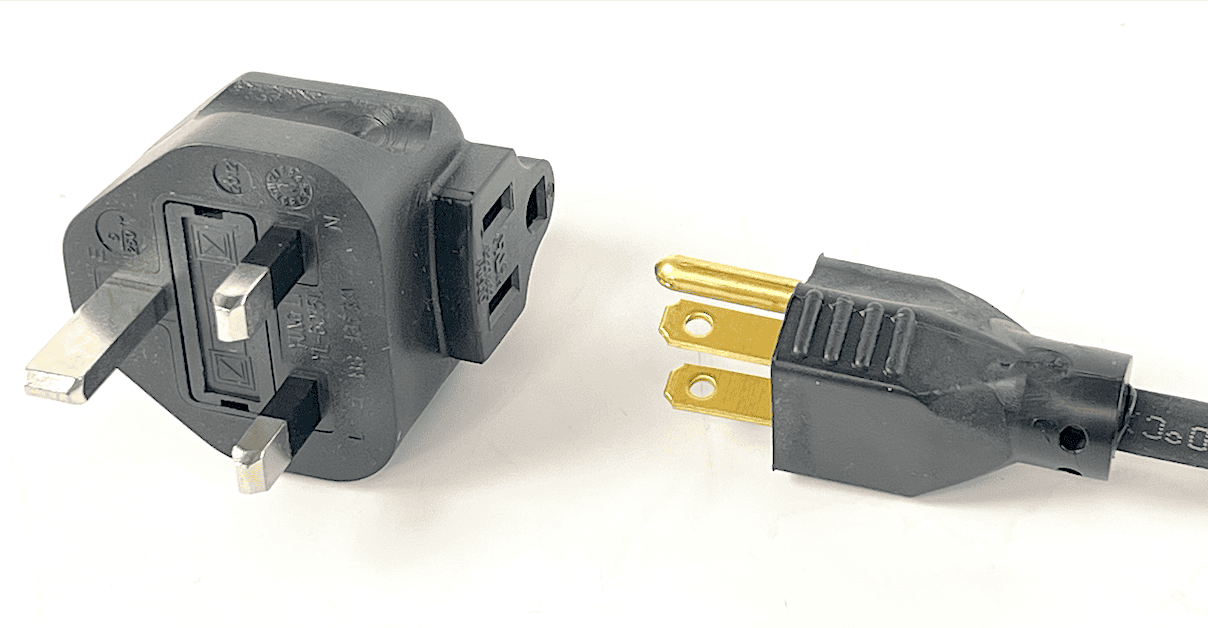

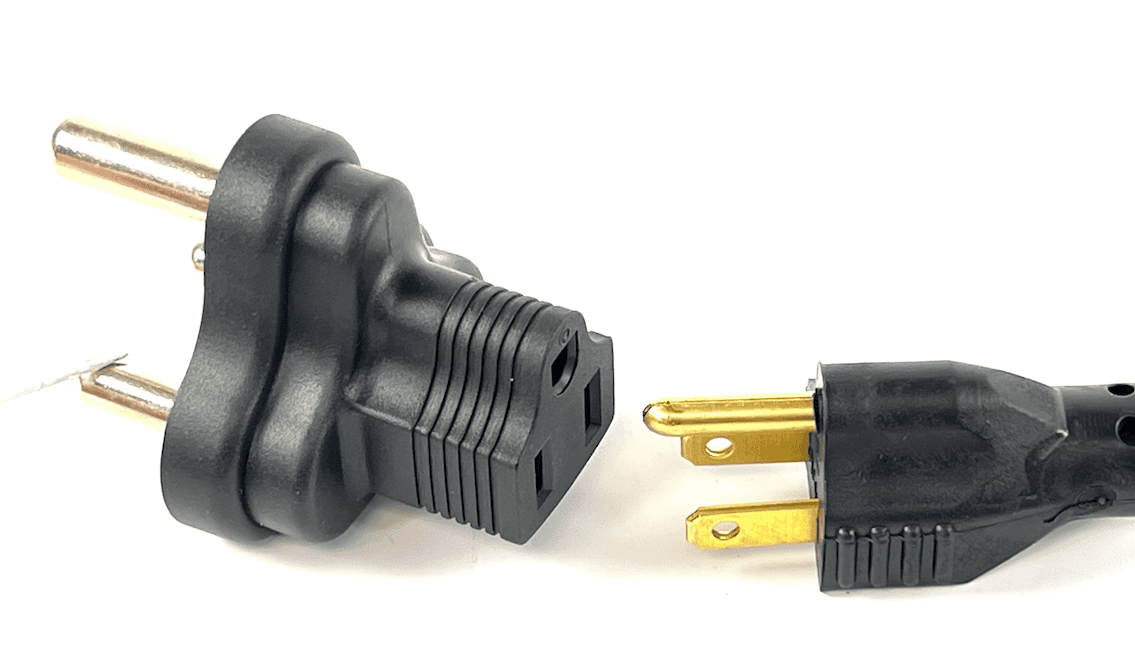

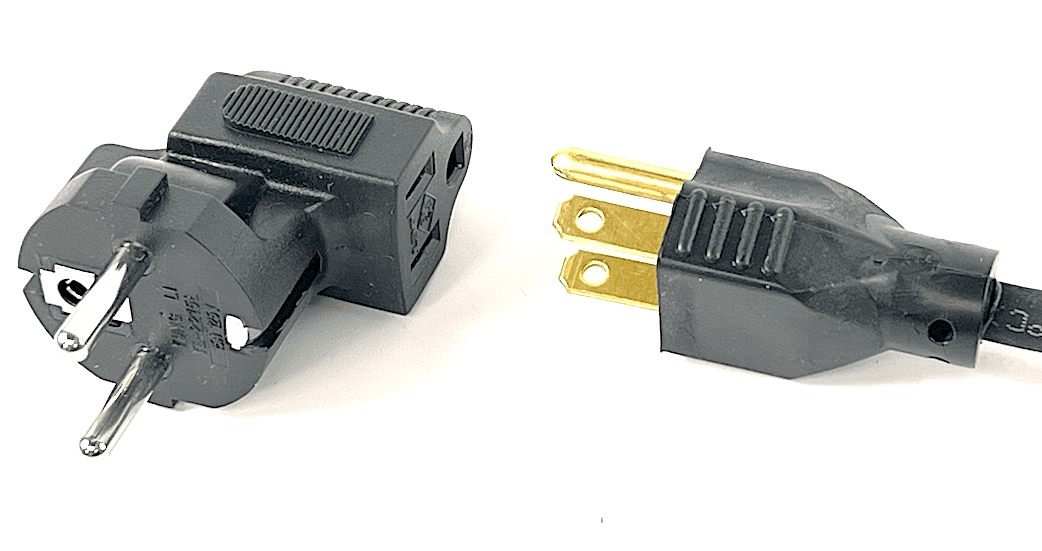

- Typically powered from 120VAC but can be adapted to run from any line power: 12VDC, 24VDC, 24VAC, 240VAC.
INDUSTRIAL TIMER MODELS

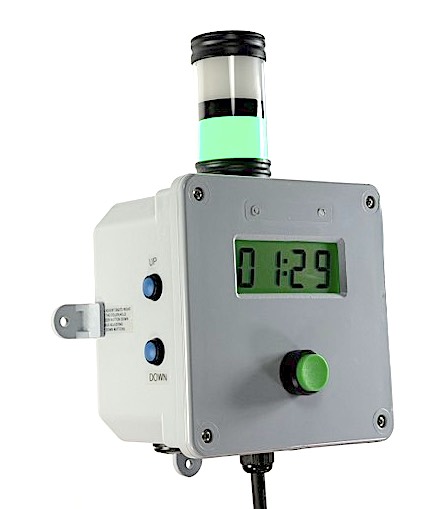

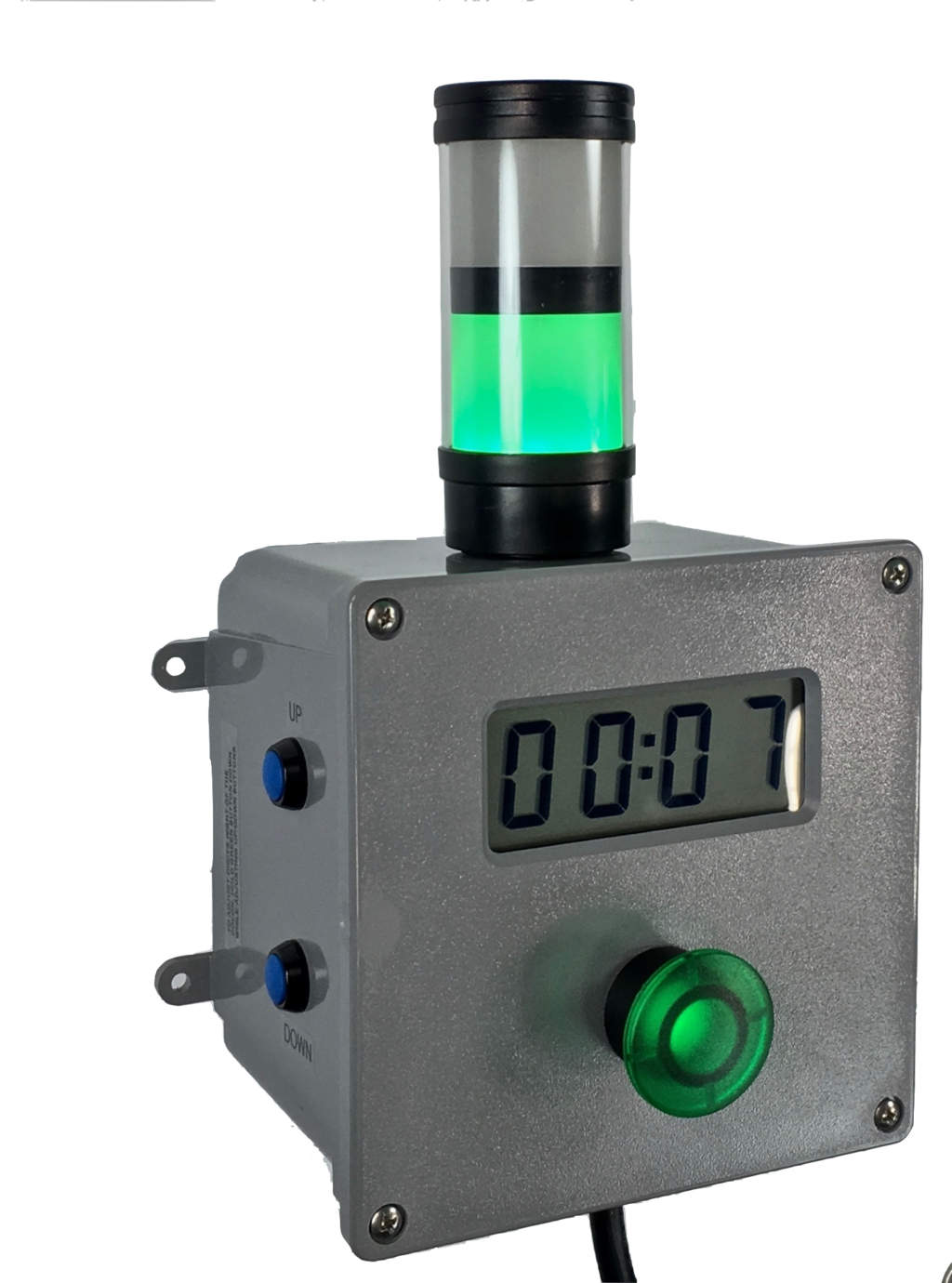

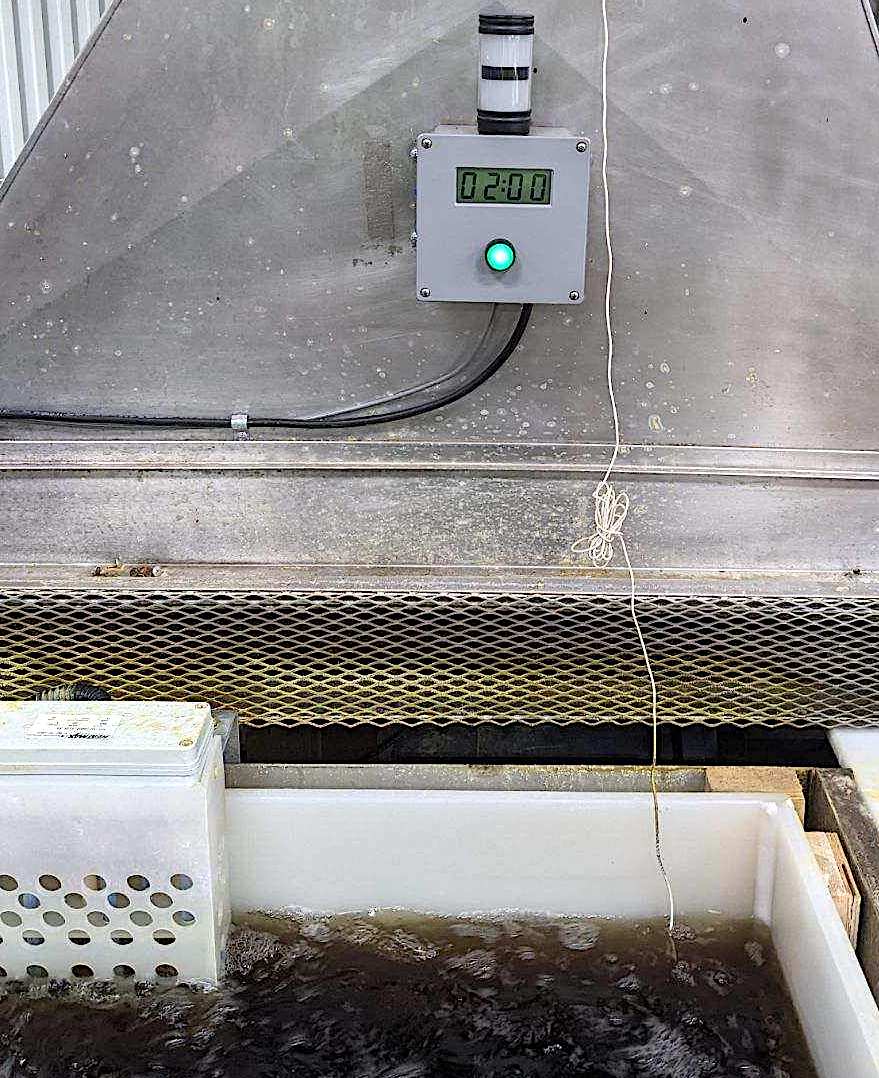

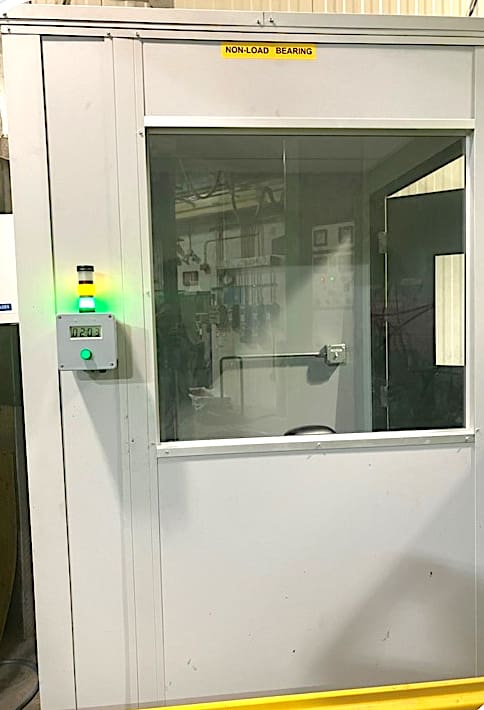

- T6-S2 has a double stack-light (red/green). When timing starts, the green light illuminates. When cycle is over, the red LED illuminates and buzzer sounds. Includes a relay output to control devices with a piggyback cord.

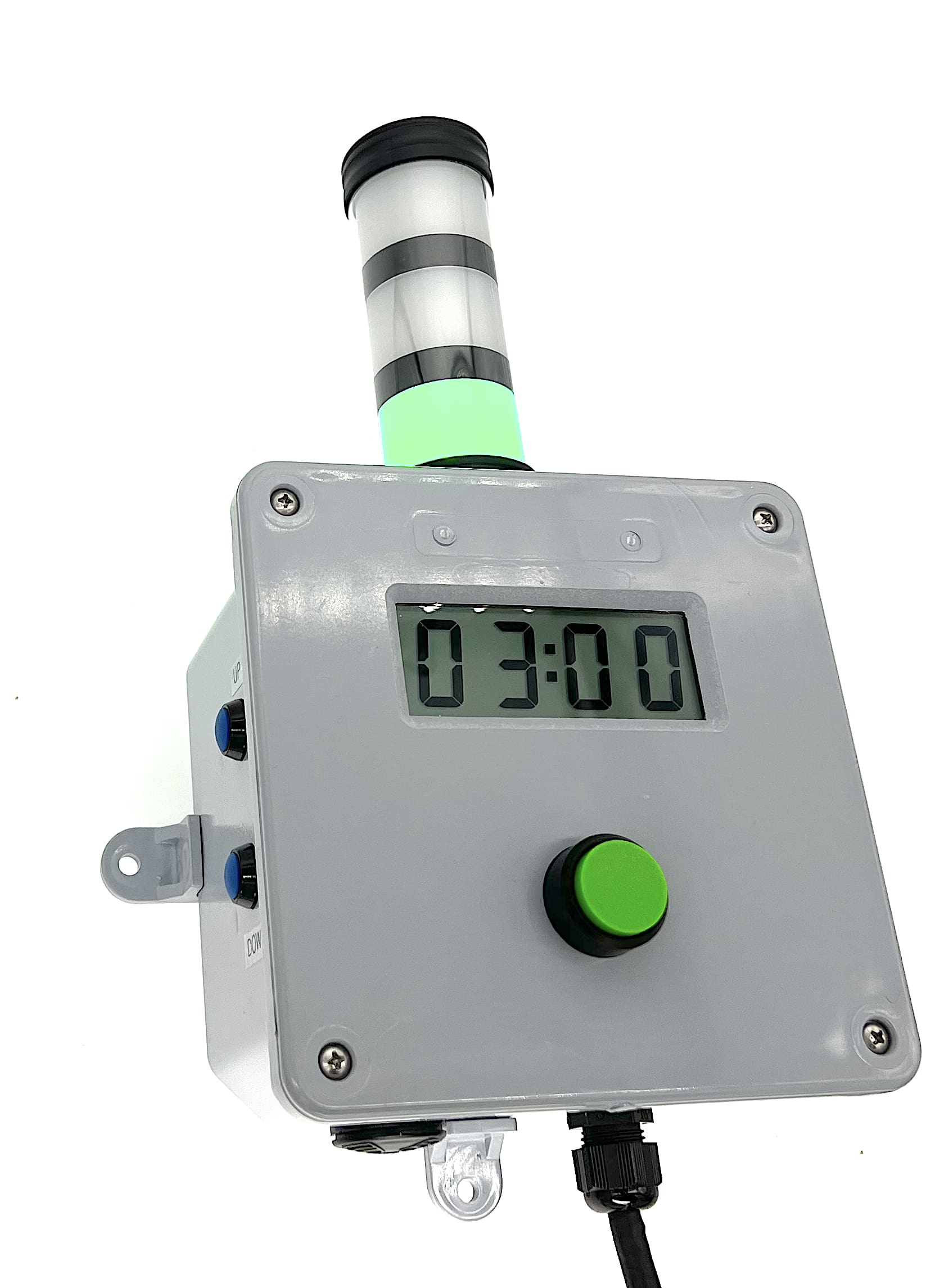

- T6-S3 has a triple stack light (red/green/amber) to add an “early warning” mode on the amber LED. You may set a warning period before the end of cycle and when this “warning time” is reached, the amber LED lights up and the buzzer beeps briefly. If you don’t want the orange to illuminate then the “early warning” can be set to zero.

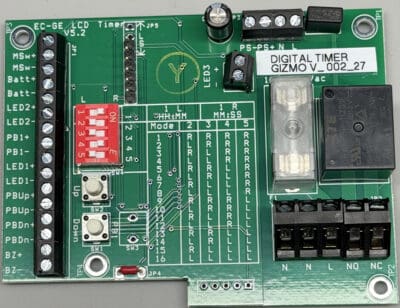

- For some applications the external buttons are not wanted so the time is set with the internal buttons on the PCB. This is model T6X.

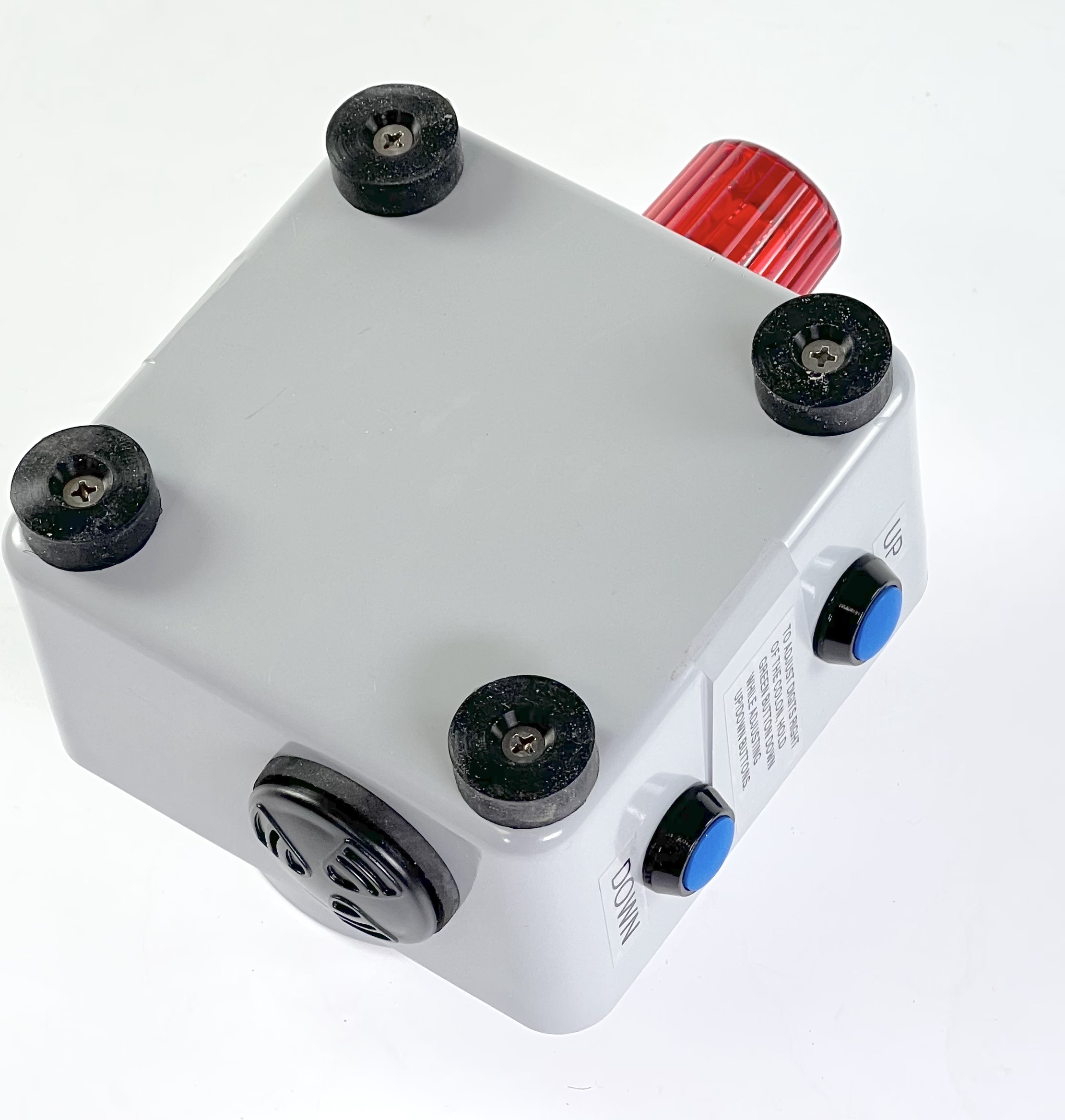

INDUSTRIAL TIMER OPTIONS
The large enclosure is ideal for optional features and customizations. For example, an additional relay can be put in the enclosure to provide 30A relay outputs. See this customer application on our “custom timers” page on truck washing for more.
The inductive proximity sensor senses any metal surface as from a rack, and will automatically start and stop the timing cycle. When positioned close to a rack saddle, it can detect a rack as far away as 30 mm. Inductive proximity sensing is the superior sensing method for dirty grimy operations because it is unaffected by any amount of dirt over the sensor. (unlike laser, optical and mechanical sensors)
The T6-S3 model, can indicate if contact is broken after initial contact, In this case the amber light illuminates and the buzzer chirps for the duration of the cycle to indicate a fault.
See the options at the bottom for more. Our “custom timers” page has even more.
T6 instructions V5.2 (current)
Operating mode chart 51_12.02 (not yet available – in development)
Operating modes chart version 51_510_02 (latest)
Operating modes chart version 51_510_01
Operating modes chart version 41_56_01
Operating Instructions V4.1 (jumper pins instead of DIP circa 2018)
T6-S3 and T6X-S3
3 STACK LIGHT TIMER
T6-S2 and T6X-S2
2 STACK LIGHT TIMER
Inductive proximity sensor detects metal objects (like a plating rack) from a distance of 40 mm. It is not affected by considerable amounts of dirt buildup so it is the best choice for dirty environments. video
Example valid part number:T6-PX
30A RELAY OUTPUT
Higher power relay provides 30A output. Includes 10 feet of 10 gauge power wires. The ends for connection to your power is blunt cut. (no plug) More info here.
Example valid part number: T6-R30
MOUNT FOR PROXIMITY SENSOR

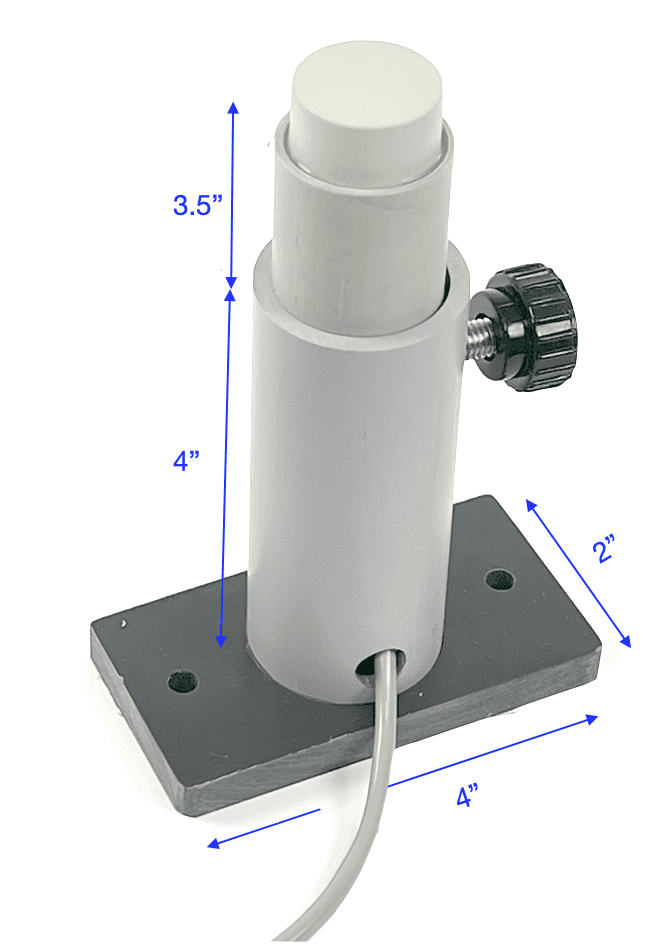

In some situations, mounting the proximity switch vertically makes sense. This telescoping mounting bracket makes it easy to anchor to the lip of a tank, and then bring the proximity switch up to the correct height. Pre-drilled holes accept ¼-20 screws. Standard height adjustment range 4-8″. (click on the image for dimensions)
BUZZER VOLUME CONTROL
Sometimes our buzzers are too loud. Snap-on “muffler” reduces the volume by 20 db and anywhere in between just by rotating the slots.
DIFFERENT BUZZER TONES
Different buzzer tones to audibly identify different units. Hear the different tone types here. [BZ-xx] $18
Sometimes its useful to mirror the display using a box at a second location. Typically the “slave” box is a display only with no controls. Maximum distance 1000 feet.
[SD] $ coming soon
NIST traceable calibration by an independent laboratory. Our specification is 0.05% tolerance. Certificate will be shipped with the timer and include actual test times for the timer being calibrated. Certificates are also available online through our lab’s website. lab link here
