OPERATION
Semi-automatic pushbutton tank fill device fills tanks by pressing a button. The solenoid valve opens and fills your tank to the float switch. This way, an operator isn’t tied to standing by the tank while if fills. Included emergency high level float switch prevents overfilling of tanks. If the level reaches this emergency float, the buzzer sounds and LED flashes, and there is a redundant valve shutoff.
INSTALLATION
The depth of the fill point is adjustable by hand by loosening the thumbscrew and sliding the pipe to the appropriate depth.
The preferred configuration is to have the solenoid pre-wired to the electronics enclosure. We stock a couple of different brands.
CONSTRUCTION
Polypropylene pipe and float switch is suitable for most chemicals.
There are two float switches: one turns off the solenoid valve when the tank is filled, the high float switch is an emergency shutoff and alarm. The float switches are protected inside our unique float guard that eliminates the cause of most float failures.
SOLENOID VALVE
Each pushbutton tank fill is pre-wired to a solenoid valve to make installation easy. We stock ASCO “Red Hat” brand and also US Solid. The valves are pre-wired to the unit with 10 ft SJOOW (rubber-jacketed) cord to make installation easy. Select valve size when ordering below.
ENCLOSURE & PIPE
- PTFE float switch S.G ……………………0.85
- Polypropylene float switch S.G……………0.60
- Enclosure material …………………………PVC
- Buzzer volume ……………………………103dB @ 2ft.
- Battery capacity.……………………………1200 mA-hr
- Operating temp….…………………………-40 to 60ºC (-76-140ºF)
- Ingress protection …………………………IP65
- Lens material ………………………………Lexan
- Current consumption during alarm.………30mA
- Battery chemistry …………………………Lithium Manganese Dioxide
- Battery voltage ……………………………10.1 VDC
- Lithium weight………………………………1.2g
ASCO SOLENOID
We stock these Asco valves:
¼ inch port…………8262H022-120/60
⅜ inch port…………8210G093
½ inch port…………8210G094
¾ inch port…………8210G095
1 inch………………8210G54-120
Polypropylene pipe and PTFE float switch are resistant to most chemicals at room temperature. Click here for chemical resistance chart
For highly aggressive applications we offer a PVDF pipe with the same PTFE float switch which is suitable for temperatures up to 300º F [150ºC] here for PVDF chemical resistance chart
VALID EXAMPLES
LC6 has the electronics enclosure mounted on the tank.
LC6-10 LC6-20 LC6–30 LC6-40 LC6-50 (polypropylene)
LC6-SS-10 LC6-SS-20 LC6-SS–30 LC6-SS-40 LC6-SS-50 (stainless pipe)
LC7 has the electronics enclosure mounted on the wall.
LC7-10 LC7-20 LC7–30 LC7-40 LC7-50 (polypropylene pipe)
LC7-SS-10 LC7-SS-20 LC7-SS–30 LC7-SS-40 LC7-SS-50 (stainless pipe)
Order Here
LC6-PP2

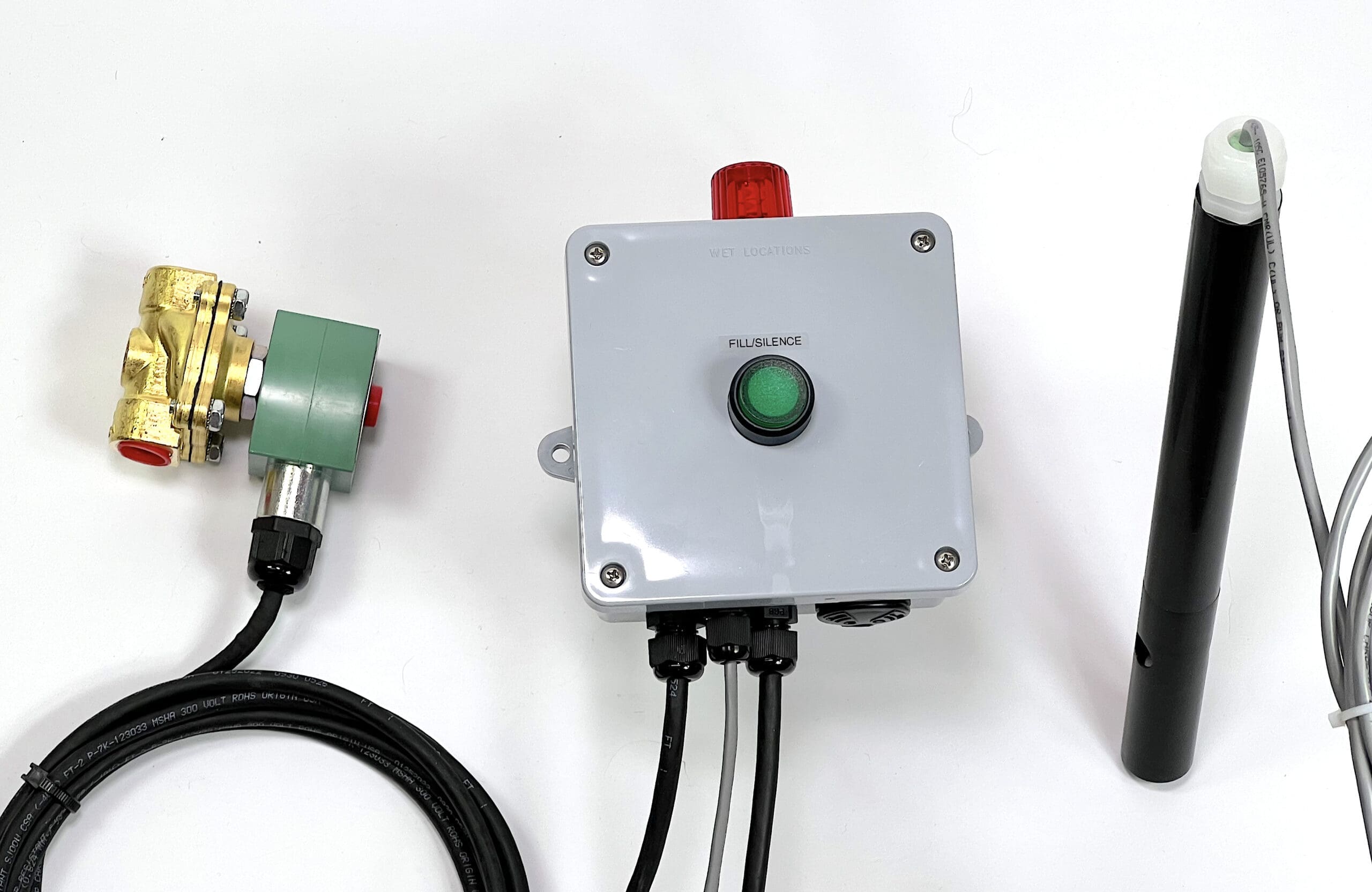

Electronics mounted at the
tank.
$402
LC7-PP2
Wall mount electronics box.
$437
Options

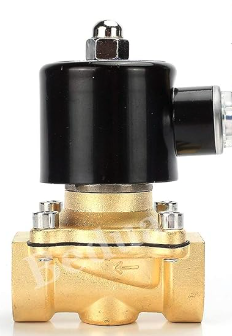

SOLENOID VALVE – STAINLESS
MOTOR STARTER
Motor starter allows the LC2 to control large pumps. Three phase or single phase. Pre-wired to the level device. Specify your motor size. Please see this page for details.
Mounting Options
Adapt to your tank from the 1″ NPT male thread.
[MB-xx]
