Custom Process Timers
Our standard timers have many different time cycles pre-programed. Nevertheless, our customers sometimes want something special, and we willingly accommodate these requests with custom timers. These custom timer orders have produced the interesting variations on this page. to
PROGRAMMABLE TIMER MODULE
For functions that are not contained in our standard timers we have untilized a module that can be programmed with 48 different functions. This should cover all the bases for any timing need. Here is the list of 48 functions available.
26243
Guard duty timer with three satellite timers that have to be checked on a schedule. There is no way to defeat the alarm, by cutting the cable, jamming the button down area all detected and produce an alarm. Master panel in the control room displays all the times, and even give the supervisor an early warning.
23652
Ultrasonic sensor senses the customer’s pallet from up to 400 mm distance. If a pallet is in sensing range then a countdown timer (the top one) counts down and gives an alarm after the allotted time. At the same time, a second timer counts up and accumulates the time that there is an object in sensing range. At the end of the day a supervisor with a key can clear the display to back to zero.
25053
Ultrasonic sensor senses objects further away than the inductive proximity sensor. For close up sensing the inductive proximity swtich is unbeatable because it is impervious to any amount of drit on the sensor. However its range is limited to 40mm. For longer distances the ultrasonic sensor will do the job. The one featured in this video has a range of 50-400 mm. Longer ranges are available.
23652
TIMER WITH KEY SWITCH SHUTOFF

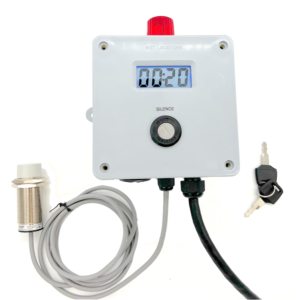

This timer is designed to let supervisors know if work has been left in the tank over the prescribed time. There is an early warning for the operator to get ready to pull work from a tank, and then the usual end-of-cycle alarm. However if the end-fo-cycle alarm sounds for more than 8 seconds, (because the rack has been left in the tank) then a second buzzer (with different tone) sounds and only the supervisor can shut it off with a key.
22454
An interesting element of this timer is that there is a second programmable timer inside that controls the second buzzer. It can be programmed to any length of time, or to shut off after any length of time.
6-UNIT TIMER
This timer is for timing multiple loads in an oven. The timer signals if any of hte loads is ready and indicates which one.
23247
SPLIT DISPLAY

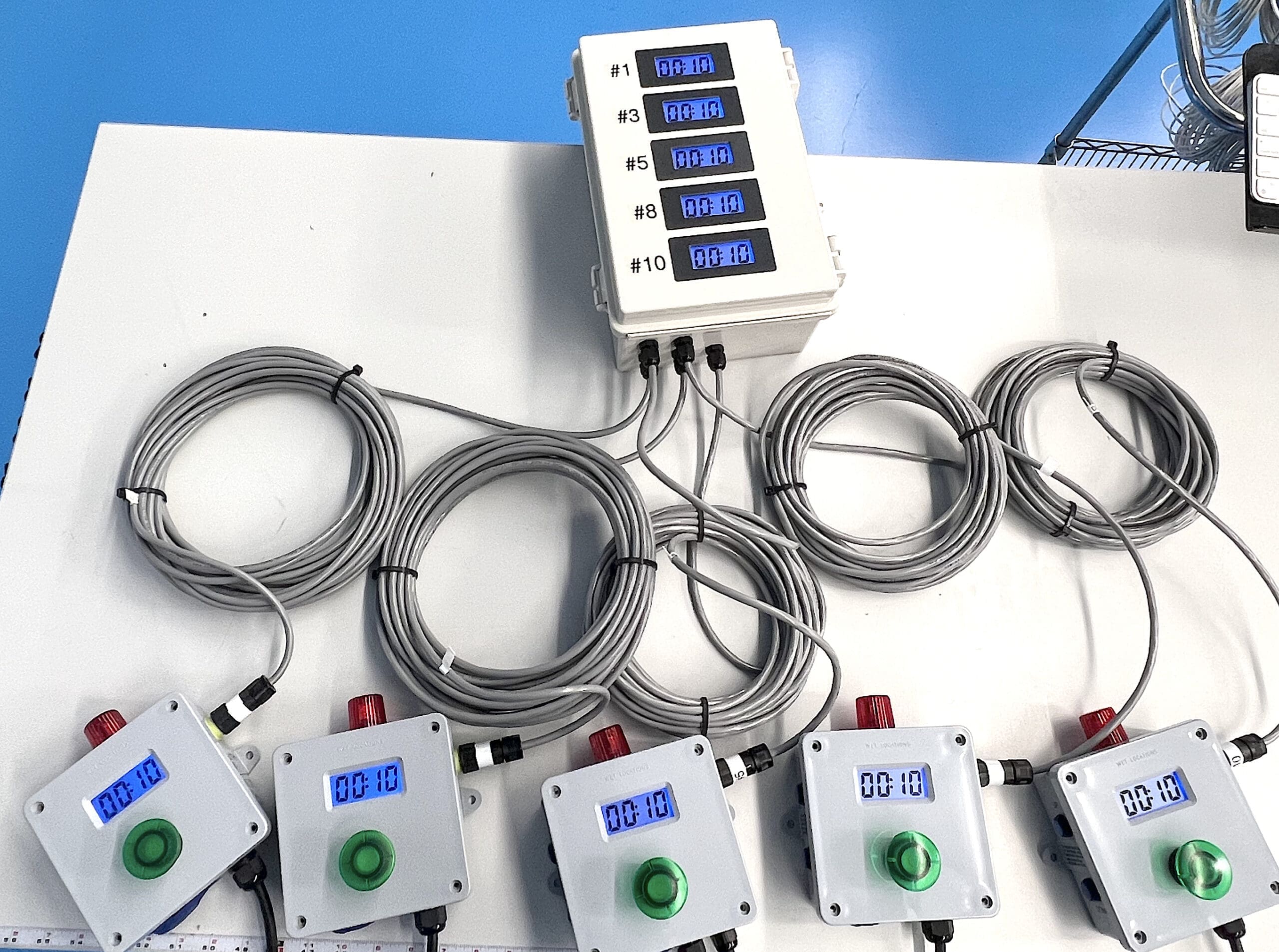

The timer display can be split off so the same time display is in two locations. In this example, there are multiple T5 timers on a plating line, and a supervisor panel away from the plating line about 50 feet distance. The distance can be at least 1000 ft which is the longest we have tested. In the case of this timer, there are no controls at the supervisory panel, but this is just a preference.
21249
TRIPLE TIMER – VERTICAL

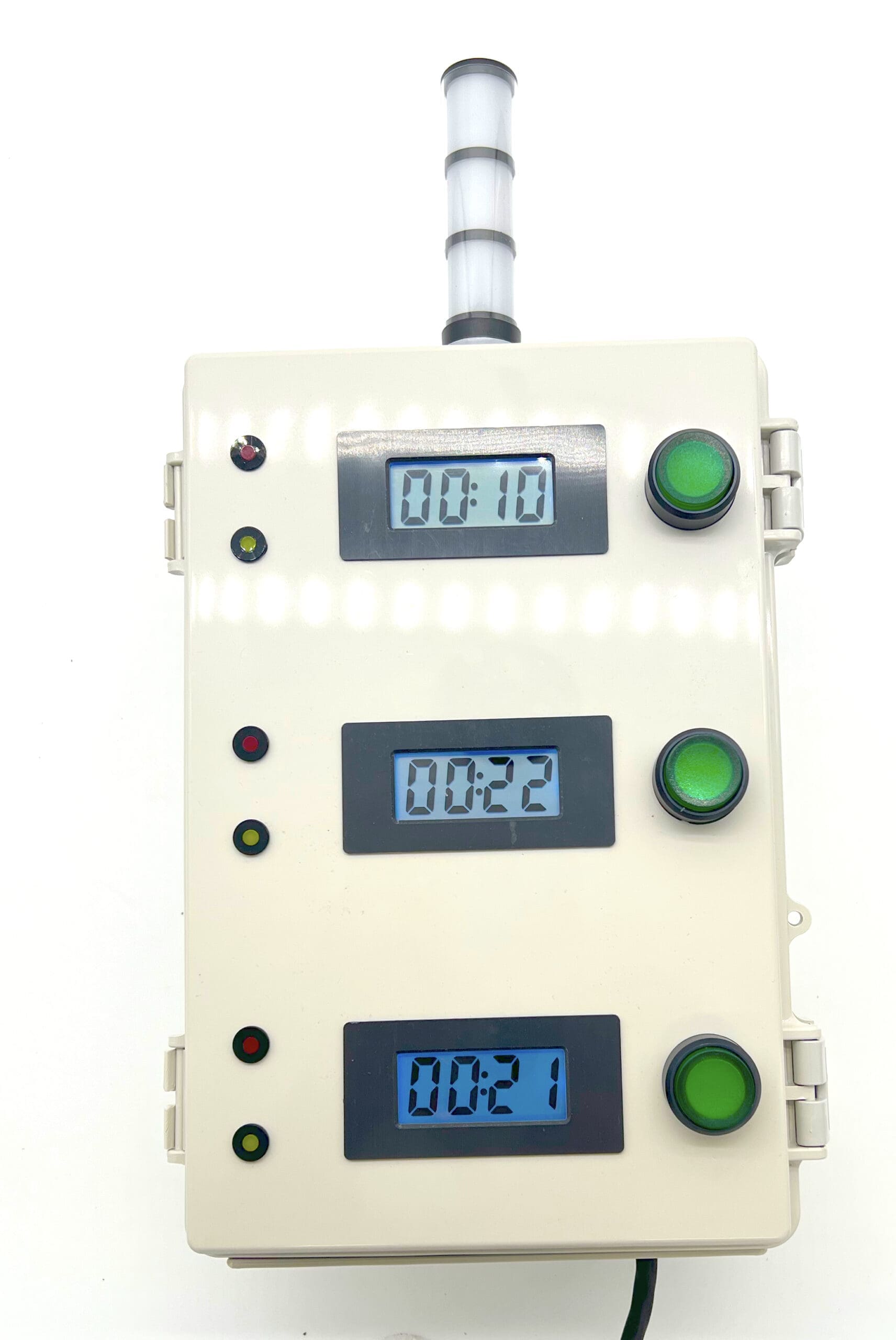

This timer is the model T10-3 which comprises 3 timers in one enclosure. Panel indicator correspond with the stack light to indicate the timer activity. The on-board relays are not used in this application.
25568
TRIPLE TIMER – LANDSCAPE
This timer is to go onto a plating tank with a left, center and right location. Therefore it made sense to have the timer mimic the orientation of the tank, so its obvious which cell in the plating tank corresponds. Its an unusual layout for us but it made sense.
23148
ALTERNATING TANK FILLING

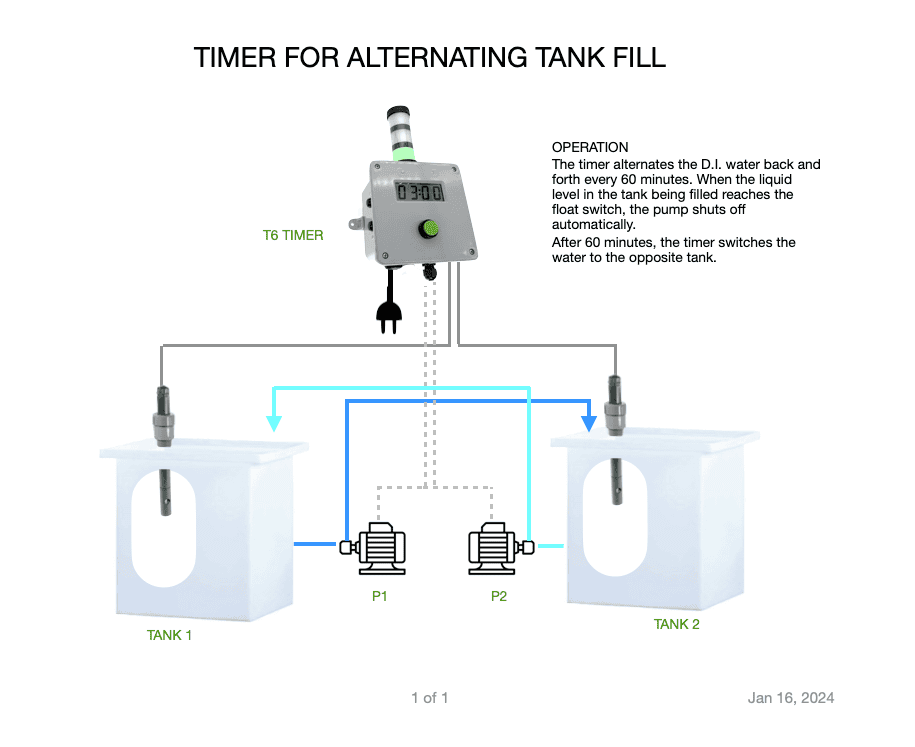

This automatic filling system is for D.I. water testing of metal parts. Every 60 minutes the D.I. water is cycled to the opposite tank where it is purified. During this time the metal parts are allowed to dry in the ’empty’ tank.
22987
“BIGFOOT” MOUNTING BASE

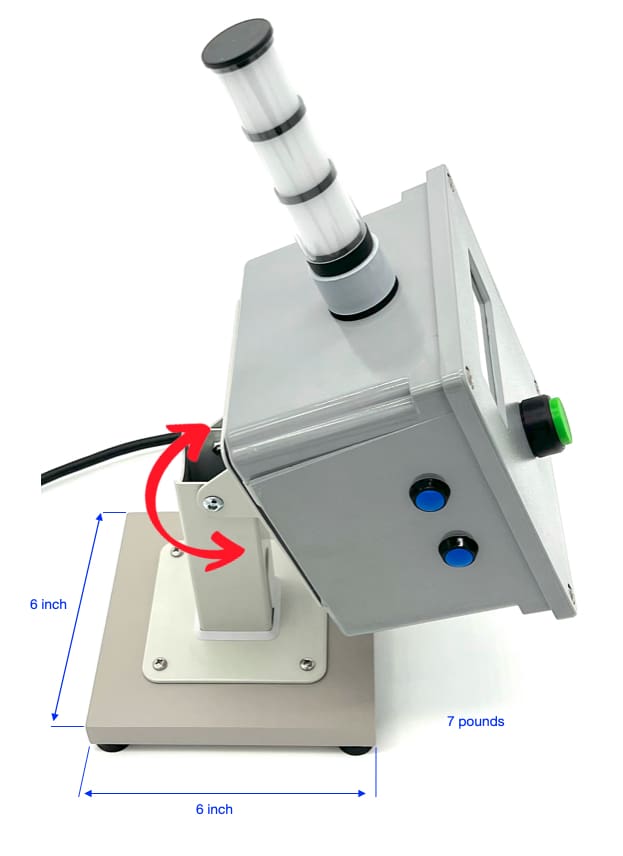

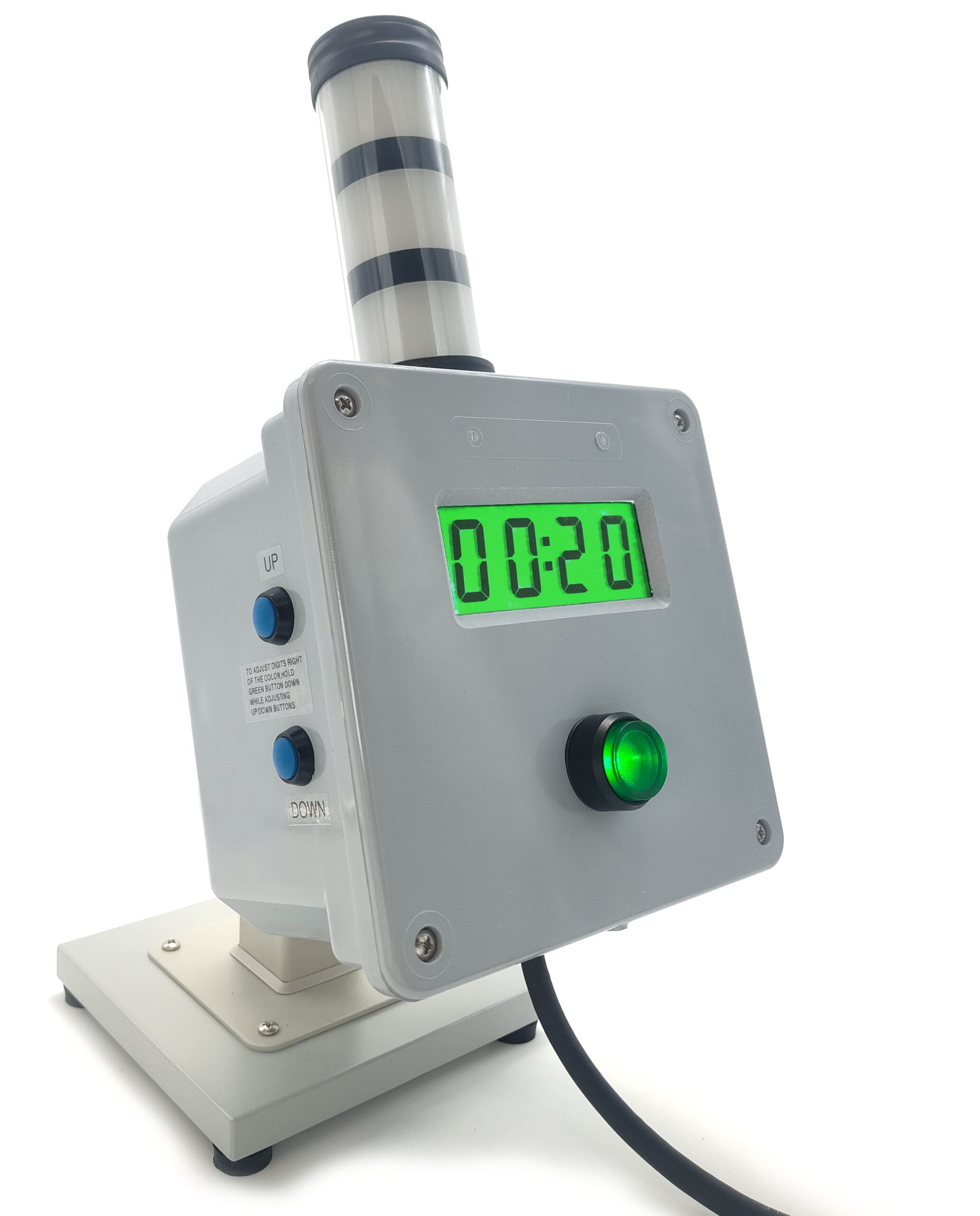

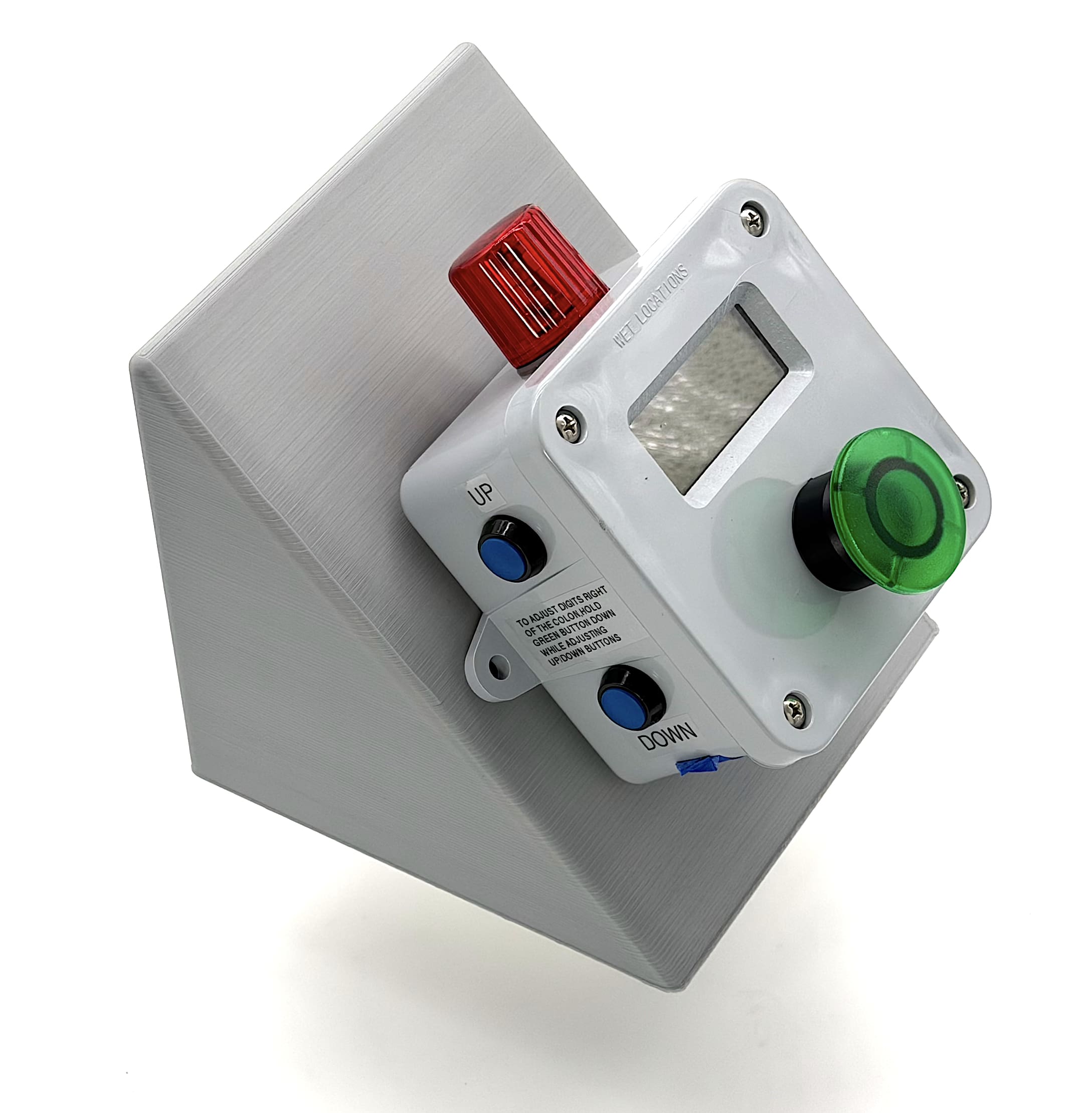

This mounting base for our T6 timer holds the timers rock-steady. This customer wanted an immovable base to mount their T6 timers on top of ovens.

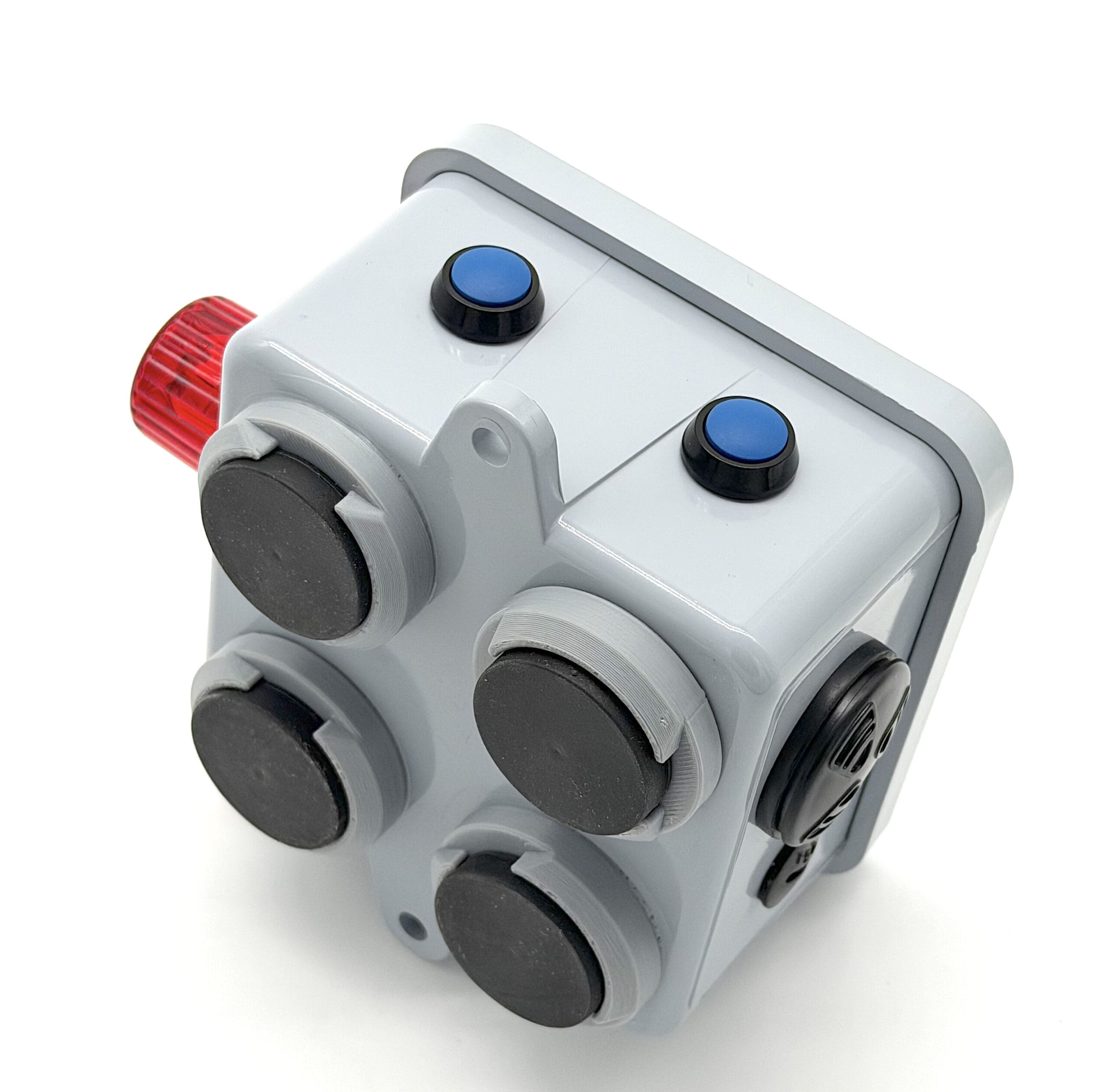

Seven pound base with magnetic feet will not scoot an any surface. The magnetic feet further help to “stick” to the metal-top ovens that the base is resting on.
Youtube video of timer mounting base
TIMING IN THE DAIRY INDUSTRY
A study done by Dr. Paul Virkler (Cornell University) concluded that timing in diary operations is very important for the health of the cows, and at the same time, increases milk production significantly. Several Gizmo Engineering timers were used to increase milk production.

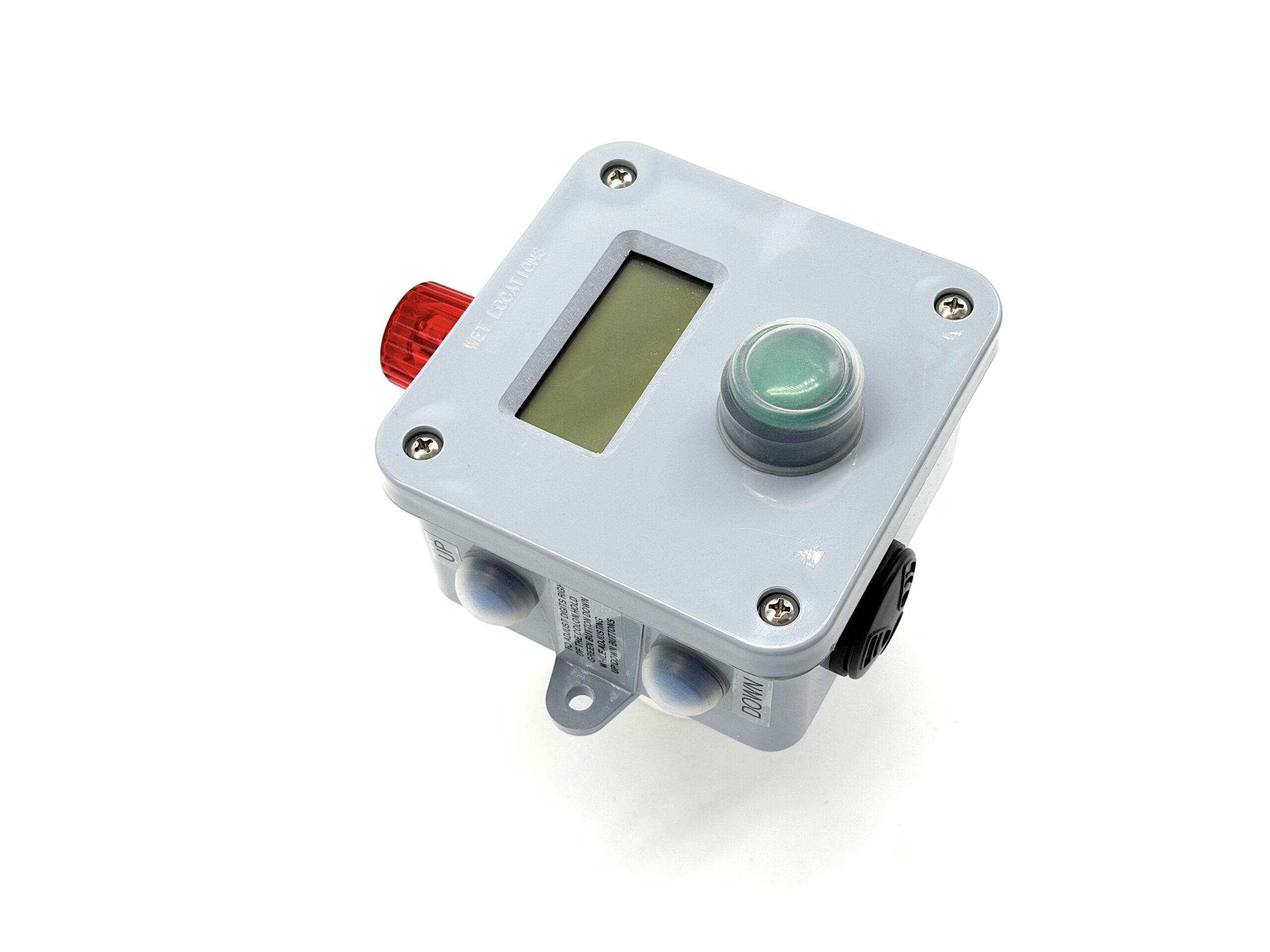

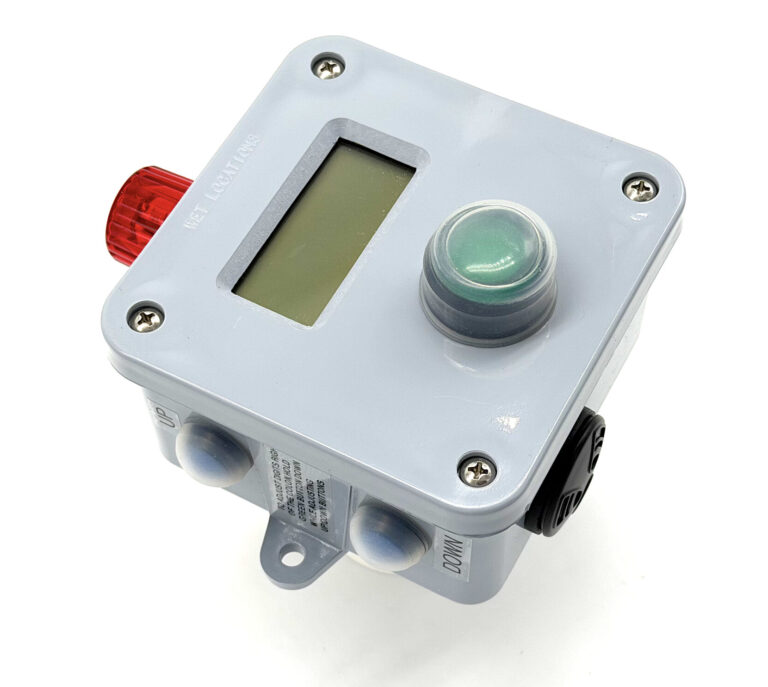

This application is what caused Gizmo to upgrade the timer enclosures because the teat dip is an exceptionally potent wetting agent that seeps into any crevice. In addition to the upgraded enclosure (which is now our standard enclosure) a silicone seal over the push button guards against leakage. External buttons to set the time are on the inside of the enclosure. Most of the time dairies want the buzzer eliminated to provide a more peaceful environment for the cows. This timer has actually been successfully tested to IP68. (immersion to 1m)
DUAL TIMER WITH REMOTE STACK LED

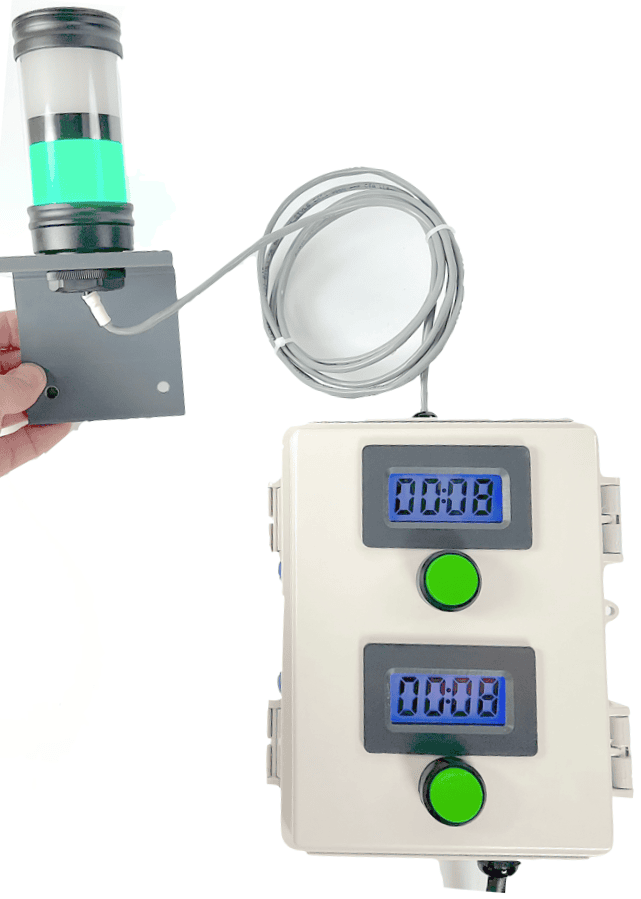

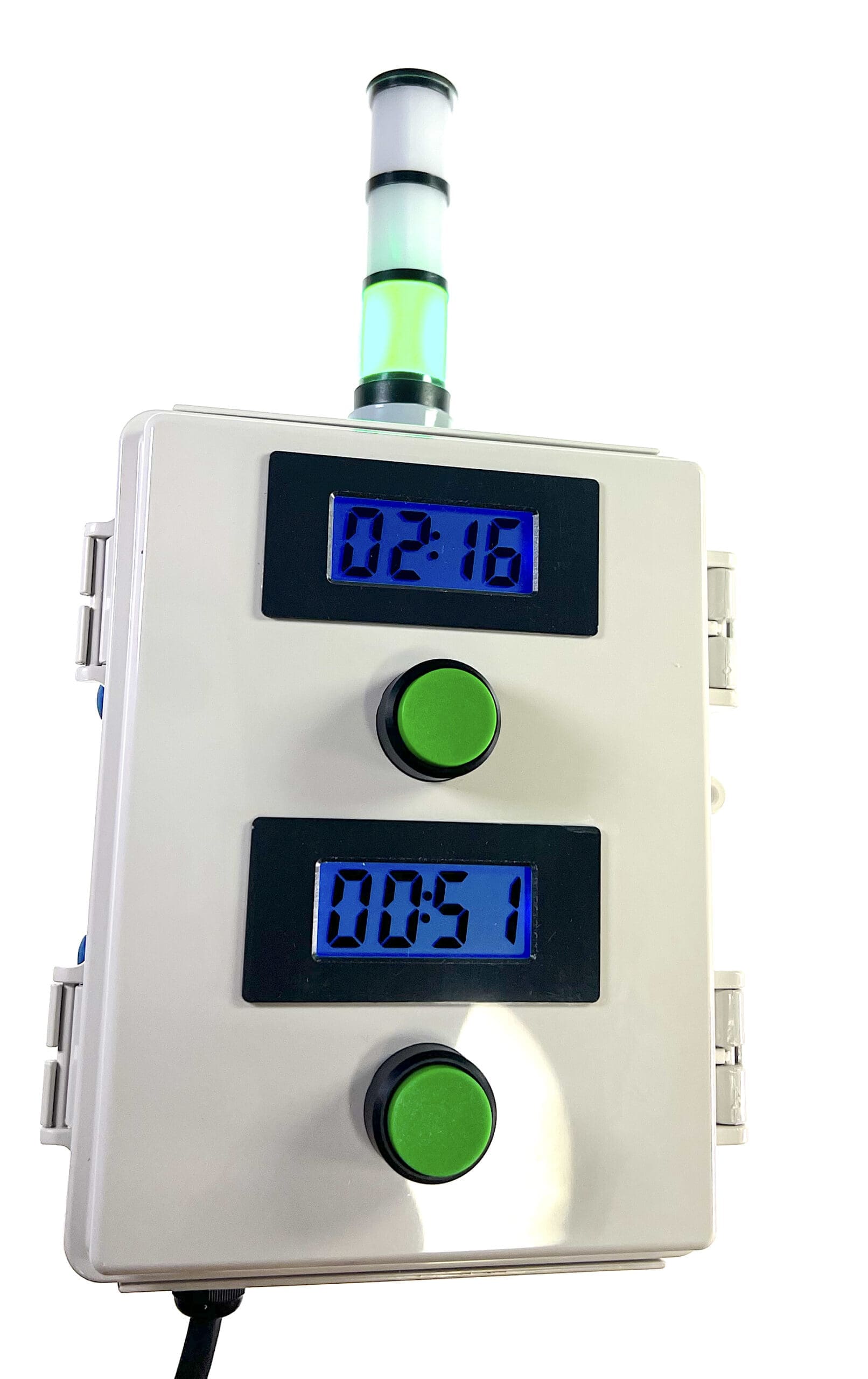

This customer wanted a custom timer with a remote stack light. The base timer has two independent time displays. The operator in this application would only activate one of the time cycles at a time depending on which recipe they are using. Whichever time cycle is used, the signal is the same: both timers activate the same buzzer. Both timers illuminated the green stack LED when counting down, and then the end-of-cycle triggers the red LED.
24646
DUAL TIMER WITH REMOTE STACK LED
This customer wanted a custom timer with a remote stack light. The base timer has two independent time displays. The operator in this application would only activate one of the time cycles at a time depending on which recipe they are using. Whichever time cycle is used, the signal is the same: both timers activate the same buzzer. Both timers illuminated the green stack LED when counting down, and then the end-of-cycle triggers the red LED.
19586
CUSTOM TIMERS WITH REMOTE BOX
This customer wanted to communicate the status of the timing to two rooms at some distance from each other. To do this, we created a “master” T6 timer along with a connected “slave” that indicates the status in the second room. The way the customer’s operation works, the slave timer starts the time cycle, and then the “master” timer indicates to operators in the second room how much time they have to complete their task.
20319
WIRELESS START + KEYSWITCH
This custom timer can be started or stopped with a wireless remote, or from the front panel. Also includes a relay output and a key switch to prevent operators from changing the time. The time can only be changed when the key switch is turned. We used an 8×6 inch enclosure for this one.
13091
CUSTOM TIMER WITH RELAY AT CYCLE END
This special wiring permits the relay to energize briefly (two seconds) at the end of a countdown. (unlike the standard cycle 5 which has the relay energize during the countdown) This customer wanted to connect the relay output to an existing alarm.
DOWNTIME TRACKING TIMER

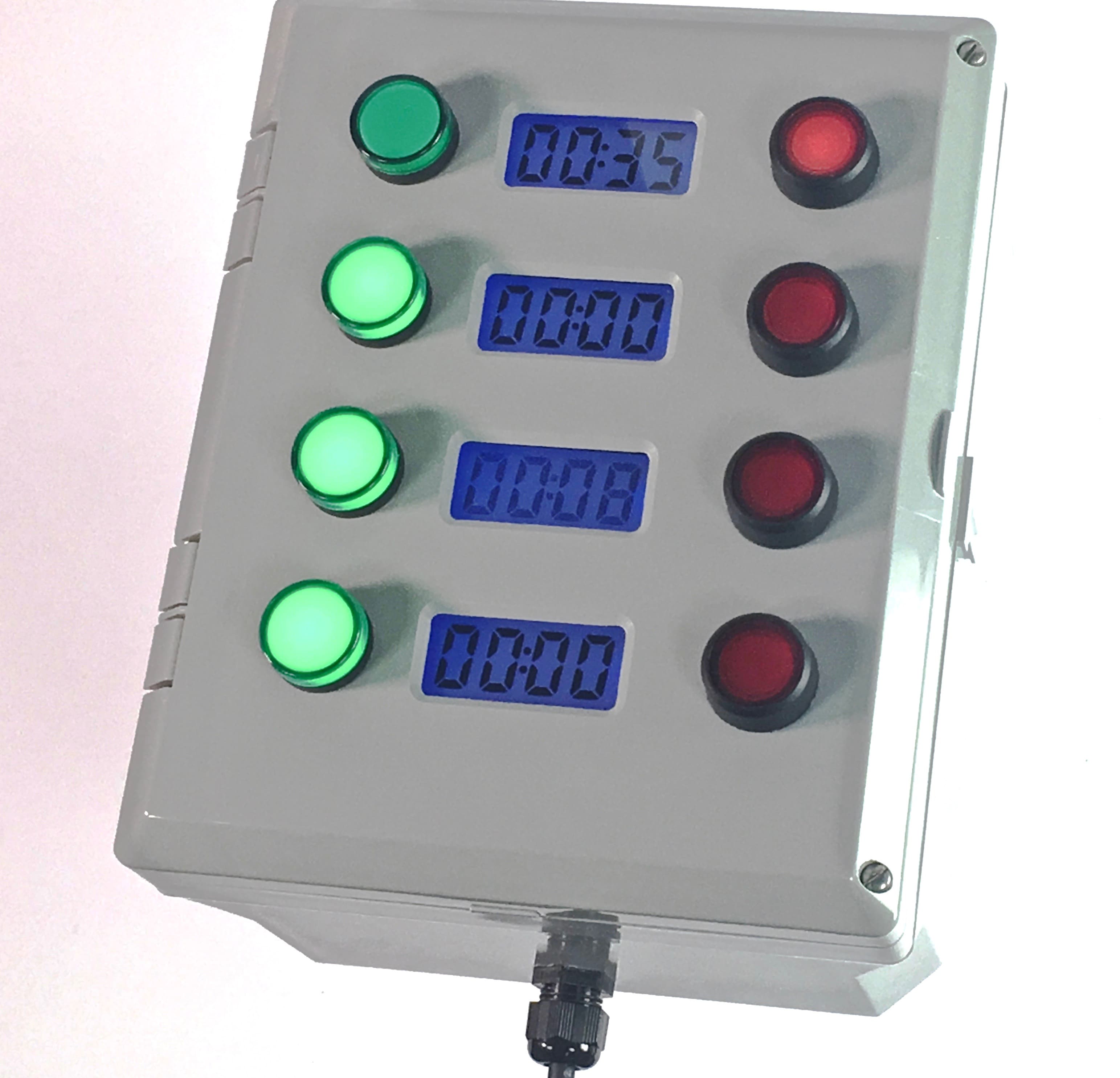

This timer totalizes downtime by stopping and starting a count when the buttons are pressed. This timer tracks four different processes. Also known as an Andon timer.
10×8″ waterproof enclosure.
PROXIMITY SWITCH WITH RECEPTACLE

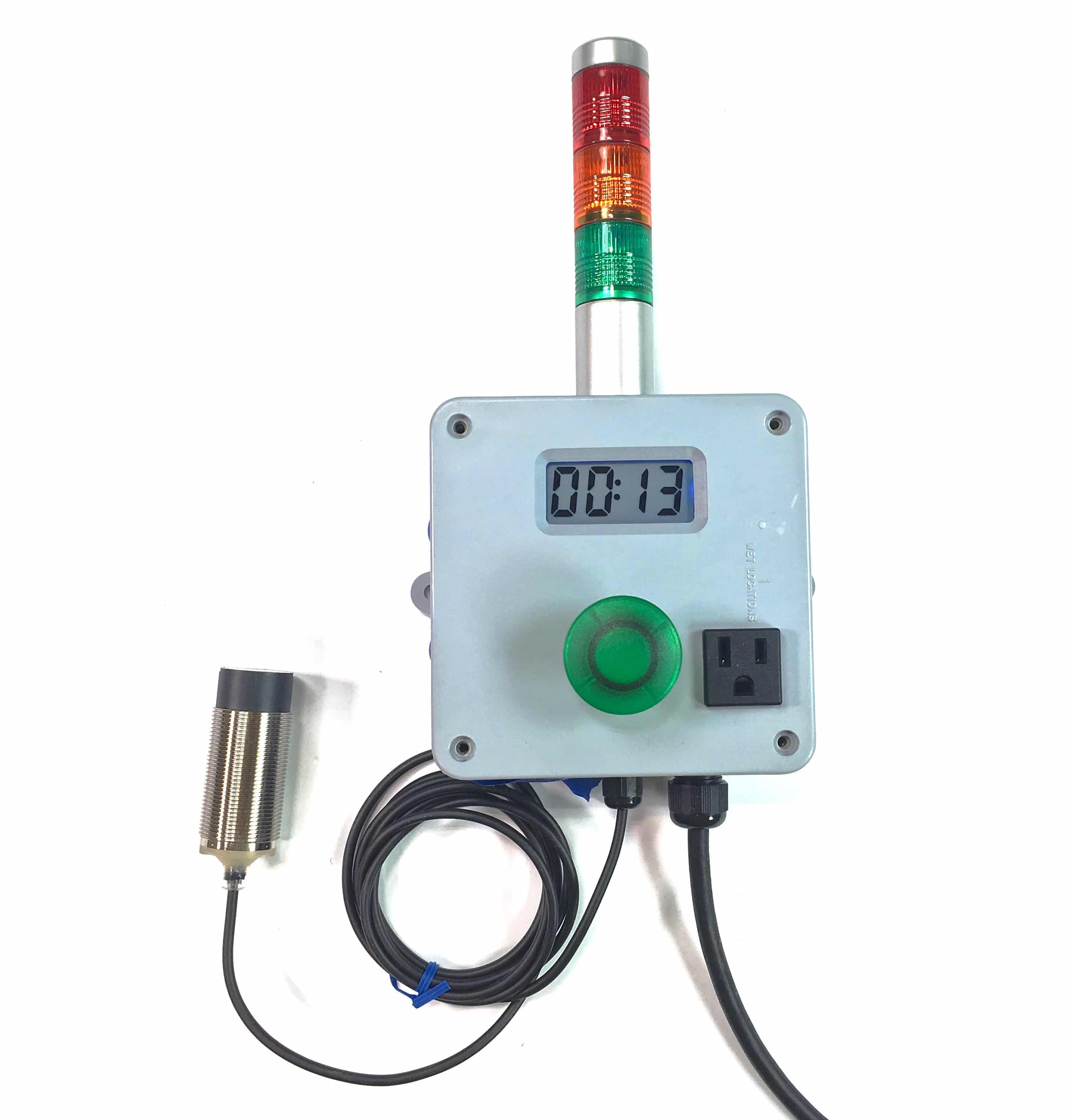

A customer wanted a timer activated by an inductive proximity switch. Once the proximity switch detects any metal, the timer activates. The part of this that is custom is a receptacle on the front that energizes when the proximity switch detects a metal object. Usually we would favor a receptacle on a dangling cord but this one was a custom timer.
12 UNIT TIMER

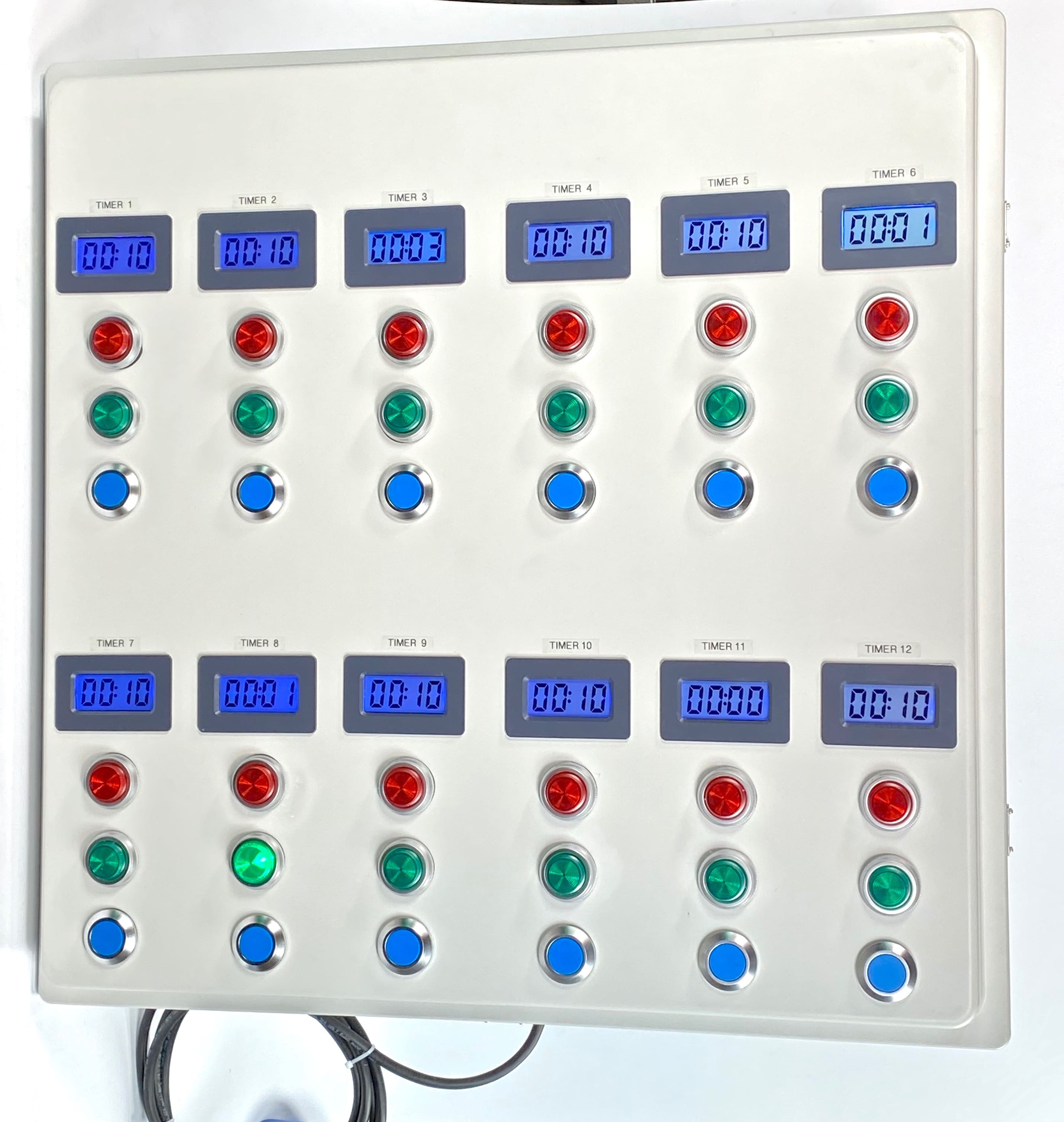

This custom timer has 12 independent timers in a 25 x 25 inch hinged fiberglass enclosure. In addition to the enclosure, the buttons are also special. The customer wanted 30 mm panel indicators and buttons to indicate when a particular timer is timing or idle. (ordinarily we favor 22mm buttons) The operator can start and stop the time using the blue 30mm buttons. Setting different time cycles is done from buttons located inside the enclosure.
13611
TRIPLE TIMER

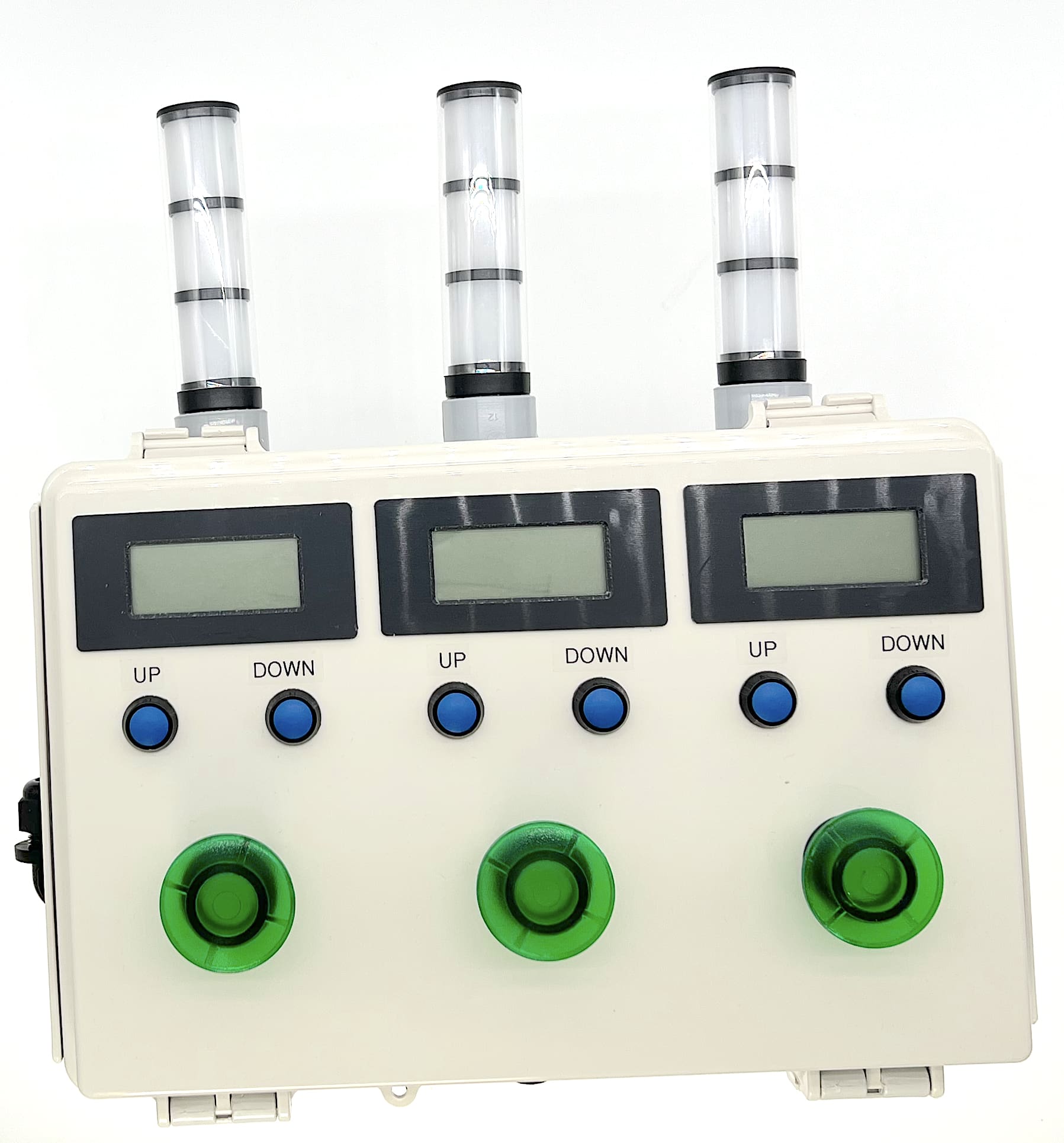

Three independent timers in one enclosure allows the operator to choose the appropriate time cycle. The cycles can be running concurrently. If any of the cycles reach the end, the buzzer and beacon activate. The appropriate button illuminates when a timing cycle is active. In addition, each time cycle can produce a relay output if needed.
Comes in a 10×8 inch waterproof enclosure.
14317s
DOUBLE TIMER
- This customer wanted a dual cycle timer where the timers are cascading. Timer #2 starts automatically when timer #1 has counted to completion.
KEY SWITCH ACTIVATED CUSTOM TIMER
- This timer was supplied to the TV show “Deadliest Catch“. They wanted a timer that only people with keys could activate. The timer operates a circulation pump to keep the crabs healthy and fresh. Once the pumping has started, the timer must not be turned off, except by the key holder. The key switch is waterproof. When the key is turned on, the timer can be started normally.
FOOT SWITCH ACTIVATED TIMER

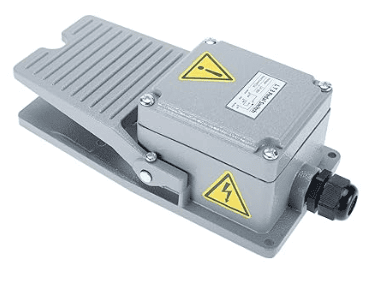

- Timer is activated with foot switch (foot pedal) or front button. This frees the operators hand for other tasks. The foot switch is depressed momentarily to start the cycle. In this case the customer used an auto-off cycle that stops automatically, but all 12 of the cycles are available. Youtube video of this foot switch timer here.
CUSTOM TIMER WITH BEACON ON BOTTOM
- A customer in the dairy industry wanted this configuration because the beacon would not be visible on top of the timer box.
