pH CONTROLLER WITH ALARM monitors pH lets you know if pH gets out of range.
pH Controller and Monitor with Alarm…
- Loud alarm buzzer. 103dB warbling tone cuts through the loudest industrial noise.
- Simple and intuitive.

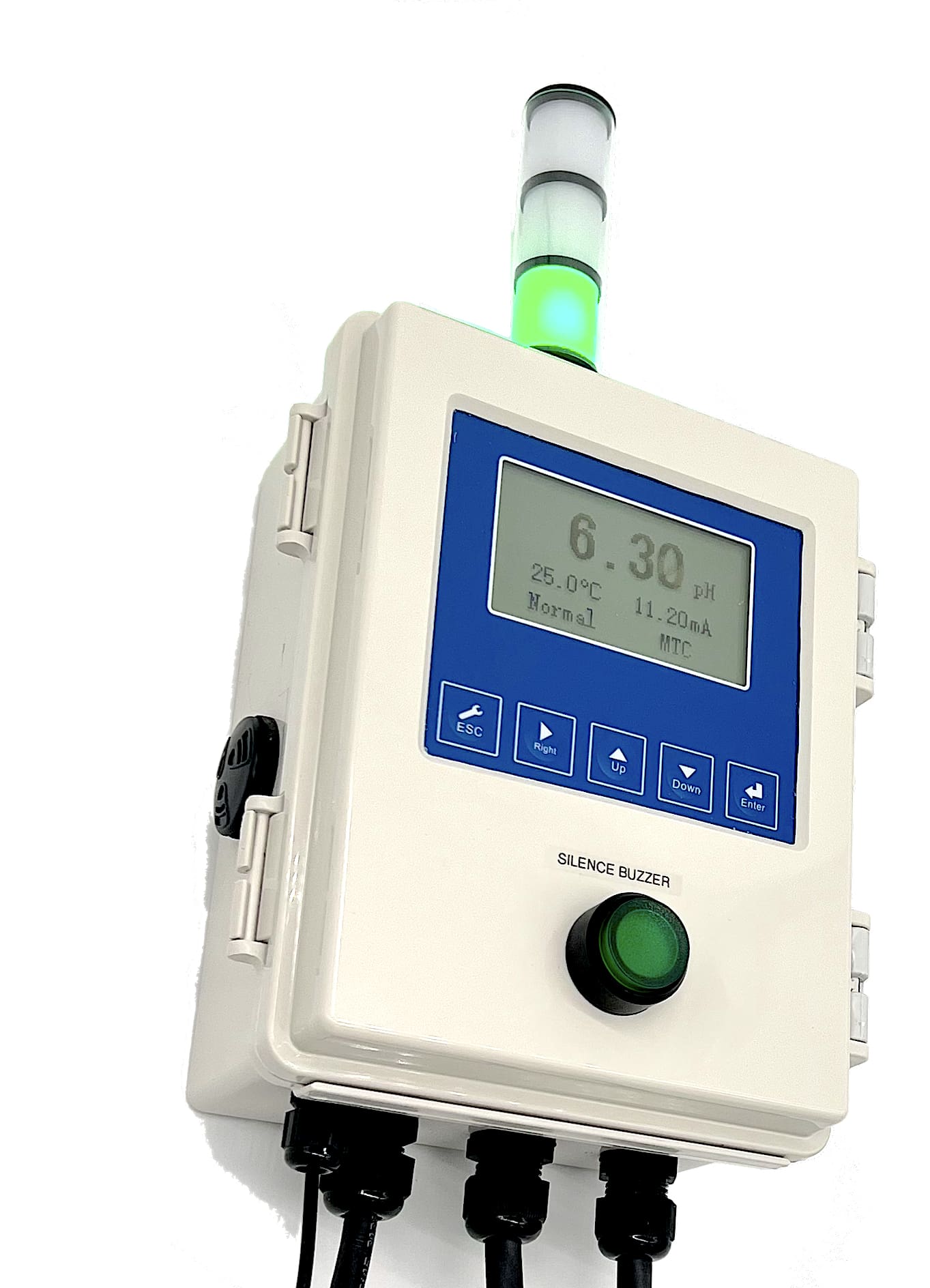

- Stack Light Indicator. Green when in range. Red when out-of range. Yellow indicates when pumps are on.
- Waterproof – meant for tough plating environments. IP65 ingress rating.
- Easy installation – just mount on the wall.
- Convenient pump control buttons.
- RS485 output. Data logging to a computer.
- 4-20mA output. Record data to external recorder.
BACKGROUND
FINALLY A pH CONTROLLER WITH AN ALARM INCLUDED – not just an “output” that needs electronics work to make it function, but ready out of the box.
For something as important as wastewater compliance, having an alarm to let you know when the pH is out-of-range is critical! This device monitors the pH so you know immediately if the pH is too high or too low.
pH CONTROLLER DESCRIPTION
The pH alarm points (high and low) are separate from the pH control points. (used to activate an acid and a caustic pump) When the alarm sounds, it’s easy to silence the buzzer with the front button. The buzzer will sound again in 30 minutes if the condition is not corrected. (if the default behavior is selected)

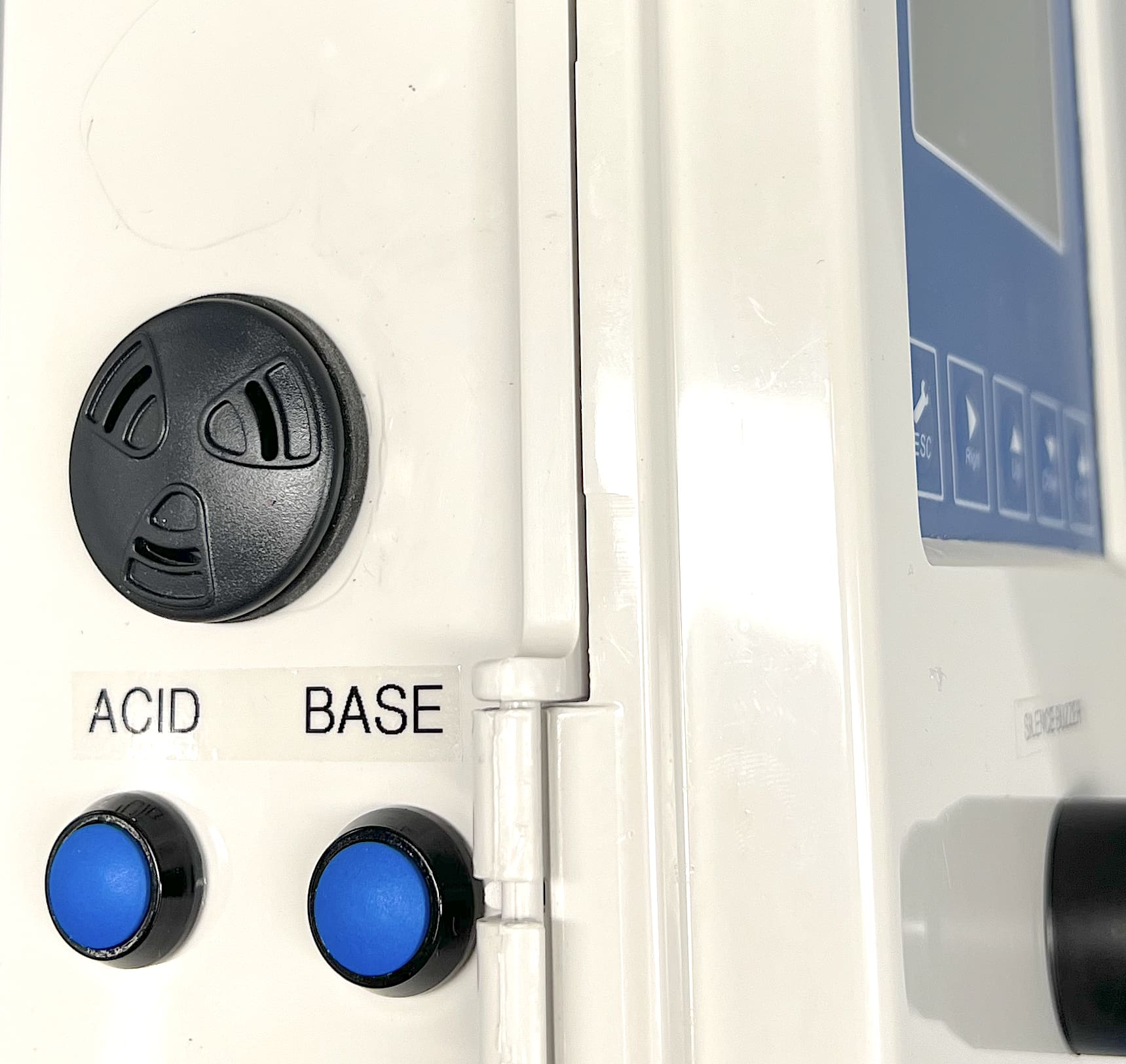

Buttons on the side of the enclosure will activate the pumps manually. This is useful for priming pumps, calibrating the pumps, testing, or emptying drums.
The yellow stack light illuminates when either pump is active. This helps to monitor the status of the system.

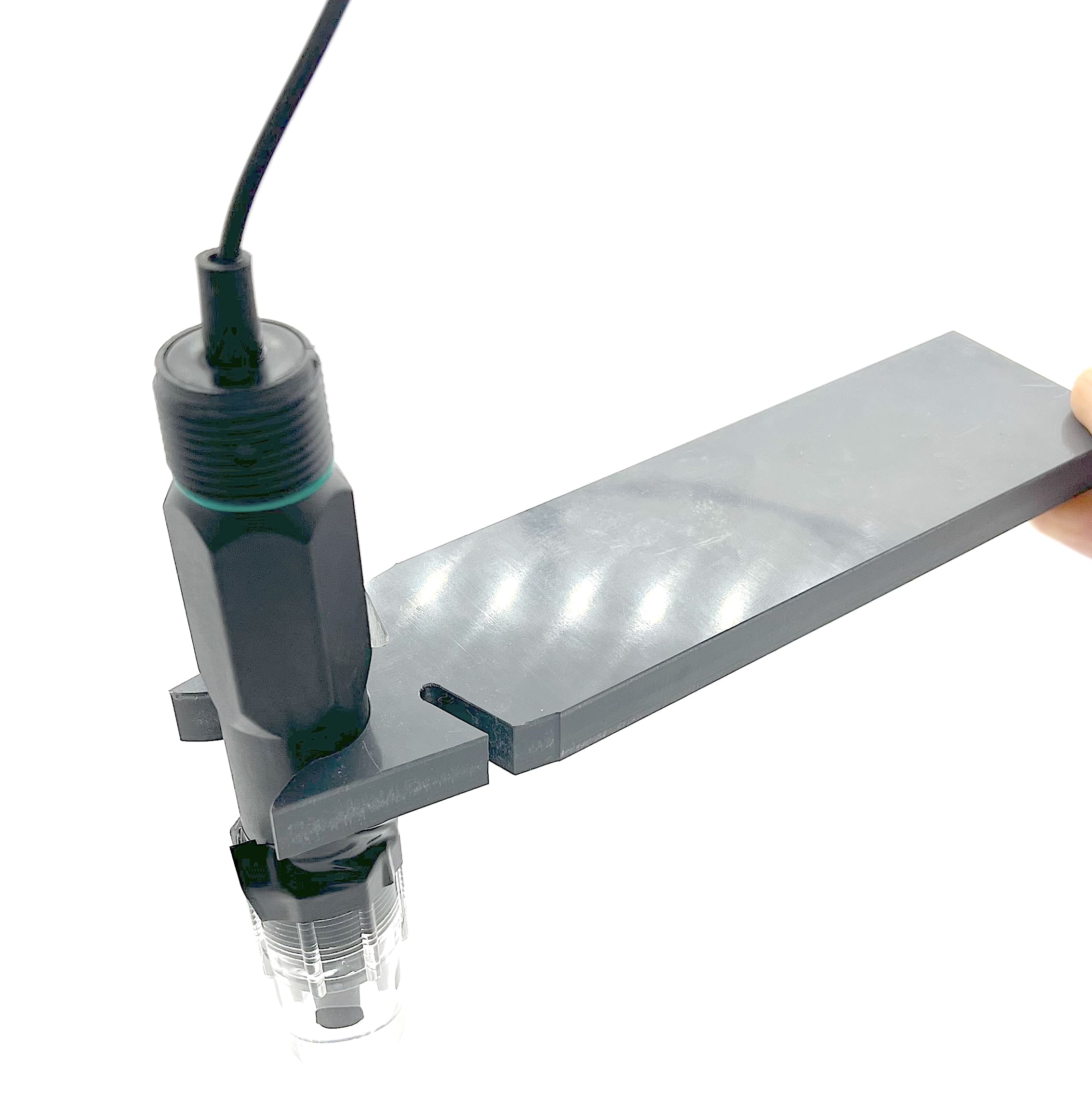

Rugged industrial pH probe included.
Installation consists of these steps:
- Mount the enclosure.
- Set desired alarm and control points.
- Plug your pumps into the dangling pigtail outlets.
- Calibrate.
SETTING THE ALARM POINTS
As an example, if you want the acceptable pH range set to 6.0–8.0. In this case, the acid pump would start making additions when pH rises to 8.0. You can set the hysteresis so the pump will stop when the pH is corrected to 7.5 for example.
The high pH alarm point could be set to any value, such as 9.0. (that way the buzzer doesn’t sound every time there is a routine addition) You can set any Hysteresis value you want. (so the pH alarm could stop sounding when the pH recovers 8.9 for example) video on setting alarms
BNC OPTION
For corrosive environments, a BNC connection is not recommended because it can corrode, and thus interfere with accurate measurement. Nevertheless we offer it if desired.
Detailed instructions for pH module manufacturer
Setting Alarms (video)
Calibration (video)
Electrode Instructions from the manufacturer
Press Releases in IEN, Finishing and Coating and Manufacturing.net, Products Finishing, Water Technology Online and Thomasnet
pH Theory (everything you need to know to be a black belt)
Utility file for RS485 communication. Hosted at Sync.com
- Enclosure material………………………………………..ABS
- Gasket material……………………………………………solid PVC elastomer
- Ingress rating……………………………………………….IP65
- LED lens cover……………………………………………..Lexan
- Buzzer diaphragm…………………………………316 stainless steel
- Buzzer body…………………………………………Noryl
- Pushbutton bezels…………………………………anodized aluminum
- Electrical cords……………………………………SJOOW rubber jacket

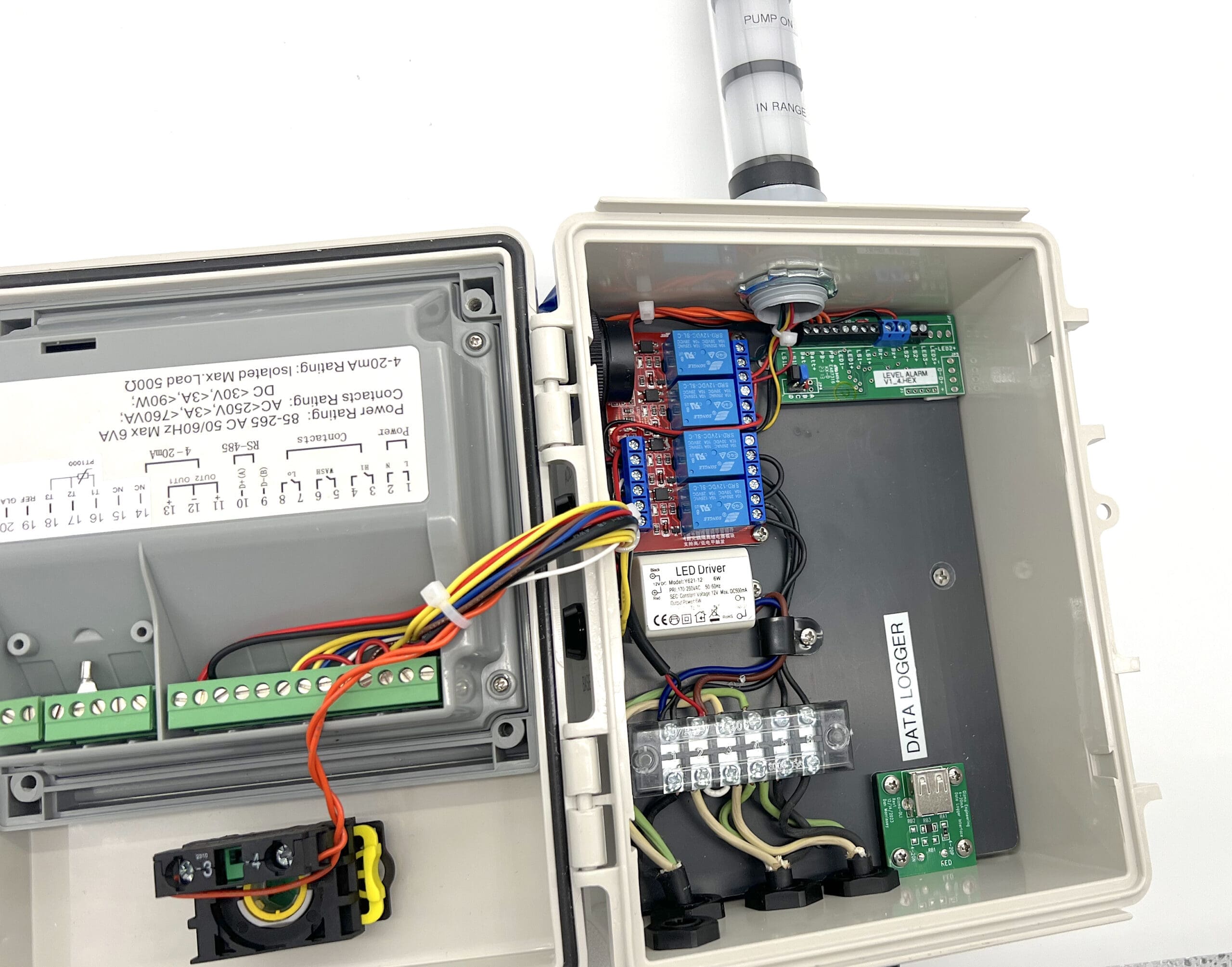

CONTROLLER
- Enclosure dimensions……………………………. 9x6x4 inch
- Enclosure material…………………………………ABS
- Current load for connected pumps………………10A
- Operating voltage…………………………………120VAC
- Electrical cord type…………………………………SJOOW
- Electrical cord length………………………………10 feet
- Pigtail cord lengths…………………………………6 inches
- Buzzer volume………………………………………103dB @ 2 ft
- Buzzer diaphragm material…………………………316 stainless steel
- Communication outputs……………………………RS485 and 4-20mA
- Link to enclosure dimensions

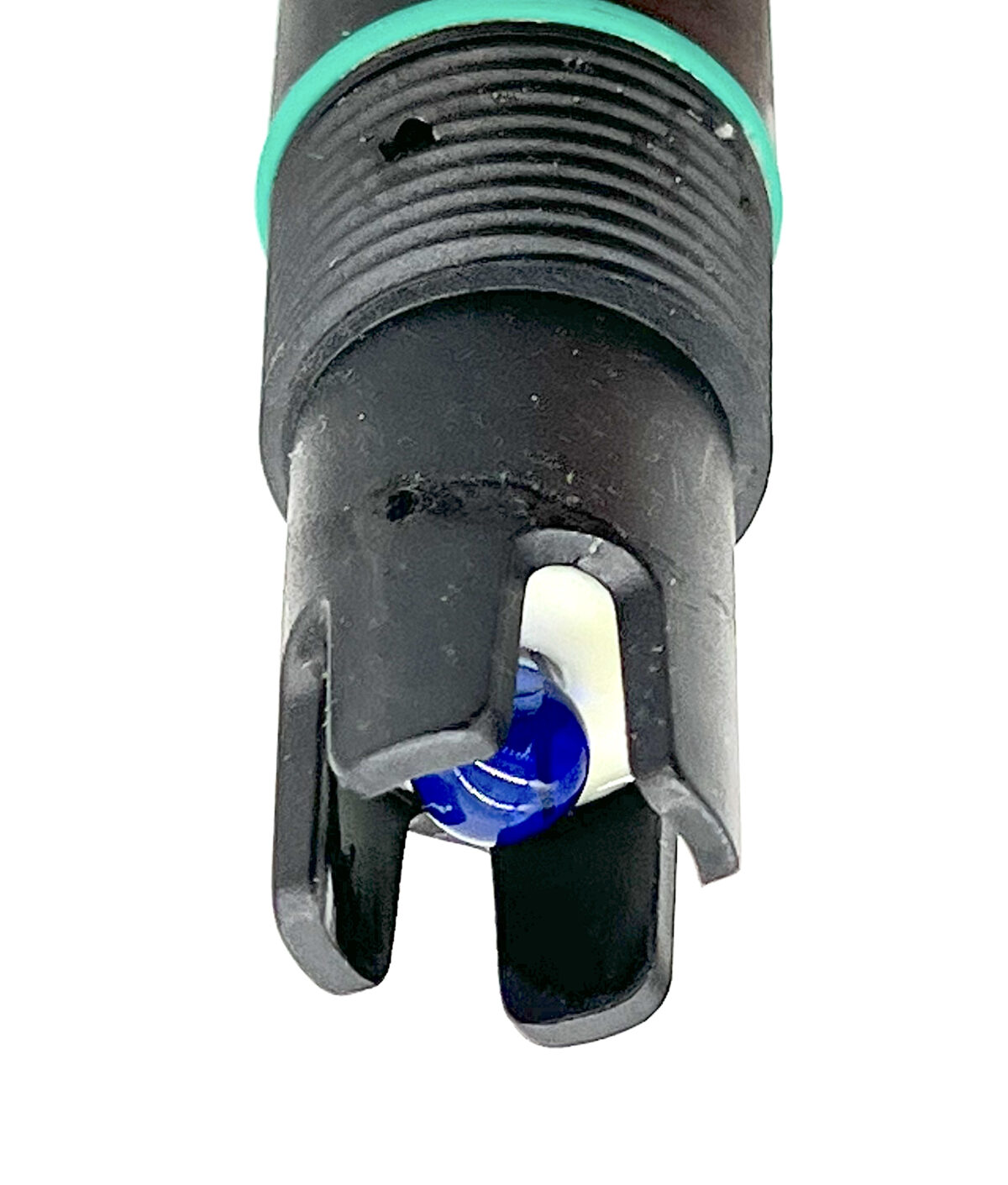

pH PROBE pH-300
Maximum s temperature……………………………80ºC (176ºF)
Electrolyte ……………………………………………solid
Pressure………………………………………………0-0.6 mPa
pH range………………………………………………0-14
Drift rate………………………………………………0.03 pH units/24 hr
Screw thread…………………………………………PG13.5
Cable length…………………………………………15 ft
Junction………………………………………………antifouling annular Teflon liquid junction
Slope…………………………………………………96% (considered good)
Accuracy……………………………………………<0.02 pH
Response time………………………………………10s
Glass Impedance……………………………………<20*10E6Ω
pH PROBE pH-120
Maximum s temperature……………………………60ºC (140ºF)
Electrolyte ……………………………………………solid
Pressure………………………………………………0-0.6 mPa
pH range………………………………………………0-14
Drift rate………………………………………………0.03 pH units/24 hr
Screw thread…………………………………………PG13.5
Cable length…………………………………………15 ft
Junction………………………………………………antifouling annular Teflon liquid junction
Slope…………………………………………………96% (considered good)
Accuracy……………………………………………<0.02 pH
Response time………………………………………10s
Body material…………………………………………PPS/PC
Anitmony Impedance…………………………………<20*10E6Ω
Order Here
pH-1 Controller
$991
pH Probe
Options
REPLACEMENT PROBE
Designed for wastewater applications Specifications in “Specifications” tab.
[pH-300S] $144
REPLACEMENT PROBE
Fluoride resistant probe. Specifications in “Specifications” tab.
[pH-120] $151
