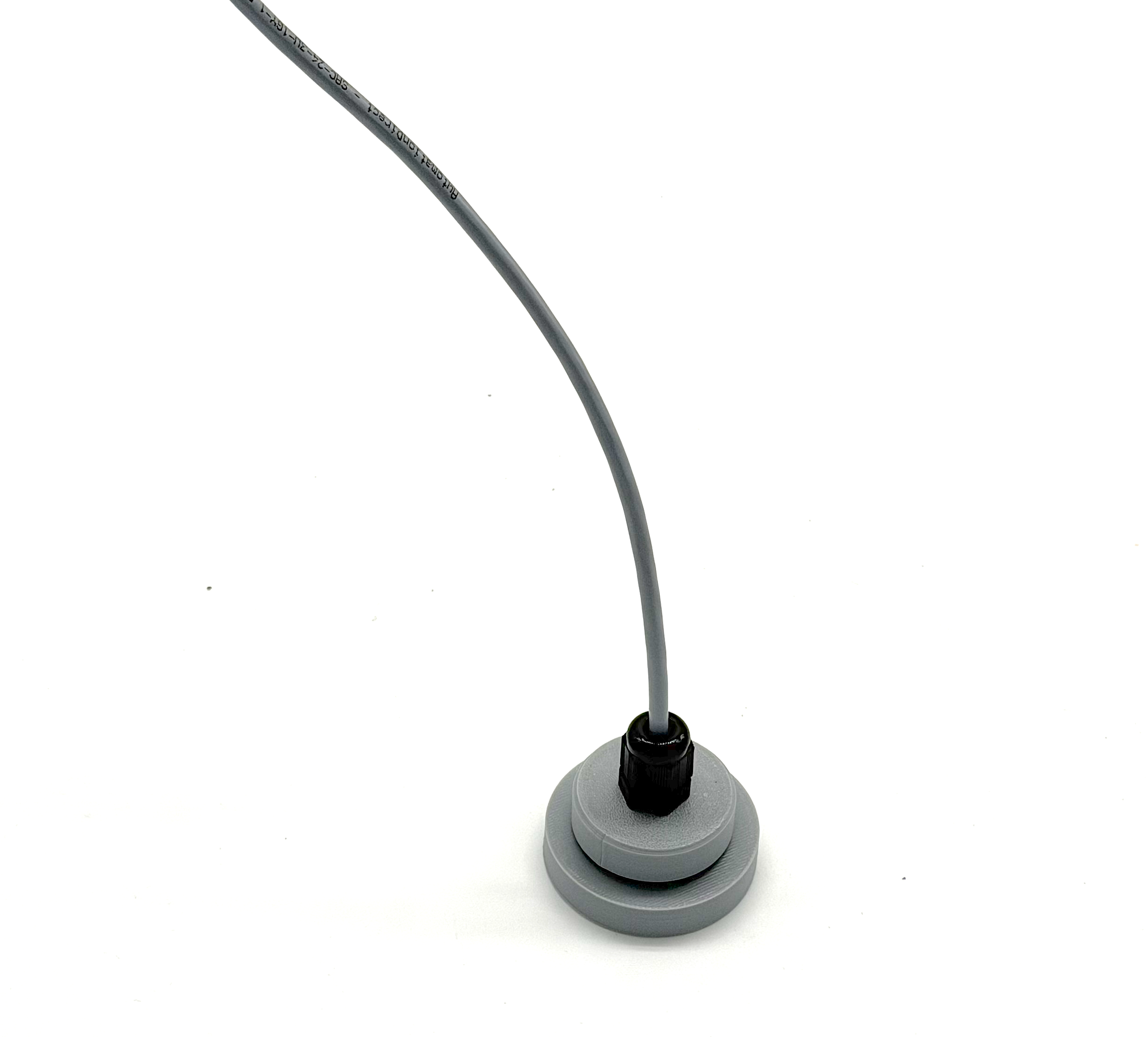

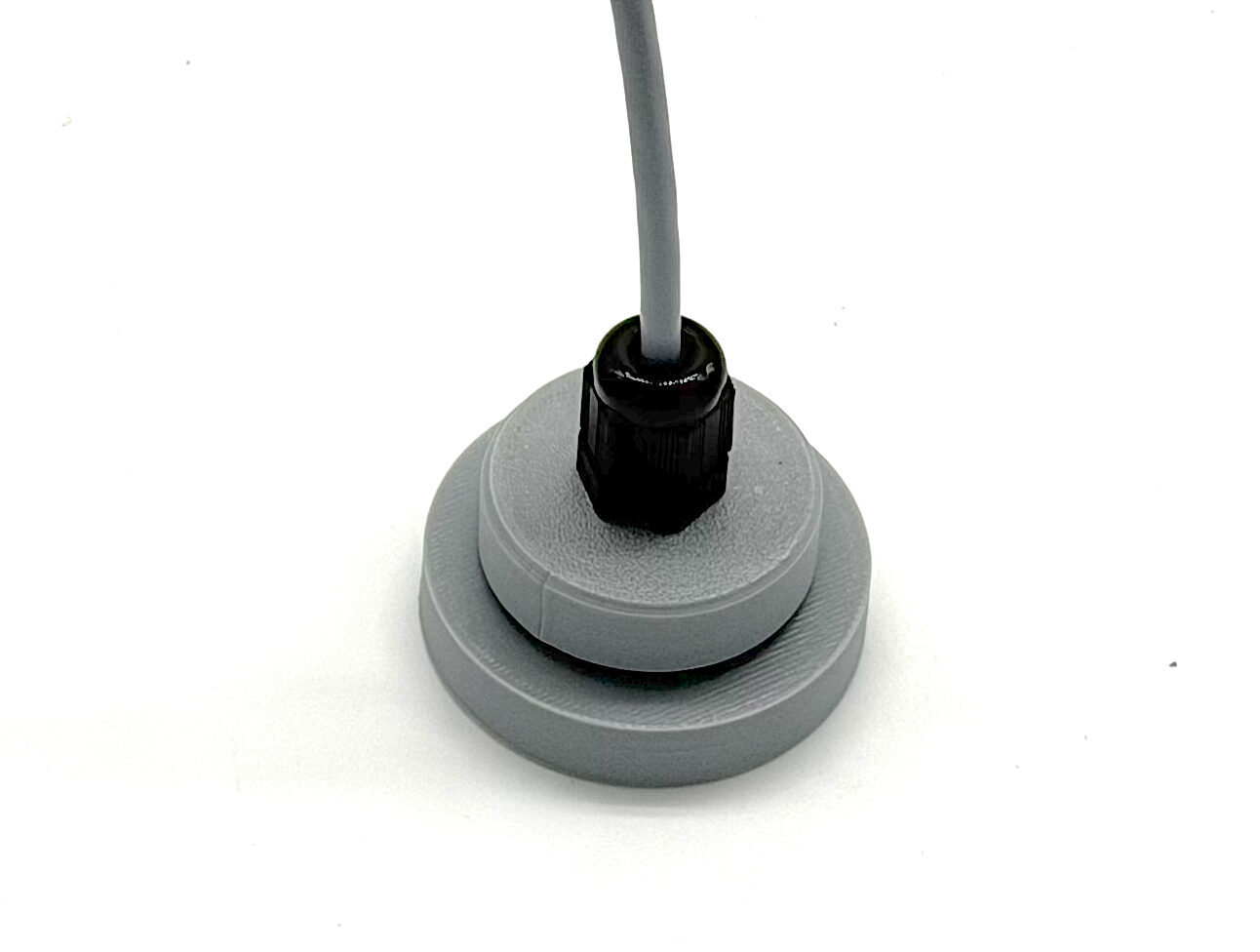

Leak detection senses only a few drop of liquid in containment tanks.
INSTALLATION

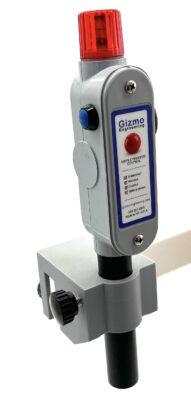

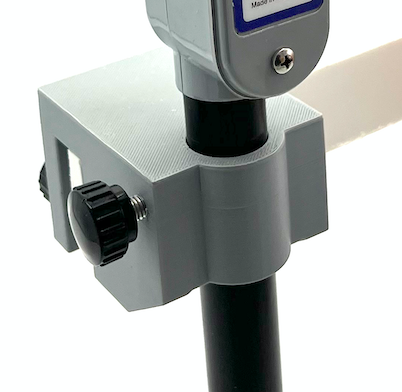

As with our float-switch based level controllers, installation involves just mounting the alarm on your tank and connecting the 9V battery. (or line power if applicable) Position the gold pins so they sense at the point you want. (generally right on the tank bottom) There is nothing to calibrate or adjust.
MAINTAINANCE
There is is nothing to wear out and no moving parts to limit the lifetime of a conductivity sensor.
MODELS
The leak detection alarms can be made in any length of polypropylene pipe.
OVERVIEW

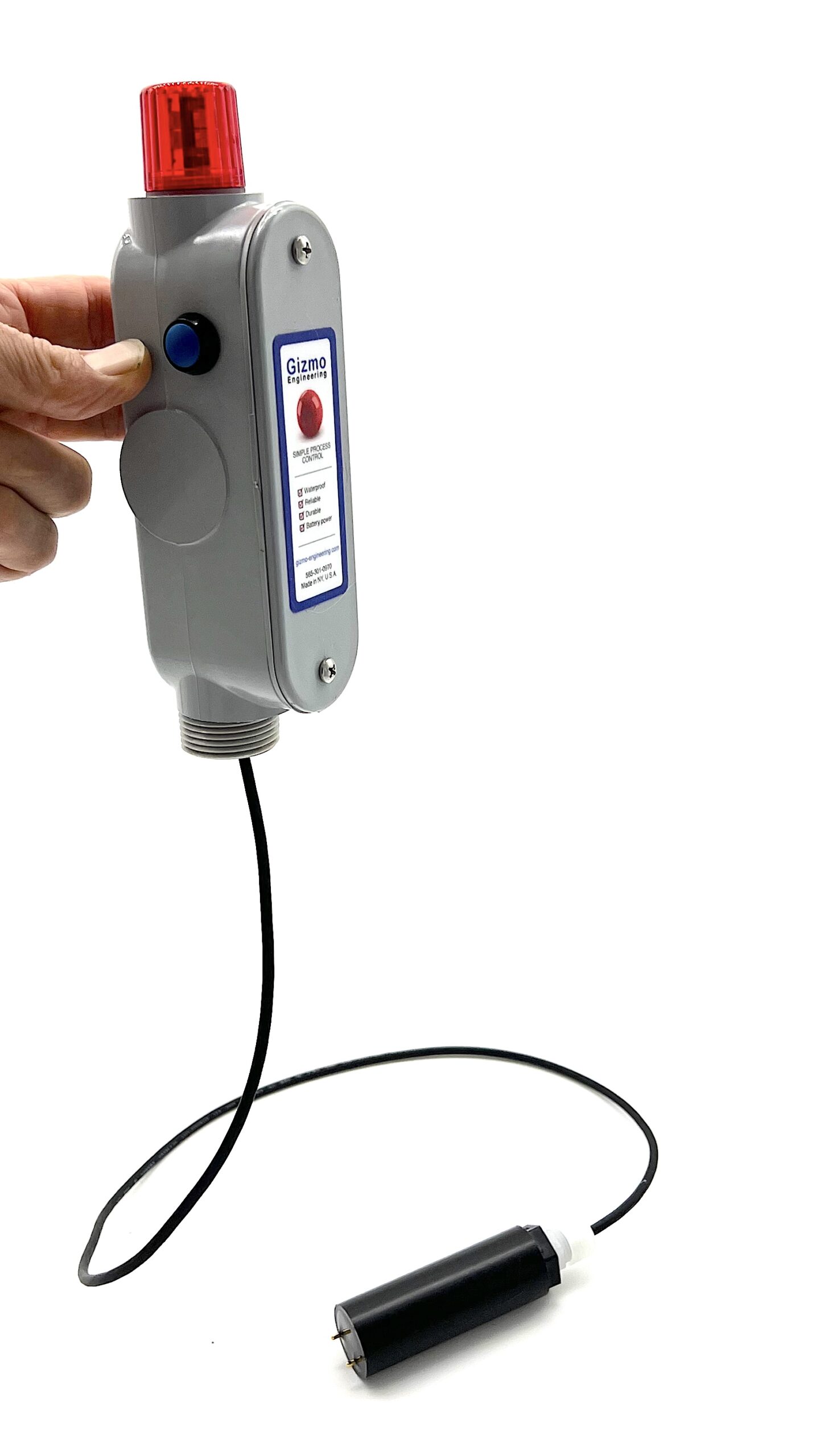

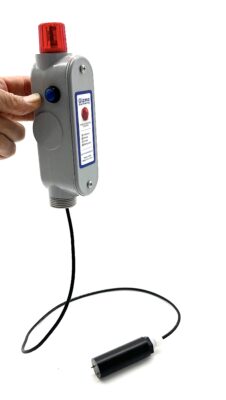

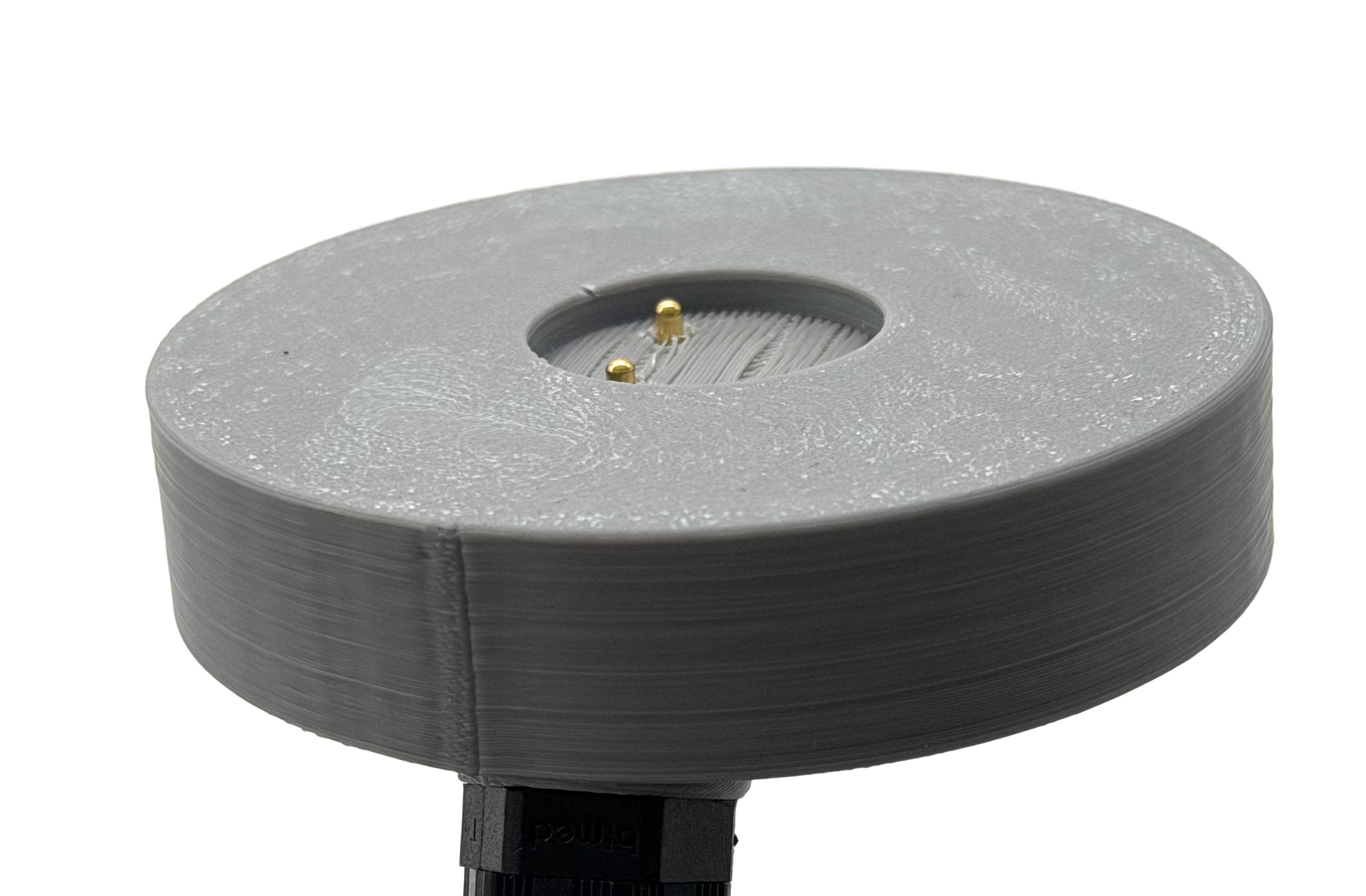

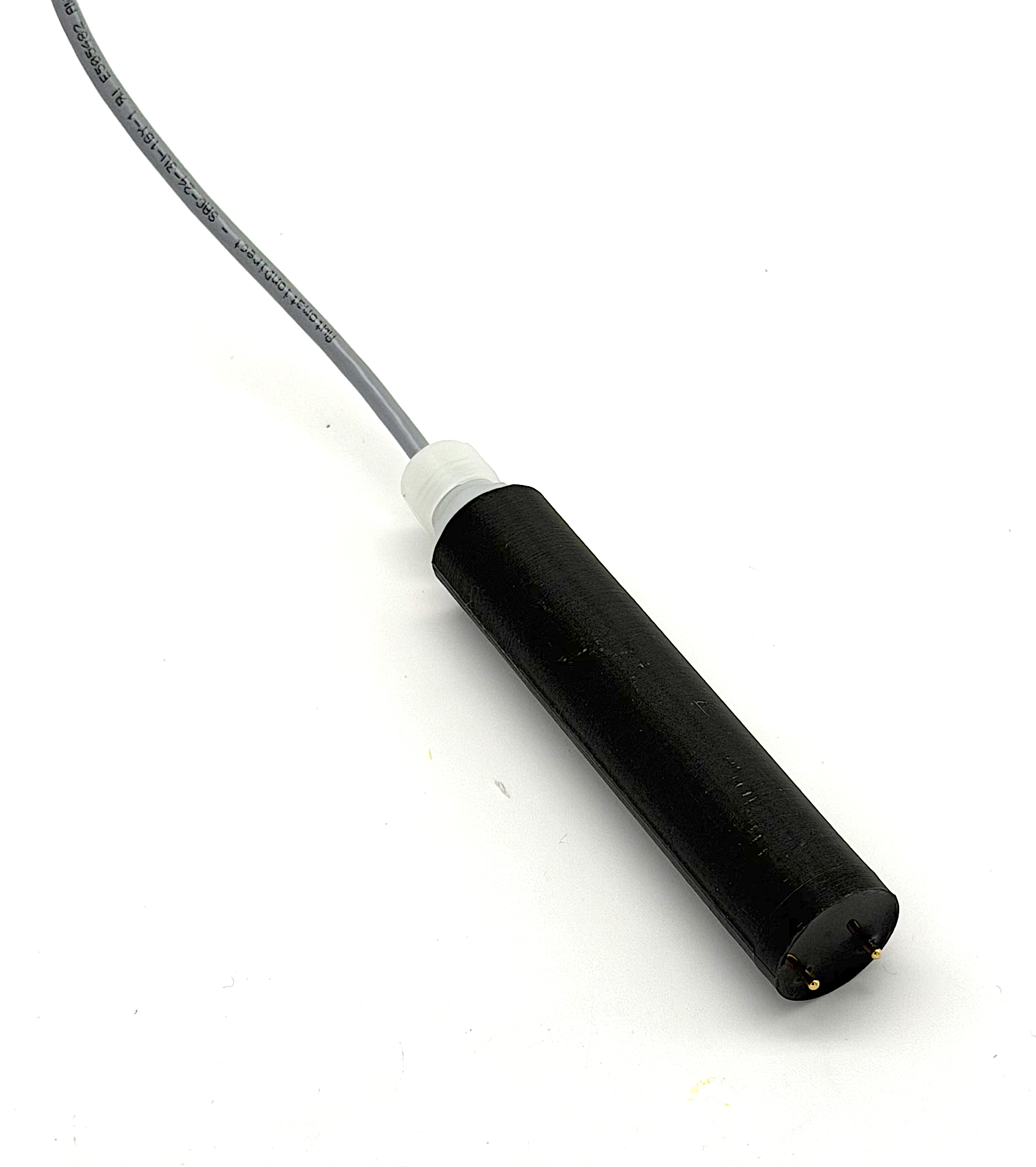

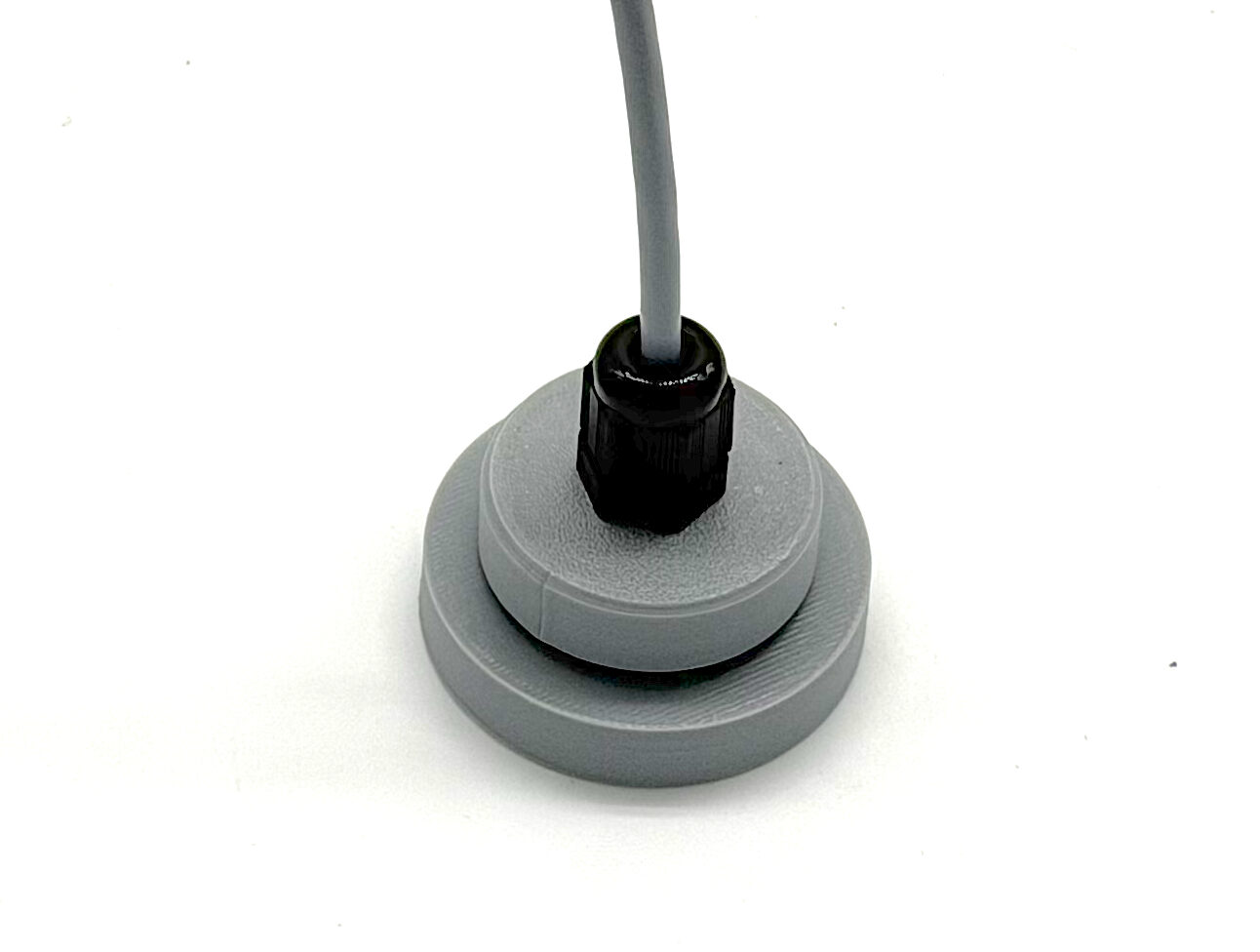

The leak detection alarm triggers an alarm when just a few drops of liquid make a conductive path between the conductivity pins. The pins are gold plated so they won’t corrode. And since the battery lasts for years, and give a low battery alert when the batteries do eventually run low, the alarm can be deployed and then forgotten. There is no maintenance.
WHY CONDUCTIVITY IS BEST
There are other ways to sense
the presence of liquid of course, but nothing matches the precision of conductivity pins to detect a thin film of liquid. This matters because detecting early can give a warning weeks or months earlier than other methods of detection. Perfect for containment tanks where there should not be any liquid.
In addition, the conductivity sensor can be powered by battery – in fact the batteries last so long, there really isn’t any reason to use line power. This is a limitation of capacitance, ultrasonics, tuning fork, optical sensors among other methods.
Instructions coming
Press Release coming
- Pipe material……………………………………… polypropylene
- Pipe O.D (¾” (sch 80)…………………………… 27 mm [1.06″]
- Maximum operating temperature………………190ºF
- Passive current……………………………………10 µA
- Buzzer volume……………………………………103dB @ 2ft
- Gold pin plating thickness………………………20 µ-inch [0.5 microns]
- Sensing distance (max.)…………………………< 1 mm
- Potting compound (surrounding pins……………epoxy Novolac resin
WETTED MATERIALS
POLYPROPYLENE MODELS
Pipe………………………………… Polypropylene
Lens…………………………………silica glass
Sealant………………………………epoxy Novolac resin
KYNAR MODELS
Pipe………………………………… PVDF (Kynar)
Lens…………………………………silica glass
Sealant………………………………epoxy Novolac resin
MODELS
Polypropylene Pipe
High level alarms………T-PC-[depth]
Low level alarms…………………T-PC-[depth]
Kynar Pipe
High level alarm…………………T-KC-[depth]
Low level alarm…………………T-KC-[depth]
Examples for Kynar pipe:
T-KC-10, T-KC-20, T-KC-30, T-KC-40, etc.
Order Here

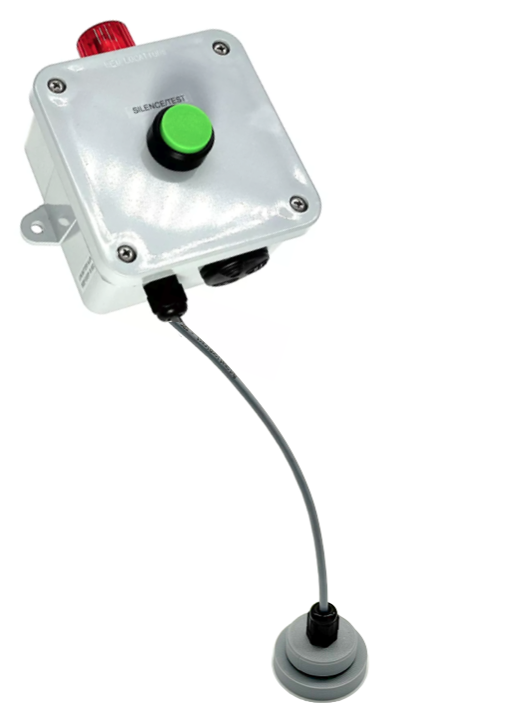

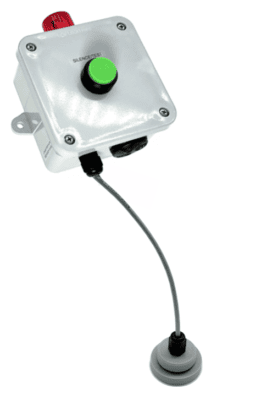

LEAK DETECTION ALARM
Polypropylene Pipe $308
[T-PL]
Options
WIFI communication.
Sends a message to your email or text message to your phone. Easy setup. No recurring fees. More info.
[WF-1] $185
