LOSS OF ROTATION ALARM detects when PLATING BARRELS STOP TURNING. Stops scrap and rework.
STOP ROTATION FAILURES…
- Waterproof – meant for tough industrial environments.
- Loud 103dB warbling tone cuts through the loudest industrial noise.
- Rugged. Built for rough, wet and corrosive environments.
- Simple. Easy to use like a kitchen timer.
- Compact enclosure measures only 5 x 5 inches.
- Easy to set the time.
- Everything included
ROTATION STOPPAGE
Plating barrels stop rotating for all sorts of reasons – broken or worn gears, broken motors, broken chain dirves, failed electronics, barrels out of the saddle, to name a few. Whenever one of these happens and the turning stops, it costs money or time. This loss of rotation alarm will prevent this lost work due to rotation stoppage by giving a loud alarm and flashing LED. Once installed there is nothing to do as its fully automatic. The only action for an operator to take is to silence the buzzer if an alarm occurs.
OPERATION

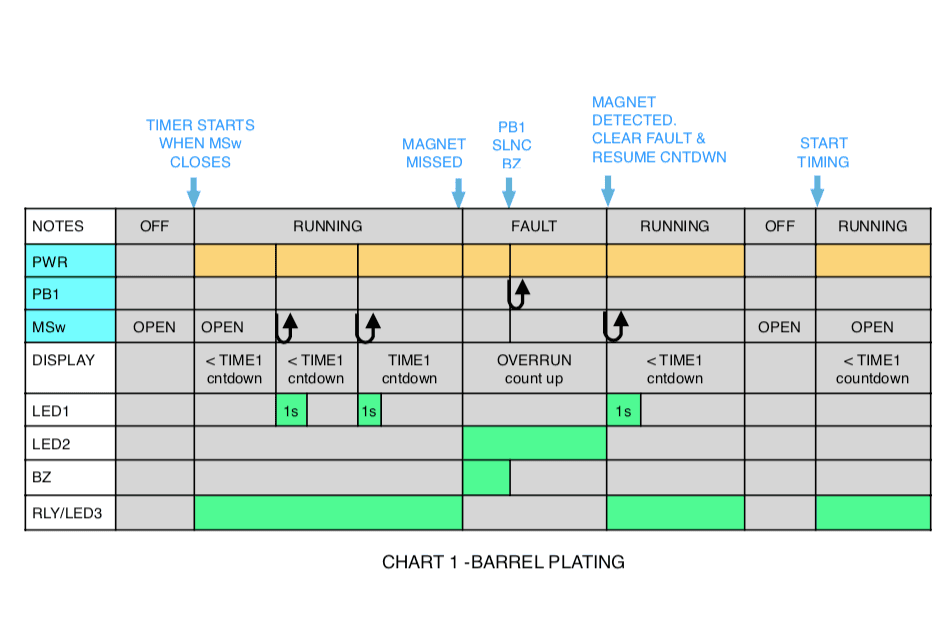

The Plating Barrel Rotation Alarm is activated when a barrel enters a tank by a switch mounted on the tank rim. The preferred switch for this is usually an inductive proximity sensor, but other types of switch like a lever arm switch will also work. Once the barrel has been detected in the tank, the timer starts counting down. After that, it then must detect that the barrel is rotating, by detecting a magnet on the barrel. or else an alarm is given. The magnet is mounted on the rotating cylinder, and is detected by a probe mounted within detecting range. (within 40mm distance) The rotation of the cylinder causes the magnet to pass in front of the probe, and this registers with the electronics box and the front button on the electronics box illuminates briefly. If however, the magnet is not detected in time, an alarm sounds. The alarm even knows if the rotation stops with the magnet stuck in front of the sensor probe. In this event, and alarm is also given.
INSTALLATION

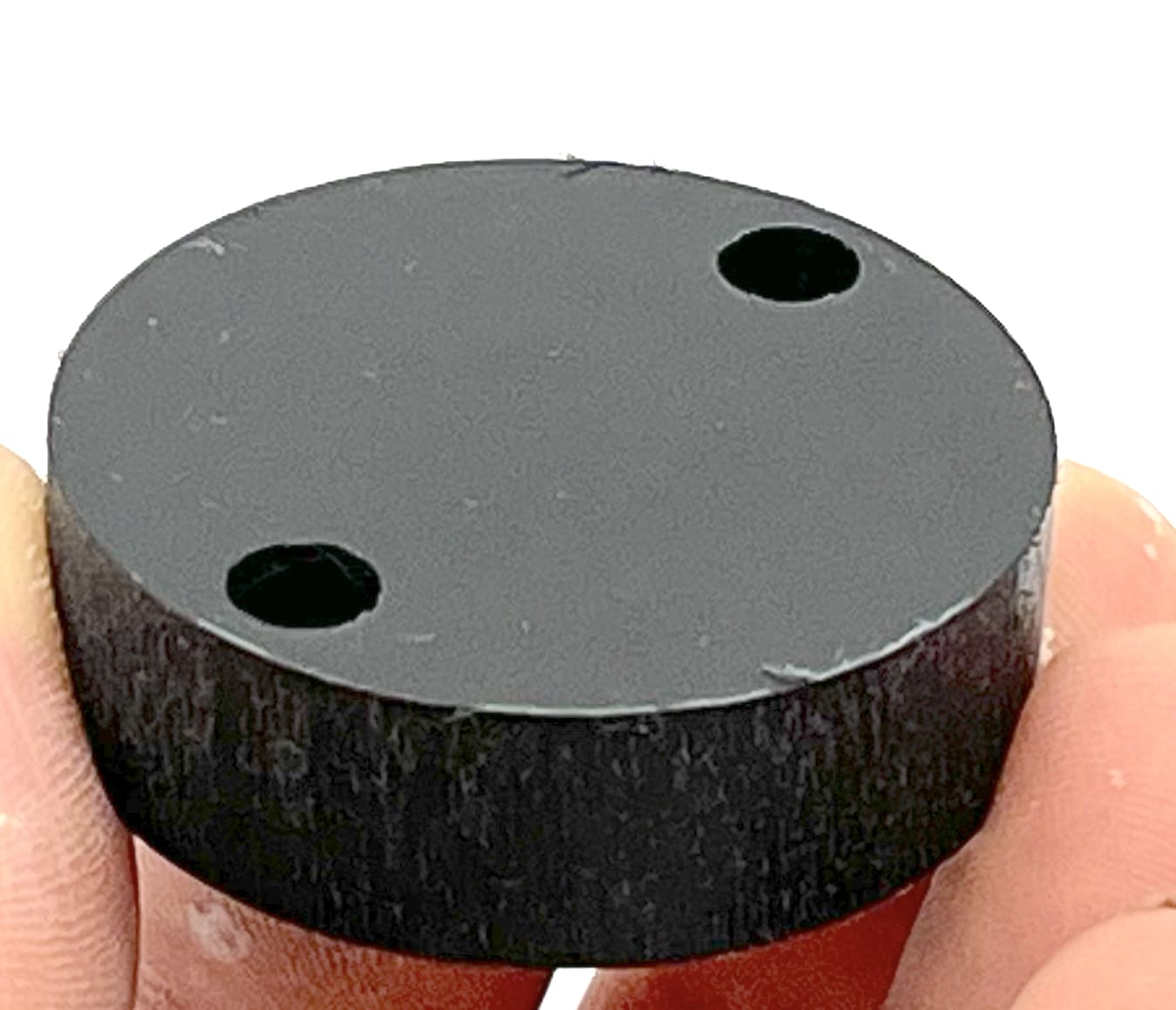

- The magnet in mounted somewhere on the rotating plating barrel. The end gear is a convenient location. To mount the magent, a titanium screw is provided which simply goes through the countersunk hole in the magnet.

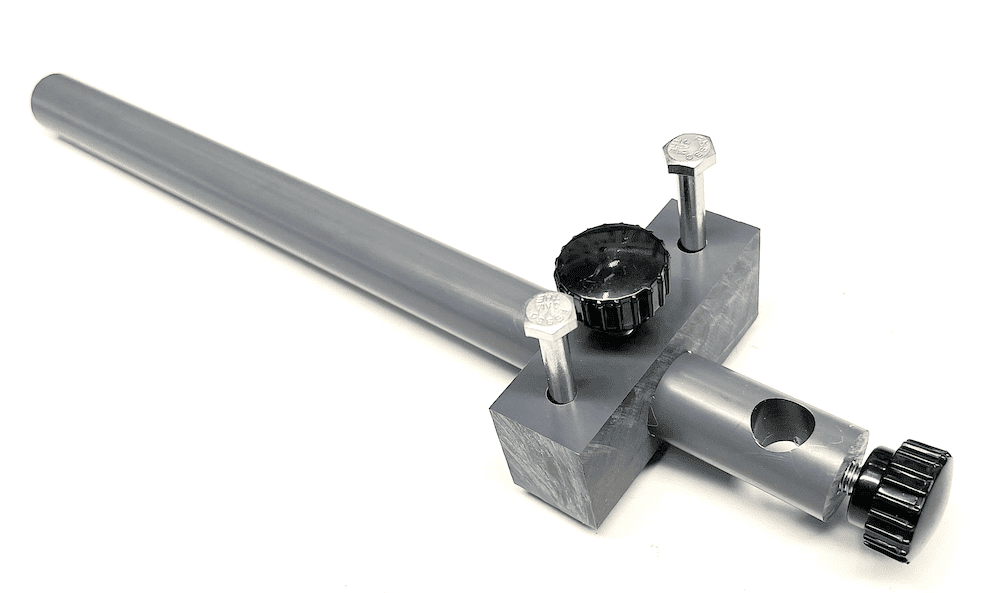

- Mount the reed switch probe on the tank where it will sense the magnet. (within 1 inch of the magnet) The mounting kit included makes this easy. installation video here.
- Mount the electronics box on the outside of the tank.

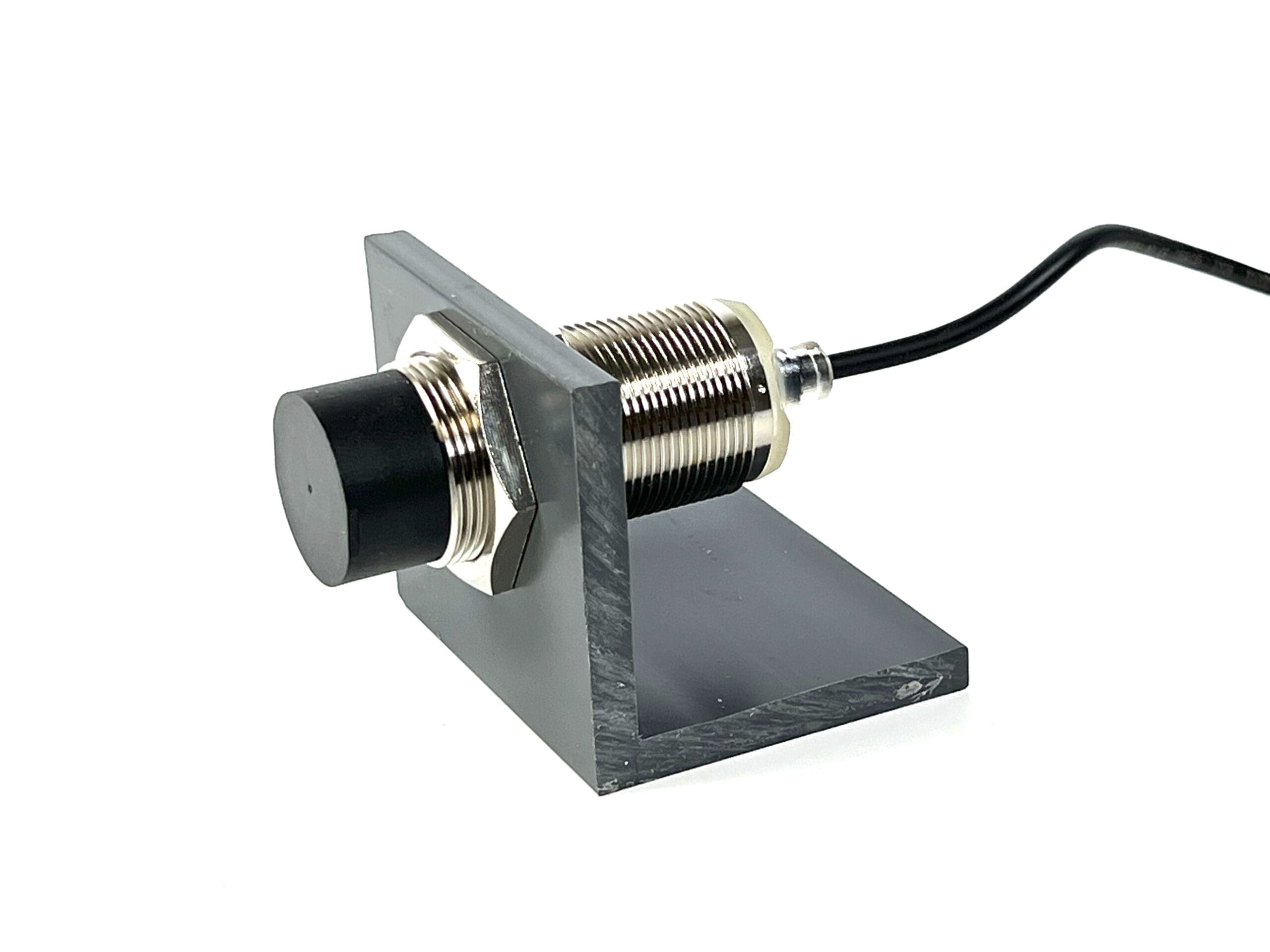

- Mount the pre-wired proximity switch on your tank. The proximity switch has a range of up to 25-35mm depending on the size of the target.
- Setting the preferred time is as easy as setting a kitchen timer by pressing the internal buttons.
OTHER DETAILS
The probe that detects the magnet comes in either 12 or 16 inch lengths. To choose the best length, use the depth of the barrel axis below the tank rim.
In addition to rotation failure, the device can also monitor the time of rotation for applications where the barrel can slow down. (due to a heavy load in the barrel for example)
OTHER APPLICATIONS
The rotation alarm was developed for plating barrels originally, but they are used in many different industries. Any equipment that rotates, oscillates, agitates, or conveys at reasonably low speed can be alarmed with the rotation alarm. (so motors turning at 3000 RPM would not be candidates) The only requirement is that the magnet cycle past the detecting probe. Examples of other successful applications we have equipped with rotation failure alarms are rotary drum filters, and grinding machines that activate the rotation stoppage alarm based on air pressure. (video)
RA-5 BASIC OPERATION
- Electronics Enclosure material……………………PVC
- Gasket material…………………………………… solid PVC elastomer
- Ingress rating……………………………………… IP65
- LCD window…………………………………………Acrylic
- LED lens cover…………………………………… Lexan
- Enclosure cover screws.…………………………316 stainless steel
- Front pushbutton………………………………… 22 mm
- Liquid temperature range…………………………up to 50ºC [190ºF]
- Magnet probe……………………………………… polypropylene
- Probe seal………………………………………… Novolac eopxy resin
- Probe cable material………………………………PVC, 0.032 inch jacket thickness
- Power cord………………………………………… SJOOW rubber covered, 18AWG
- Buzzer diaphragm………………………………… 316 stainless steel
- Mounting brackets………………………………… PVC
- Fasteners……………………………………………316 stainless steel
- Magnet………………………………………………thermoset rubber cover
- Magnet screw………………………………………titanium, M3 self-tapping
- Enclosure dimensions………………… 5 x 5 x 2 inch
- Display opening………………………… 54 x 24 mm
- Ingress protection……………………… IP68
- Digit height……………………………… 18 mm
- Sound pressure level…………………… 103dB @ 2 feet
- Timing accuracy………………………… ± 0.1%
- Timing precision (repeatability)………… ± 0.001%
- Power when not alarming……………… 11µA
- Power when alarming…………………… 30mA
- Relay carrying current……………………15A @120VAC
Order Here
RA-5

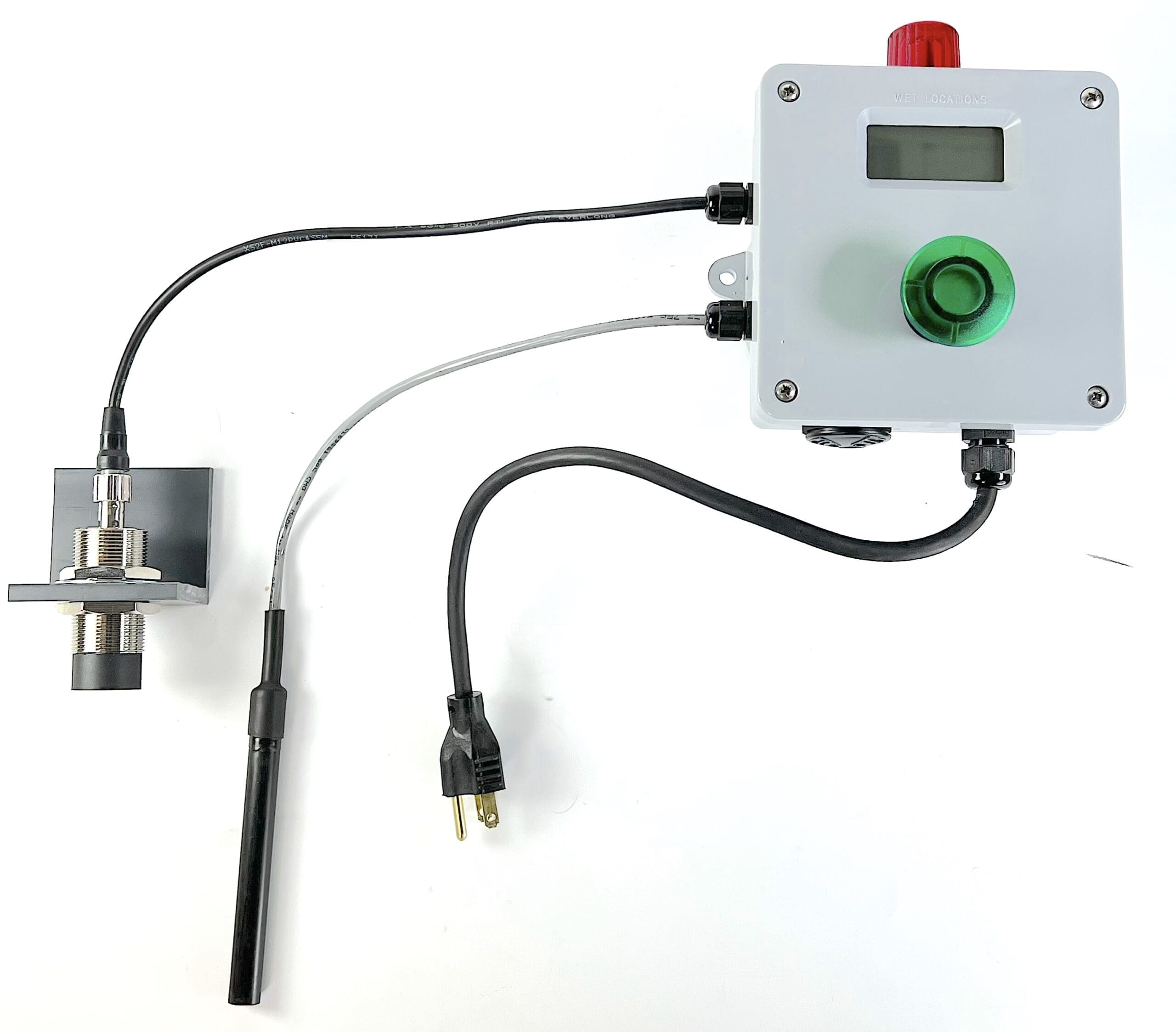

Barrel Rotation Alarm including one magnet, titanium mounting screw, proximity switch and bracket, probe and mounting bracket for the probe with 316SS fasteners. (everything needed)
$699
Options
EXTRA MAGNETS

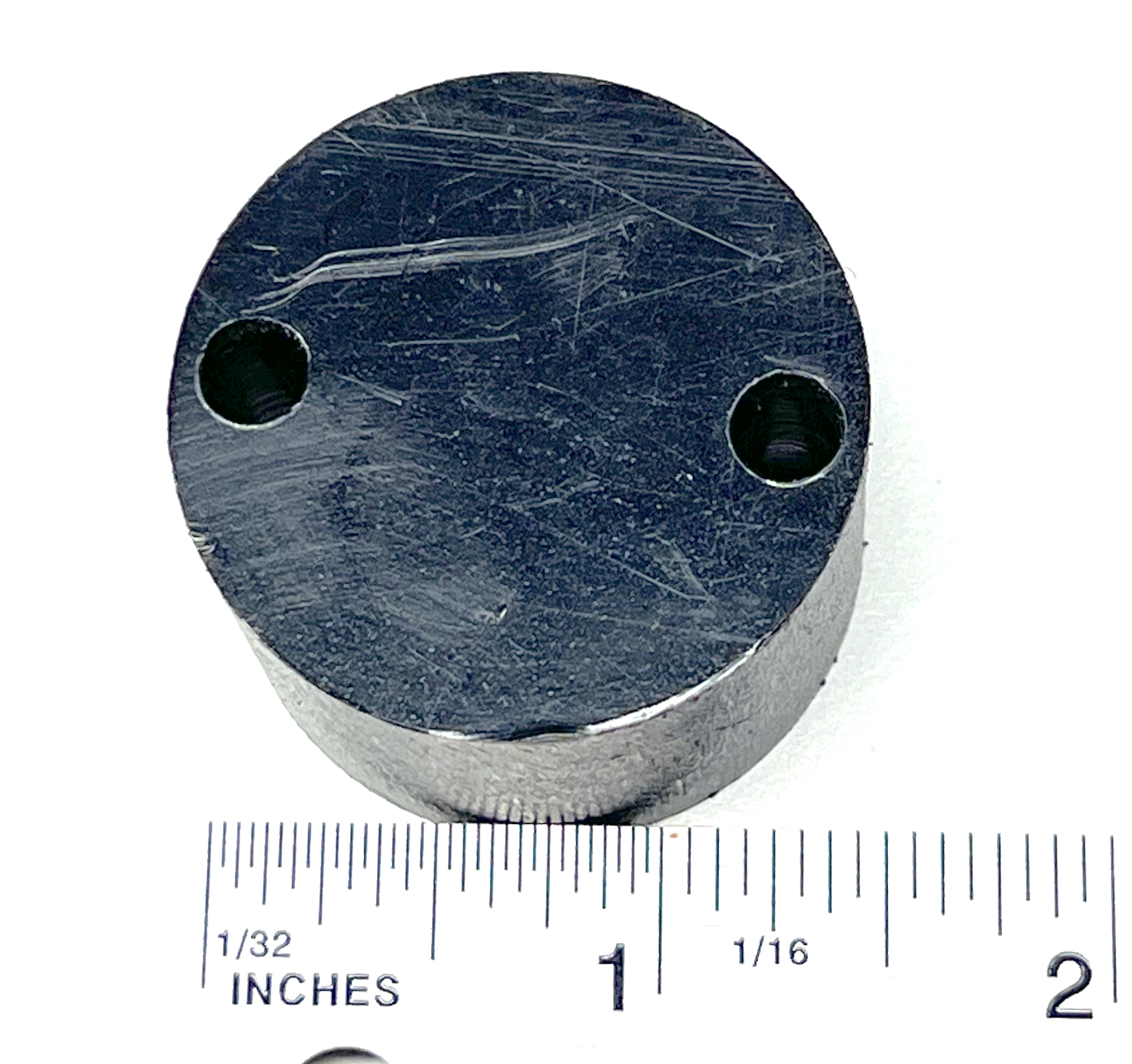

Rare earth magnet encapsulated in PTFE. Each magnet comes with a titanium mounting screw. (M3 x 15mm) Each barrel requires one magnet.
$26
TELESCOPING BRACKET FOR PROXIMITY SENSOR
In some situations, mounting the proximity switch vertically makes sense. This telescoping mounting bracket makes it easy to anchor to the lip of a tank, and then bring the proximity switch up to the correct height. Pre-drilled holes accept ¼-20 screws. Standard height adjustment range 4-8″.
[MB–T]
