The IBC LOW LEVEL ALARM prevents running empty with a flashing LED and loud buzzer.

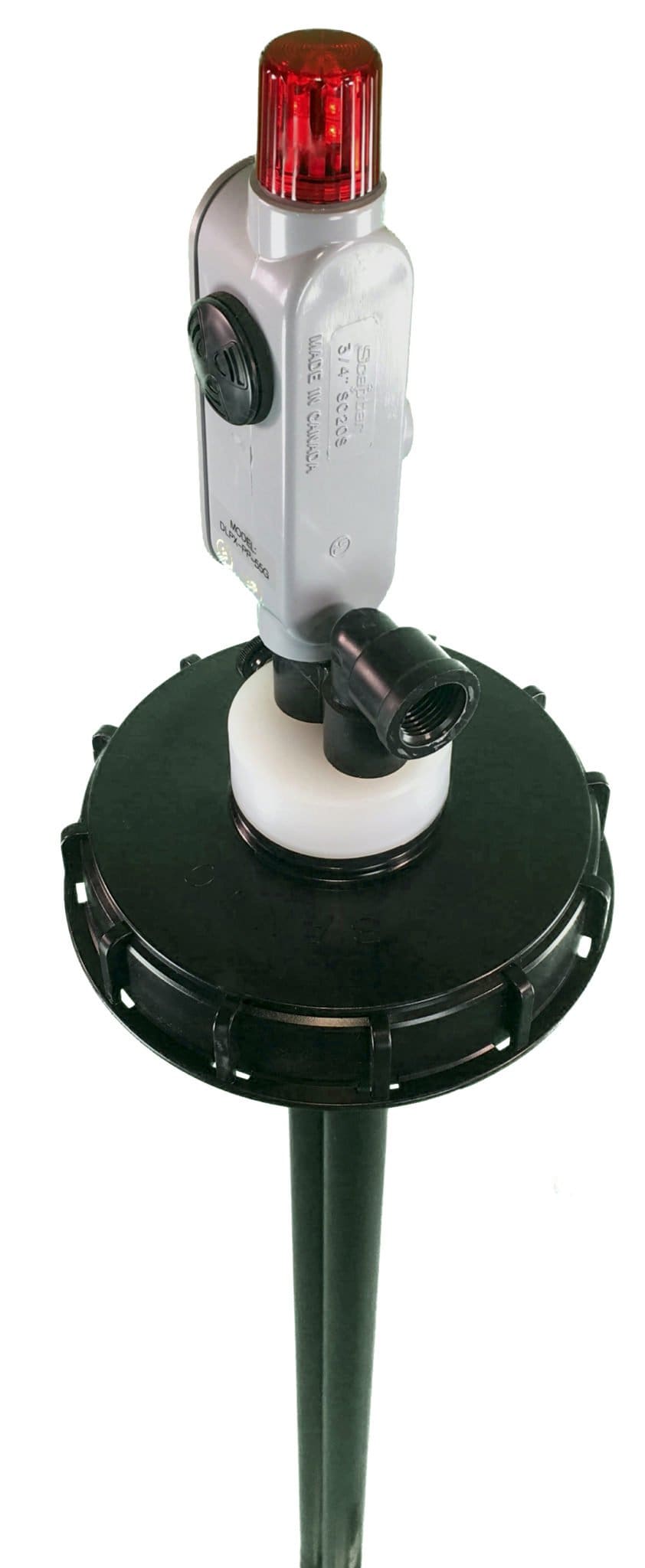

ILPX-PP IBC ALARM
Stop IBC tanks running empty…
- Always on duty because the liquid tube is permanently attached to the alarm unit.
- It can go anywere because it is battery powered. No need for power outlets.

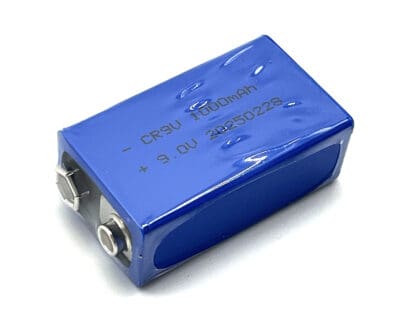

- Uninterruptible battery power lasts for years. Lithium battery included.
- Loud warbling tone cuts through the loudest industrial noise.
- Rugged. Built for rough, wet and corrosive environments.
- Protects your pumps from debris with an intake screen.
- No wetted metal parts.
IBC TOTE TANK ALARM for low liquid level makes sure your process will never run out of chemicals. When liquid level is low, an IBC Alarm emits a very loud 103dB beeping sound, and flashing LED.
Uninterruptible battery power works through power failures, can’t come unplugged, or be defeated. And, because the Drum Alarms don’t use any power until alarming, the batteries last for years.
Float switch is protected inside a pipe. The float is immune to abuse from getting knocked around during transfer between containers. Years of reliable service.

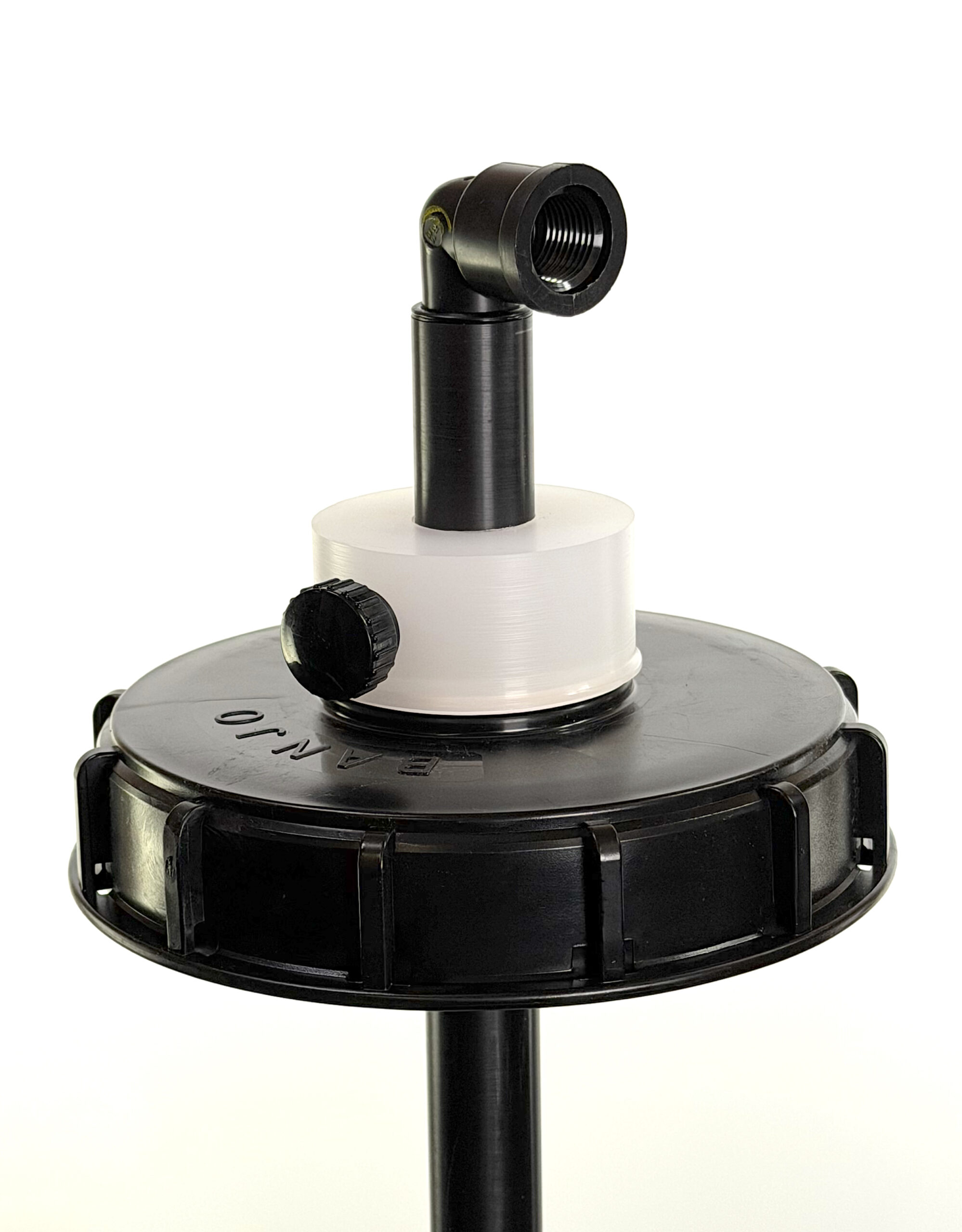

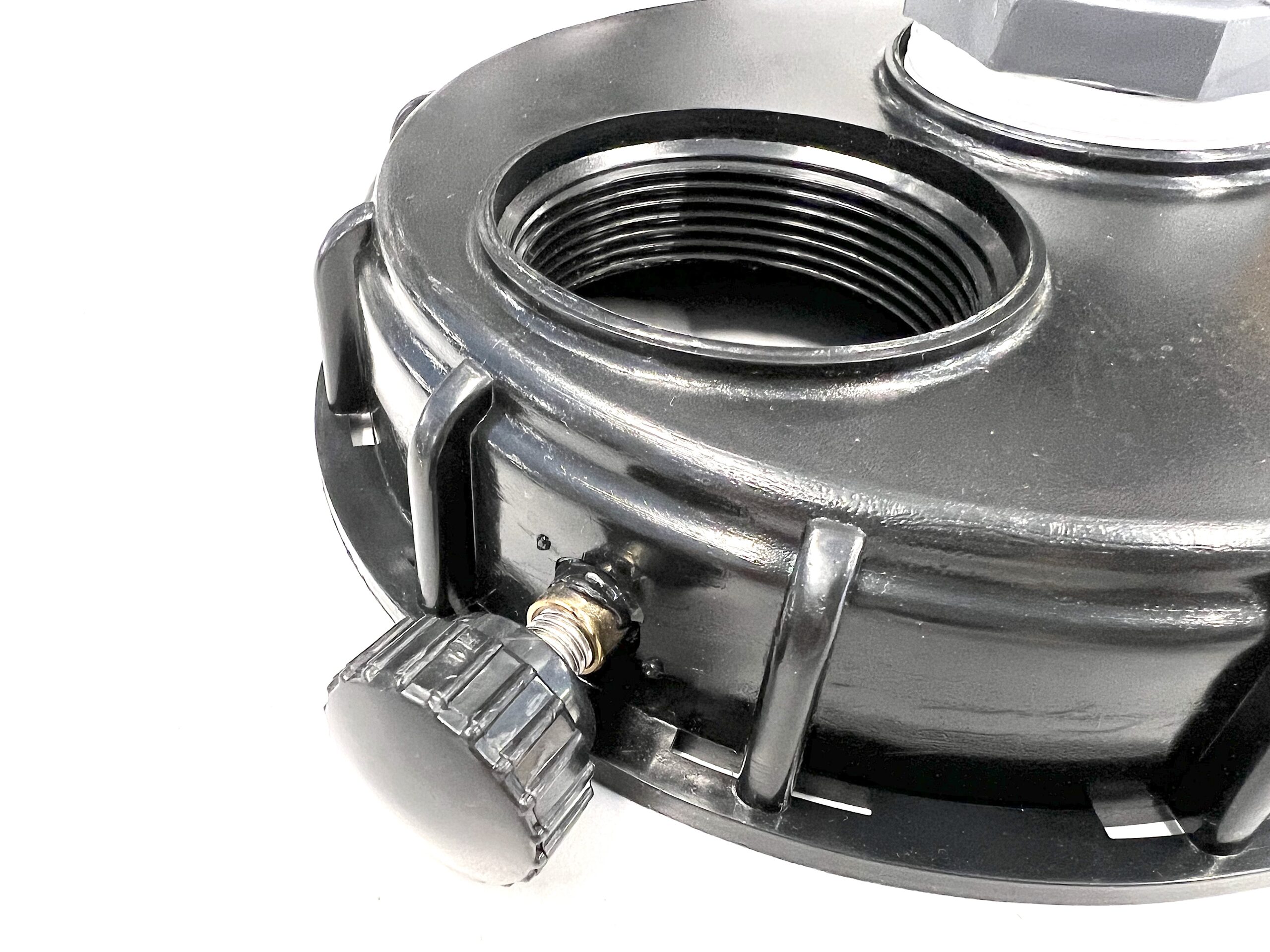

Adjustable depth to fit any size tote tank. Simply loosen the thumb screw to slide pipes to correct depth to a maximum of 53 inches. (this is slightly deeper than a standard 330 gallon Mauser IBC tank which is 48.5″)
Feed tube is permanently attached to the float switch, so the level alarm is always on duty.

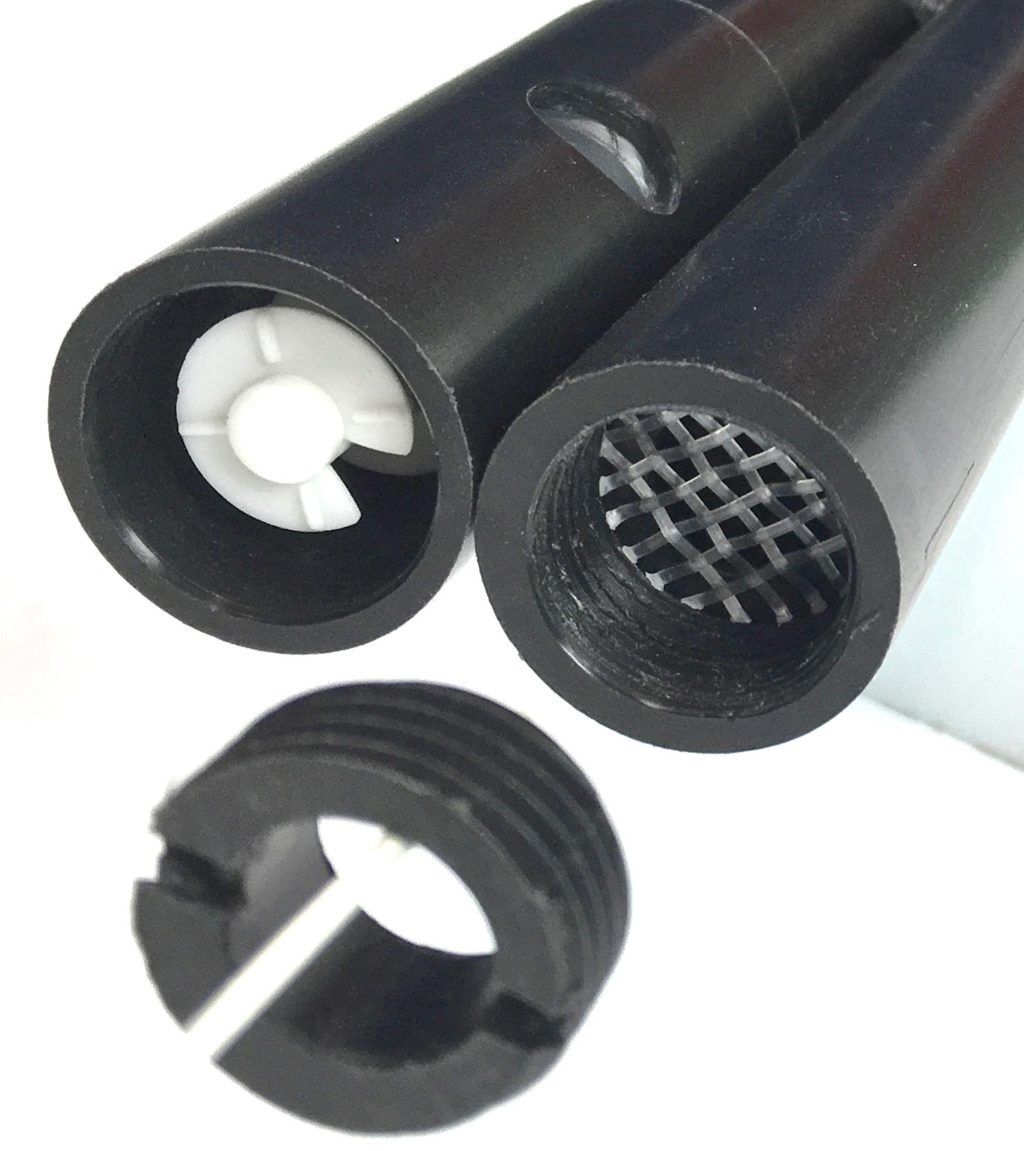

Removable filter screen on the suction pipe guards your pumps from debris or crystals. A replaceable check valve can be easily inserted in-line to prevent liquid from draining when transferring to new containers if needed.
Check valve if the IBC will be transferred to different tanks by lifting it up and out then a check valve is a good idea to stop backflow of the chemical. more info here

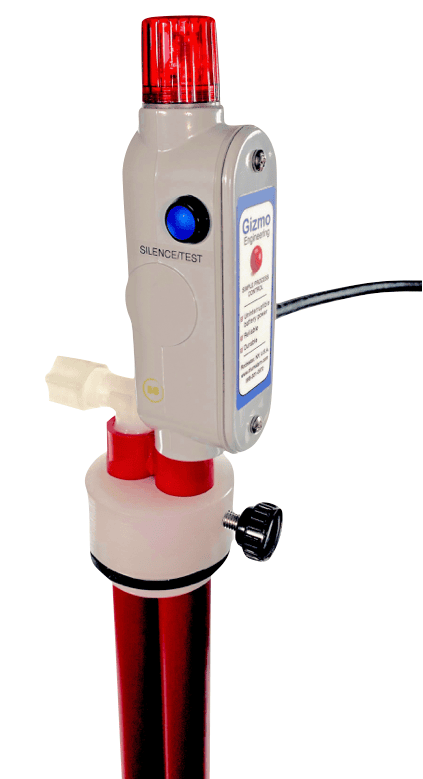

Push button to test the battery or to silence the alarm is included. Includes different field-settable behaviors like snooze alarm, tank filling modes. In the default mode the LED to continues to flash after the button is pressed to silence the buzzer. In the tank fill mode the LED and buzzer both turn off until the next high level event. (resets itself automatically) models have polypropylene floats, and polypropylene piping so all wetted parts are polypropylene.
MODELS
The products can have a liquid suction pipe included as part of the unit, or without. They can be made from polypropylene or PVDF or SS when required.
The lid is always a 6 inch Buttress thread, which is standard in the industry.
Models without a suction pipe start with model number ILK.
Models with a liquid suction pipe start with ILP, (for polypropylene) or ILK. (for Kynar) For these models, a flowmeter is an option that will provide a convenient visual indicator of the flow. (this option is only for the polypropylene units)
We sell the suction pipes only. Please contact us for price and availability.
SLIP-ON LID OPTION
PHYSICAL SPECIFICATIONS
- Pipe Working Depth………………… 1300 mm [51 inches]
- Pipe diameter………………………… 3/4″ (sch 80)
- Pipe O.D. ………………………………72 mm [1.06″]
- Pipe material ………………………… polypropylene (chemical grade)
- Flowmeter ball ……………………… silica glass, 1/4 inch diameter
- Flowmeter material.………………… acrylic
- Weight …………………………………
- Pipe mounting Plug……………………Polyethylene, 2 inch NPS thread
- IBC lid.………………………………… 6 inch Buttress thread, glass-filled polypropylene (black)
- Drum Plug Gasket material.………… Buna rubber
- Thumbscrew threads…………………304 stainless steel, M8
- Thread on suction pipe elbow.………1/2″ NPT
- Suction Pipe I.D.………………………18 mm [0.71″]
- Bottom foot screen……………………17 x 17 mesh, polypropylene
Specification datasheet for ILP-PP and for ILP-KK

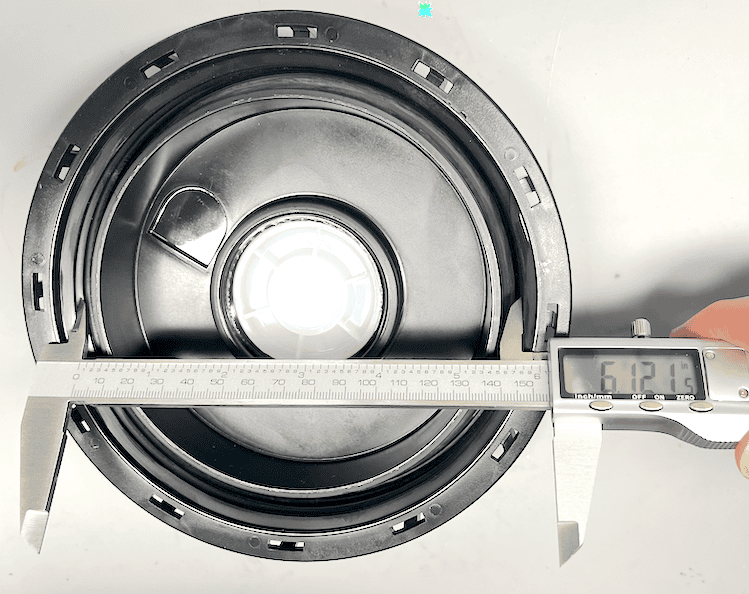

Image of a measured IBC lid here.
Some Chemicals Commonly Used With this product:
- Aqueous Ammonia (conc.)
- Aqueous solutions to 100°C
- Hydrochloric acid (conc.)
- Nitric acid (30%)
- Oils (including waste oils)
- Potassium carbonate (40%)
- Sodium hydroxide (50%)
- Sulfuric acid 70%
- Sodium Hypochlorite
The following are not compatible with the acrylic flowmeter:
- Sulfuric Acid 90%+
- Lactic acid
- Peracetic acid (conc.)
- Ketones
ILK
ILK models are available in either Polypropylene ( ILK-PF) or Kynar material. (ILK-KK)
ILP
ILP models are given in the chart below.
EXAMPLES
With flowmeter No flowmeter
ILP-PF ILPX-PF (polypropylene)
ILK-KY ILPX-KK (Kynar)
Order Here
WITH 3/4″ SUCTION PIPE
WITH FLOWMETER
Polypropylene pipe and float switch
Model ILP-PF
$548
WITH 3/4″ SUCTION PIPE
NO FLOWMETER
Wetted materials either polypropylene (ILPX-PF) or Kynar (ILPX-KK).
NO SUCTION PIPE
(level alarm only)
Choice of wetted materials, either polypropylene (ILK-PF) or Kynar model ILK-KK.
Options
PLC Output

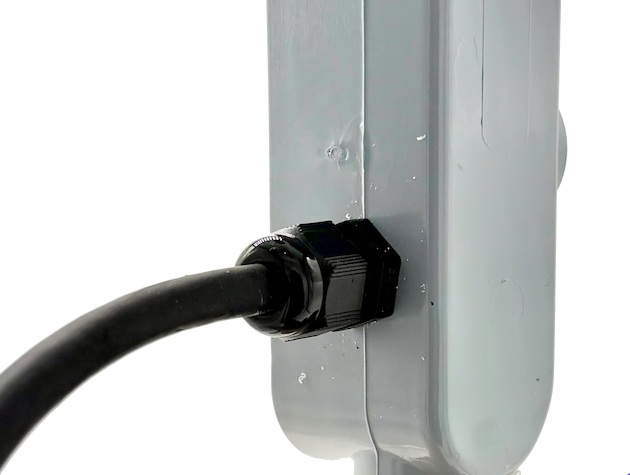

A circuit board allows you to select N.C. or N.O. relay output to your PLC. Input 24VDC from your PLC, dry contact output. For other voltages or outputs please contact us. Includes silence feature for the buzzer. Includes 10ft of communications cable. more info
[PLC1] $84
Extra cable
Extra cable length over the standard length of 10 feet that’s included. Heavy 0.032″ jacket for superior durability. Four stranded conductors x 24 gage.
[C4] $1.28/ft
Relay Output with Cord
Switches a relay to control pumps or solenoids etc. Silences & tests alarm. Piggyback plug makes hookup easy. Instructions here
[RLY-AC] $107
AC Power Cord
When plug-in AC power is preferred. Comes with 3-prong plug and 8-foot rubber-jacketed cord. Power convertor inside box.
[AC-NA] $51
WIFI communication.
Sends a message to your email or text message to your phone. Easy setup. No recurring fees. More info.
[WF-1] $185
Wireless Transmitter & Receiver
Wireless transmitter is put inside the level alarm which sends a wireless signal to the receiver. Buzzer is in the receiver instead of at the tank. A 10A relay is available in the receiver.
more info
[W2] $275

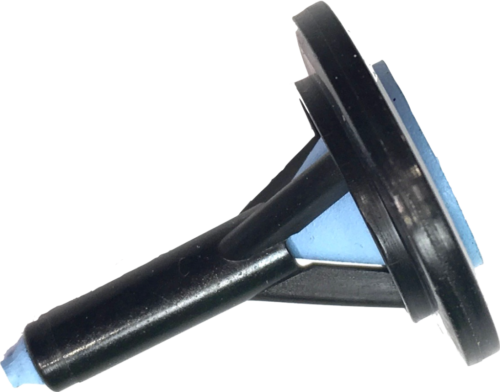

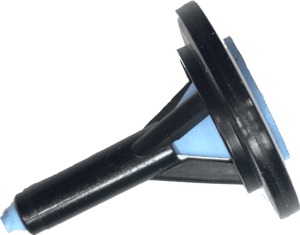

Check Valve
Optional check valve for use with diaphragm pumps, it stops the liquid from draining out of the feeding pipe during transfer to a new container. Eliminates re-priming pump. Inserts in the suction pipe.
[CV-V]
Tank Vent Cap
3/4 inch size vent cap installed on lid allows more air exchange for high flowrates. Screen keeps out debris. more info
[VC-IBC] $14
Slip-on IBC Lid
A regular IBC lid with the threads taken off so it slips on and doesn’t need to be screwed on for fast tank changes. video link
[IBC-SL] $55
Buzzer Volume Control
Sometimes our buzzers are too loud. Snap-on “muffler” reduces the volume by 20 db and anywhere in between just by rotating the slots. [V-1] $7
