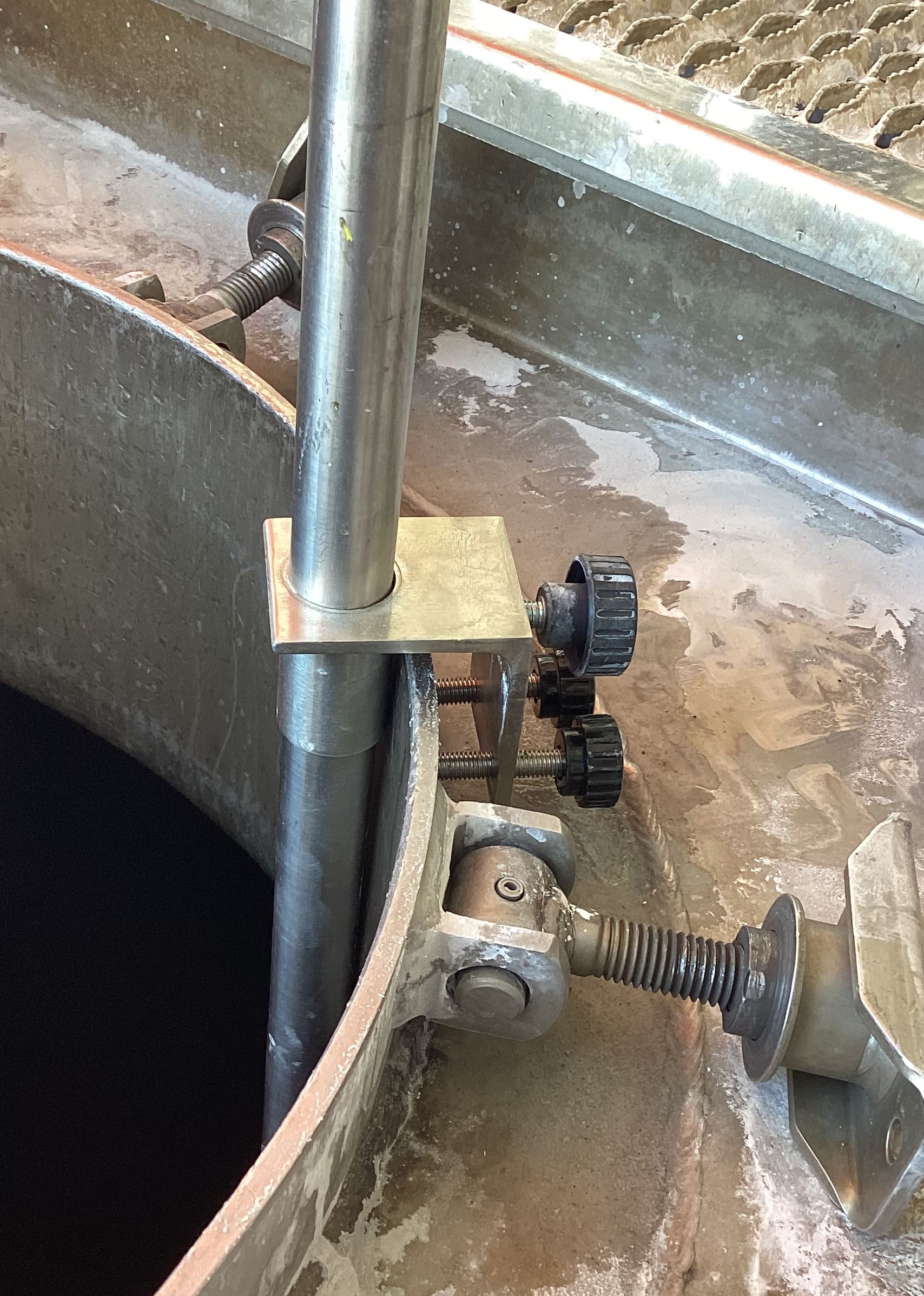

The RIM MOUNTING BRACKET allows easy mounting of tank alarms on the rim of an open tank with thumbscrews.

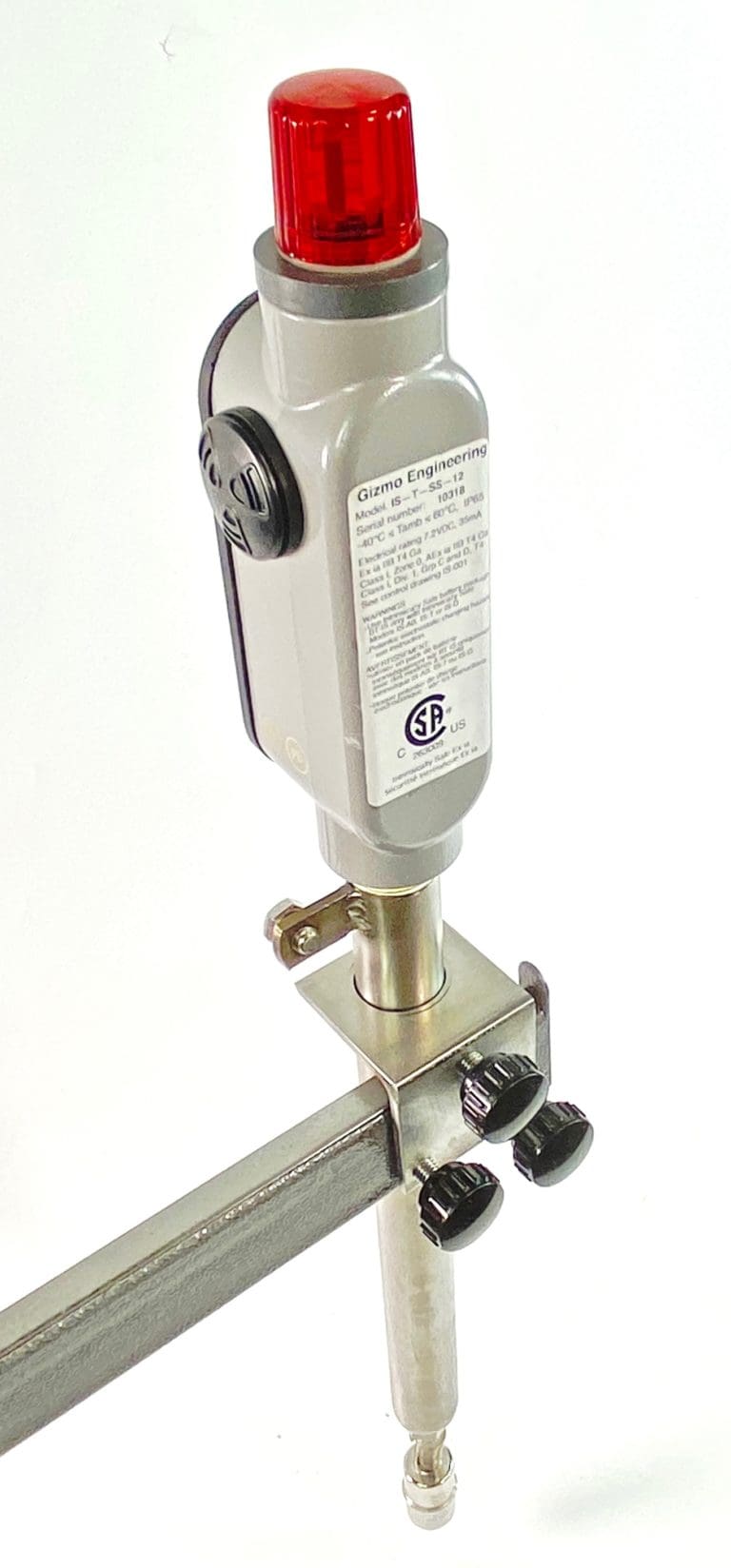

WITH TANK ALARM

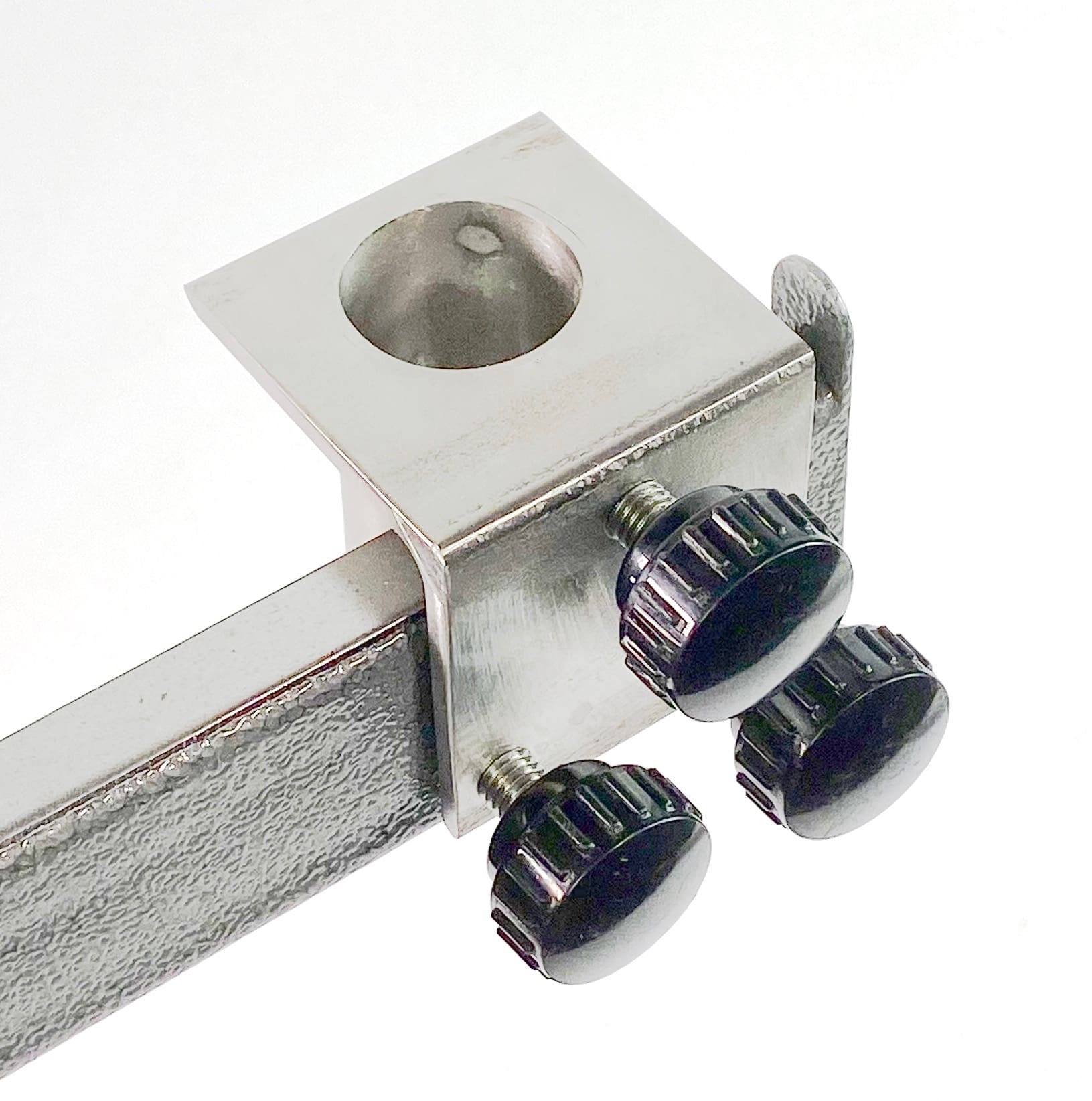

The Stainless steel rim-mounting bracket allows easy mounting of our stainless steel tank alarms and level probes. The bracket mounts over the lip of a tank and tightens into place with the two thumbscrews on the flat of the angle.  Then tank alarm slips into the hole and is tightened to the correct depth with a third thumbscrew. (perpendicular to the tank alarm shaft)    Maximum tank lip width (or throat depth) is 13 mm [1/2 inch].

 These are useful when quick adjustment is desired, or when inserting a single tank alarm into multiple tanks. Each tank can have its own bracket to quickly accept a tank alarm.

One caveat is that a float guard on the tank alarm will not slip into the rim-mount bracket so these are only for tank alarms without float guard.

SPECIFICATIONS

Thumbscrew threads……………304SS, M10
Thumbscrew Knob……………….Phenolic resin
Throat depth……………………….25 mm [1″]
Bracket width………………………50 mm [2″]
Bracket Height…………………65 mm [2.5″]
Bracket Thickness……………  3/16″
Bracket material…………………304 Stainless

Order Here

Stainless Rim Mount

Bracket secures a tank alarm to the rim of an open tank.
$95
[MB-SS]
