The miniature timer relay will schedule devices to turn on and off according to the schedule you set. Your smart phone is used as a convenient interface to set the programming. After that, the phone is not needed to maintain the timing schedule. However it can be accessed, controlled and monitored remotely from any place where the user has internet.
The time is automatically maintained with up to the second accuracy over existing WIFI, so no need to ever worry about time drift and adjustments. No recurring fees!
It can be programmed to turn on and off any number of times per day. It can keep complex schedules to accommodate shift work or weekends.

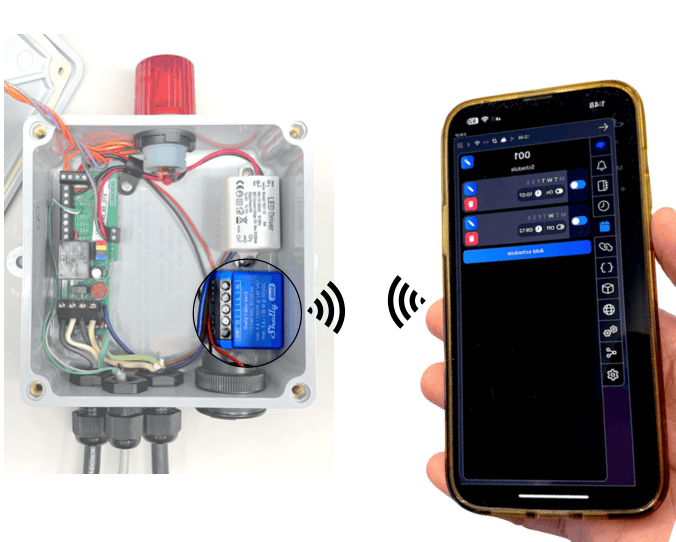

Compact enough to fit in almost any of our products.
The phone interface setup takes about 5 minutes.
INSTRUCTIONS
The Device can be
accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet. The Device has an embedded web interface that you can use to monitor, control the Device, and adjust its settings. The web interface is accessible at http://192.168.33.1 when you are connected directly to the Device access point or at its IP address when you and the Device are connected to the same network.
Specification of the WIFI miniature relay timer

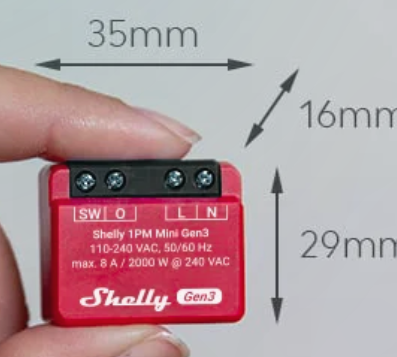

• Dimensions (HxWxD): 29x34x16 mm / 1.34×1.11×0.63 in
• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity 30 % to 70 % RH
• Max. altitude 2000 m / 6562 ft
• Power supply: 110 – 240 VAC, 50/60Hz • Electrical consumption: < 1.2 W
• Max. switching voltage: 240 VAC
• Max. switching current AC: 8 A• Power metering: Yes
• Overpower protection: Yes
• Overcurrent protection: Yes
• Overvoltage protection: Yes
• Overtemperature Protection: Yes
• RF band: 2400 – 2495 MHz
• Max. RF power: < 20 dBm
• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi operational range (depending on local conditions):- up to 50 m / 160 ft outdoors- up to 30 m / 100 ft indoors
• Bluetooth protocol: 4.2
• Bluetooth operational range (depending on local condi-tions):
– up to 30 m / 100 ft outdoors – up to 10 m / 33 ft indoors
• Flash: 8 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook • Scripting: Yes
MQTT: Yes
Order Here
Timed Relay Module
Sends a relay output. Time is maintained using existing WIFI. More info.
[RLY-S8] $75
