RINSE TANK TIMER automatically flushes plating rinses.
TIMER MODELT2
A Better Rinse Tank Timer…
- Loud warbling alarm easily pierces through the loudest loud industrial plant noise.
- Waterproof. All parts are NEMA 4X rated. Built for rugged industrial service.
- Relay output 15A will control 1/2 HP motors, solenoids, heaters.
- Time is easily adjustable.
- Compact -only 4×4 inches.
- Rinse tank control with a timer easier and more reliable than with a conductivity controller. See NMFRC magazine article.
OPERATION
When your plating rack is dipped into a tank, press the button to start the countdown. When the set time counts down, the buzzer sounds and the front button flashes. When the operator shuts off this alarm, a rinse cycle is automatically started for the set time. After the set time the solenoid closes automatically and the timer is ready for the next cycle.
SETUP
The dip time and rinse times are set with rotary DIP switches.
The solenoid can open either after the rack is removed, or when the rack enters the tank. (see chart in the tab below for the exact behavior of the operating modes)
SOLENOID VALVE
A piggyback plug with 10 ft cord is provided to plug in your solenoid valve. Alternatively, we can supply the solenoid valve pre-wired to the timer with 10 foot cord standard. The order box below offers Asco Red Hat because it is very moreorless an industry standard, but more economical is the Brand US Solid which is by request.
CONSTRUCTION

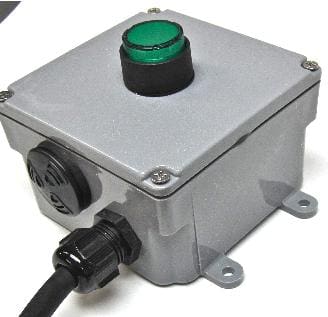

Timer model T2 is enclosed in a waterproof and corrosion proof PVC box 4 x 4 x 2″ with stainless steel screws. Rated NEMA 4X – can be washed down. In addition, the buzzer has a warbling tone at 103 dB volume that pierces through loud ambient noise.
Here is a chart the displays the operation logic for each mode.
Ingress rating……………….IP65
Power input…………………120VAC
Enclosure material………..PVC
Enclosure dimensions…..4x4x2″
Power consumption……..30mA (when alarming)
Pushbutton diameter……22mm
Cord type………………………SJOOW
Not Available to Order
This is a legacy product and not available. This timer is superseded by the T5 and T6 timers which have this same function.
